Can wire spiral hoses be used for steam applications?
As a wire spiral hose supplier, I often encounter questions from customers regarding the suitability of our products for various applications, including steam. This blog post aims to provide a comprehensive analysis of whether wire spiral hoses can be used for steam applications, taking into account factors such as material compatibility, temperature and pressure ratings, and industry standards.
Material Compatibility
The first consideration when determining if a wire spiral hose can be used for steam is the material compatibility. Steam is a high - energy fluid that can cause significant degradation to certain materials. The inner tube of a wire spiral hose is in direct contact with the steam, so it must be made of a material that can withstand the high temperatures and chemical properties of steam.
Common materials for the inner tube of wire spiral hoses include synthetic rubber compounds such as nitrile rubber (NBR), ethylene propylene diene monomer (EPDM), and fluorocarbon rubber (FKM). Among these, EPDM is often a good choice for steam applications. EPDM has excellent heat resistance, withstanding temperatures up to around 150 - 180°C (302 - 356°F) depending on the formulation. It also has good resistance to steam oxidation and hydrolysis, which are common forms of degradation in steam environments.
On the other hand, NBR has limited heat resistance and is not suitable for high - temperature steam applications. FKM, while having excellent heat and chemical resistance, can be relatively expensive. So, when considering steam applications, it is crucial to select a wire spiral hose with an EPDM inner tube or a material specifically designed for steam service.
Temperature and Pressure Ratings
Steam applications typically involve high temperatures and pressures. Wire spiral hoses are rated for specific temperature and pressure ranges, and it is essential to ensure that these ratings are suitable for the steam application.
The temperature rating of a wire spiral hose depends on the materials used in its construction, especially the inner tube and the outer cover. As mentioned earlier, EPDM inner tubes can handle relatively high temperatures. However, the outer cover also needs to be able to withstand the heat. A heat - resistant outer cover material, such as a special heat - resistant rubber or a synthetic polymer, can help protect the hose from external heat sources and prevent damage.

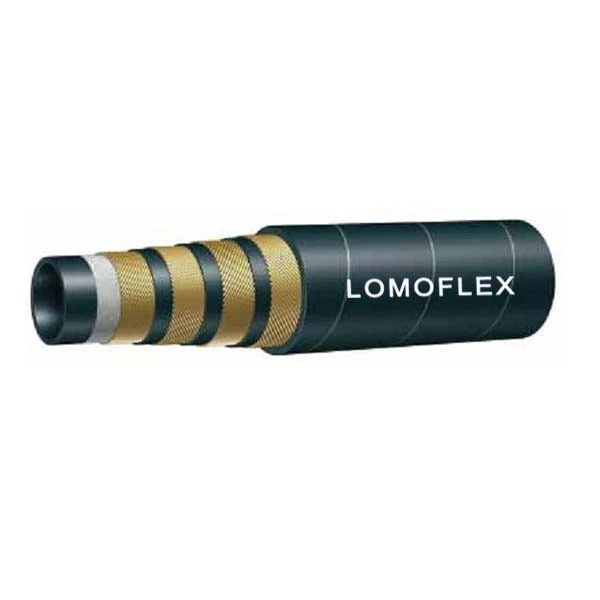

In terms of pressure ratings, steam systems can operate at a wide range of pressures. Wire spiral hoses are designed to handle different pressure levels, with the number of wire spirals and the thickness of the hose wall influencing the pressure - handling capacity. For high - pressure steam applications, hoses with multiple wire spirals, such as Din En856 4sp and Din En856 4sh, are often more suitable. These hoses are constructed with four layers of wire spirals, providing enhanced strength and pressure resistance compared to hoses with fewer spirals.
The Sae100 R13 is another type of wire spiral hose that may be considered for steam applications. It has a specific pressure and temperature rating, and its design is optimized for certain industrial applications. When selecting a hose for steam, it is important to match the pressure and temperature requirements of the steam system with the ratings of the hose.
Industry Standards and Regulations
There are various industry standards and regulations that govern the use of hoses in steam applications. These standards ensure the safety and reliability of the hoses. For example, in Europe, the EN standards provide guidelines on the design, construction, and performance of hoses. In the United States, the SAE standards are widely used.
Compliance with these standards is crucial when using wire spiral hoses for steam applications. Hoses that meet the relevant standards are more likely to be safe and reliable. For instance, a hose that meets the EN standards for steam applications will have been tested for factors such as burst pressure, temperature resistance, and chemical compatibility.
Advantages of Using Wire Spiral Hoses for Steam
If the right wire spiral hose is selected for steam applications, there are several advantages. Firstly, wire spiral hoses offer excellent flexibility compared to rigid piping systems. This flexibility allows for easier installation in tight spaces and can accommodate movement and vibration in the steam system.
Secondly, wire spiral hoses can be customized to meet specific requirements. We can provide hoses in different lengths, diameters, and end fittings to suit the needs of the steam application. This customization ensures that the hose fits perfectly into the system and performs optimally.
Thirdly, wire spiral hoses are generally more cost - effective than some alternative solutions, especially for smaller - scale steam systems. They require less installation time and labor compared to rigid piping, which can result in cost savings.
Limitations and Considerations
However, there are also some limitations and considerations when using wire spiral hoses for steam. One of the main limitations is the potential for degradation over time. Even with the right materials, steam can cause wear and tear on the hose, especially at high temperatures and pressures. Regular inspection and maintenance are essential to detect any signs of damage, such as cracking, blistering, or loss of flexibility.
Another consideration is the potential for steam leaks. A proper installation with the correct end fittings is crucial to prevent leaks. Leaks not only waste steam but can also pose a safety hazard. It is important to ensure that the end fittings are properly crimped or assembled and that the hose is installed according to the manufacturer's instructions.
Conclusion
In conclusion, wire spiral hoses can be used for steam applications, but careful selection is required. The material compatibility, temperature and pressure ratings, and compliance with industry standards are all important factors to consider. By choosing a wire spiral hose with an appropriate inner tube material, such as EPDM, and matching the hose's ratings to the requirements of the steam system, we can ensure a safe and reliable solution.
If you are in need of wire spiral hoses for steam applications or have any questions about our products, we encourage you to contact us for a detailed discussion. Our team of experts can help you select the right hose for your specific needs and provide guidance on installation and maintenance.
References
- "Handbook of Industrial Hoses" - A comprehensive guide on the types, applications, and performance of industrial hoses.
- EN standards for hoses in Europe, which provide detailed specifications for hose design and performance.
- SAE standards for hoses in the United States, which are widely recognized in the industry.
