Din En856 4sh

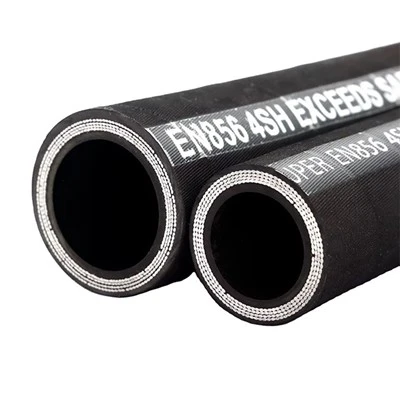

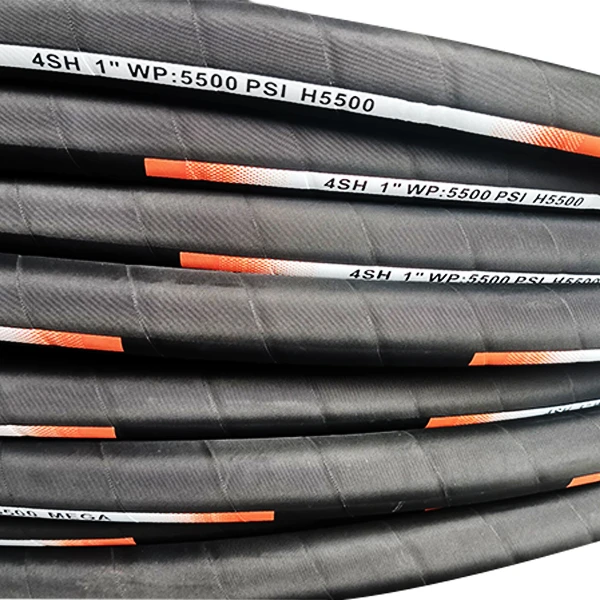

DIN EN 856 4SH
Structure: it is composed of three parts: tube, reinforcement and cover.
Tube: black synthetic rubber, making the hose resistant to abrasion, corrosion and oil.
Reinforcement: four layers of high tensile and high strength spiraled steel wire, making the hose highly resistant to high pressure.
Cover: high quality black synthetic rubber, making the hose resistant to abrasion, corrosion, weather, ozone, cut, oil and aging.
Working temperature: -40 °C to +100 °C.

Send Inquiry

Description

CONSTRUCTION:

DIN EN 856 4SH shall consist of an inner tube of oil resistant synthetic rubber,four spiral plies of steel wire wrapped in alternating directions,and an oil and weather resistant synthetic rubber cover.

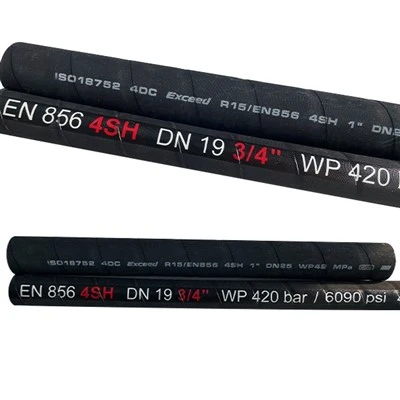

DIN EN 856 4SH Wire Spiral Hydraulic Hose

SIZE		SAE	I.D		W.D		O.D		W. P		P.P		B.P		min B.R		W.T
mm	inch	Dash	Min	Max	Min	Max	Min	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
19	3/4	-12	18.6	19.8	27.6	29.2	31.4	33.0	42	6090	84	12180	168	24360	11.02	280	1.70
25	1	-16	25.0	26.4	34.4	36.0	37.5	39.9	38	5510	76	11020	152	22040	13.39	340	2.50
31.5	1 1/4	-20	31.4	33.0	40.9	42.9	43.9	47.1	32.5	4710	65	9425	130	18850	18.11	460	3.00
38	1 1/2	-24	37.7	39.3	47.8	49.8	51.9	55.1	29	4205	58	8410	116	16820	22.05	560	3.60
51	2	-32	50.4	52.0	62.2	64.2	66.5	69.7	25	3625	50	7250	100	14500	27.56	700	5.00

APPLICATIONS:

The DIN EN 856 4SH hydraulic hose is a high-pressure hose designed for use in hydraulic systems where strength and durability are critical. The "4SH" designation indicates that the hose has four high-tensile steel wire layers for extra strength and pressure resistance. This hose is an upgrade from the 4SP version, providing even greater resistance to pulsation and flexibility.

The DIN EN 856 4SH hydraulic hose is often used in applications where the hose is subjected to high levels of pressure and where the hose needs to maintain its flexibility and durability over time. It is important to follow the manufacturer's recommendations for installation, maintenance, and compatibility with specific fluids to ensure the hose operates safely and effectively within its designed parameters.

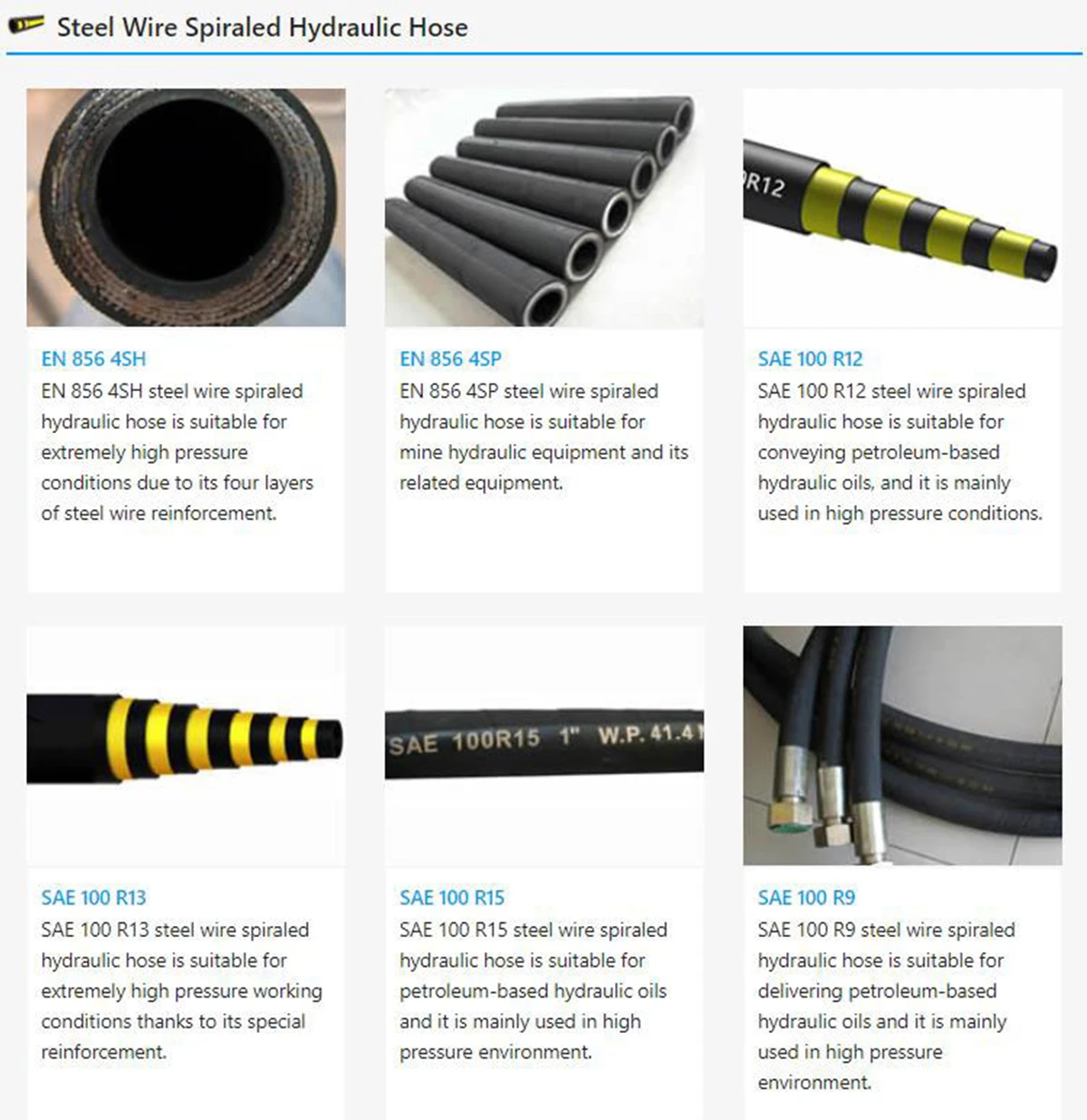

steel wire spiraled hydraulic hose

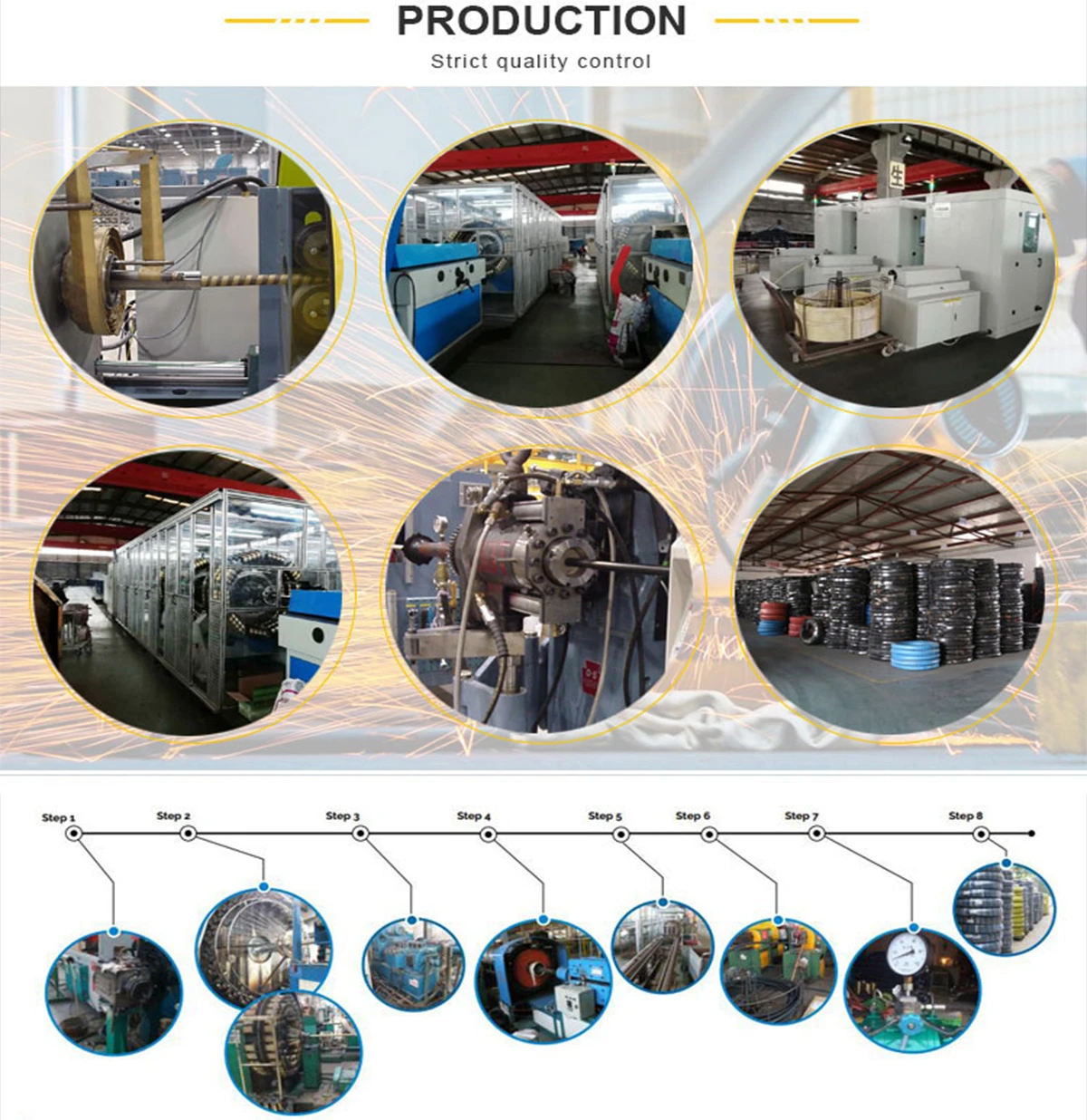

hydraulic hoses made near me

hot sale hyd hose

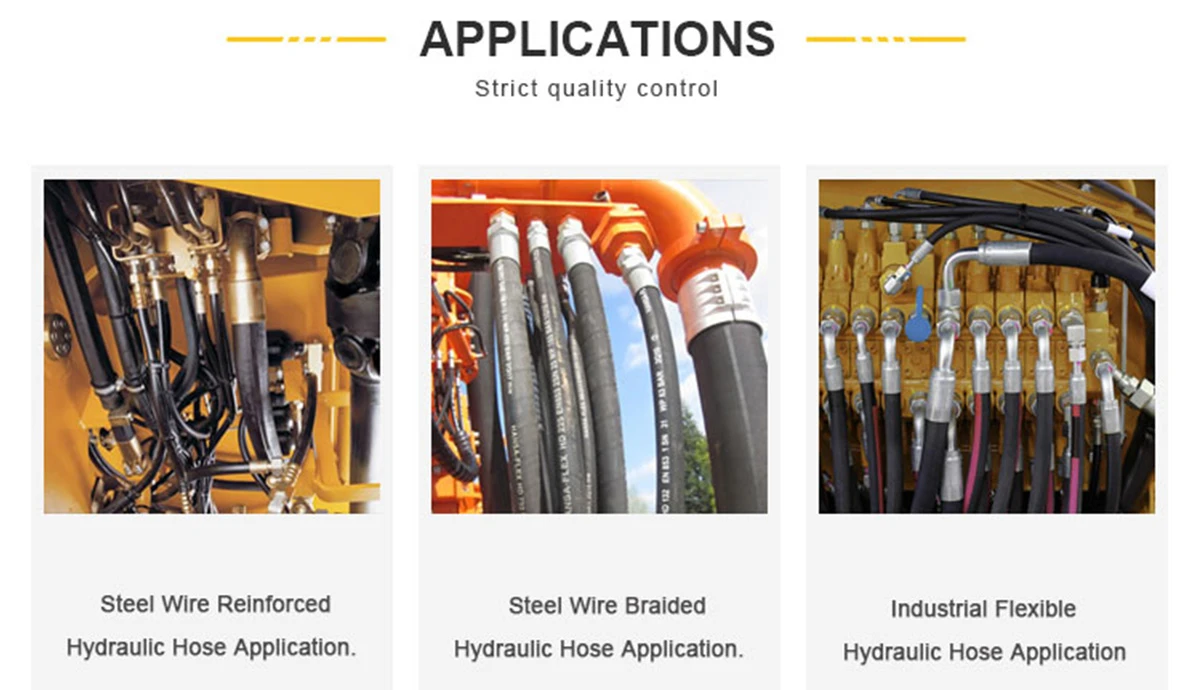

hose applications

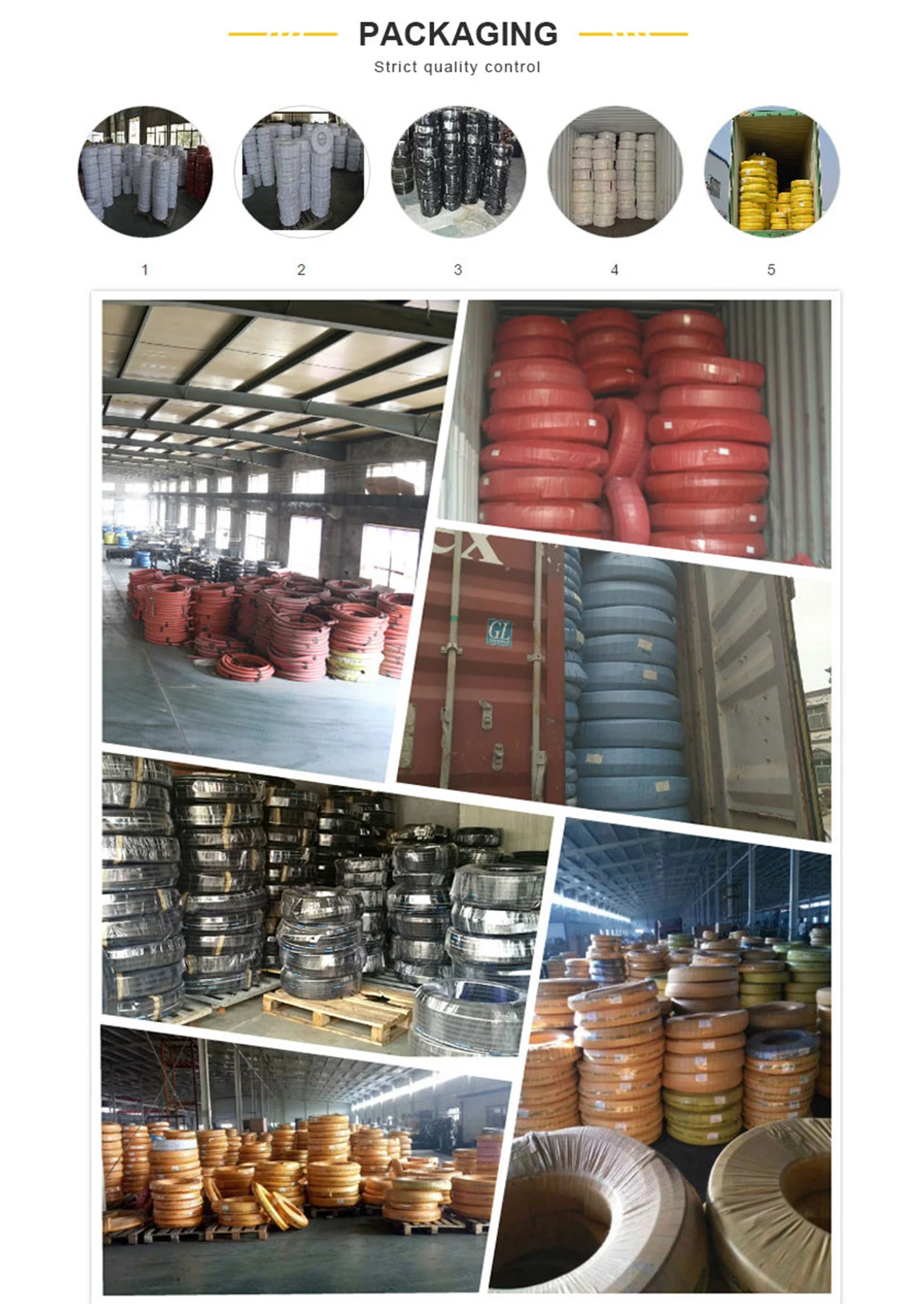

hose package
