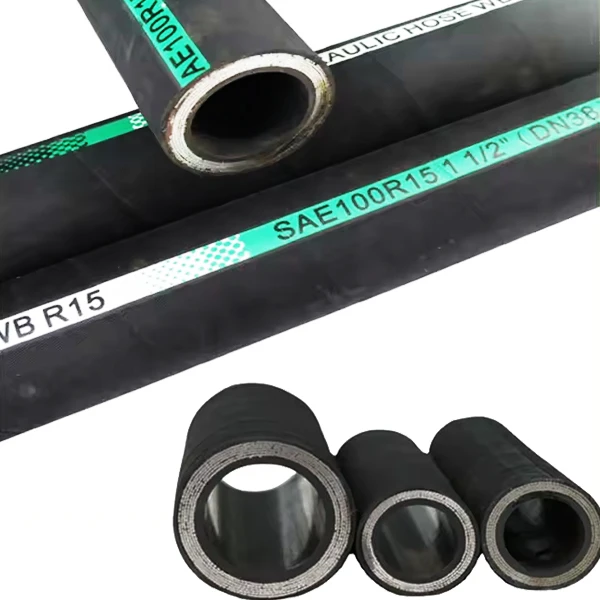

Sae100 R15

Construction of SAE 100 R15
Tube: Oil resistant synthetic rubber
Reinforcement: Four or six high tensile steel wire spiral layers
Cover: Abrasion, ozone and weather resistant synthetic rubber
Temperature: -40°C to +121°C
Application: Petroleum based hydraulic fluid, gasoline, water, diesel fuels, lubricating oils, glycol, mineral oils, and more.

Send Inquiry

Description

CONSTRUCTION:

This hose shall consist of an inner tube of oil resistant synthetic rubber, multiple spiral plies of heavy steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover. A ply or braid of suitable material may be used over or within the inner tube and/or over the wire reinforcement to anchor the synthetic rubber to the wire.

SIZE		SAE	I.D		W.D	O.D	W.P		P.P		B.P		min B.R		W.T
mm	inch	Dash	Min	Max	Max	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
10	3/8	-6	9.3	10.1	20.3	23.3	42	6090	84	12180	168	24360	5.91	150	0.80
13	1/2	-8	12.3	13.5	24.0	26.8	42	6090	84	12180	168	24360	7.87	200	0.95
19	3/4	-12	18.6	19.8	32.9	36.1	42	6090	84	12180	168	24360	10.40	265	1.85
25	1	-16	25.0	26.4	38.9	42.9	42	6090	84	12180	168	24360	13.00	330	2.90
32	1 1/4	-20	31.4	33.0	48.4	51.5	42	6090	84	12180	168	24360	17.52	445	4.20
38	1 1/2	-24	37.7	39.3	56.3	59.6	42	6090	84	12180	168	24360	20.87	530	5.60

APPLICATIONS:

The SAE 100R15 hydraulic hose is a high-pressure, four-spiral wire reinforced hose designed for extremely high-pressure applications. It is one of the most robust and durable hoses in the SAE 100R family, intended for use in demanding industrial, agricultural, and construction settings where the hose must withstand severe operating conditions.

Key features and specifications of the SAE 100R15 hydraulic hose include:

- **Pressure Rating**: The hose is rated for working pressures that typically range from 4,000 to 6,000 psi (275 to 420 bar), depending on the hose size and manufacturer.

- **Construction**: The hose consists of a synthetic rubber inner tube that is compatible with a wide range of hydraulic fluids, a reinforcement layer made up of four high-tensile steel wire spirals for pressure resistance, and an outer cover of synthetic rubber for protection against environmental factors such as ozone, UV rays, and abrasion.

- **Applications**: It is suitable for use in very high-pressure hydraulic systems in industries such as construction, mining, agriculture, and industrial equipment where the hose may be exposed to high pressure, shock, and vibration.

- **Abrasion Resistance**: The hose is designed to have excellent resistance to abrasion, which is important for applications where the hose may come into contact with rough surfaces or be subjected to harsh environmental conditions.

- **Chemical Resistance**: The materials used in the hose are selected for their resistance to a wide range of hydraulic fluids, including mineral oils, biodegradable fluids, and certain types of synthetic fluids.

The SAE 100R15 hydraulic hose is known for its exceptional resistance to pulsation, which makes it suitable for applications with high vibration or shock. It is also designed to maintain its flexibility even under high pressure, which can make it easier to install and maneuver in tight spaces.

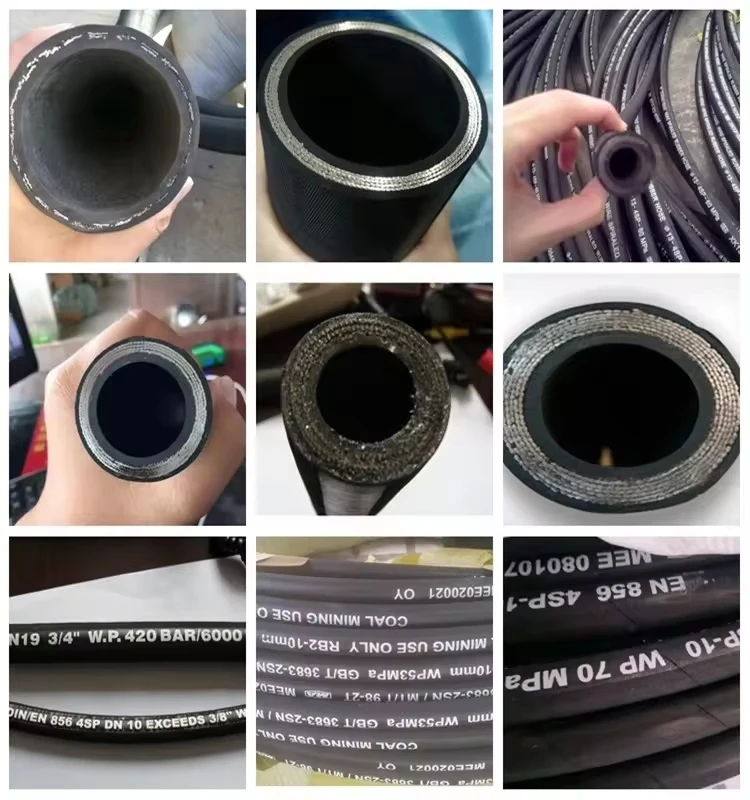

hyd hoses 1001
