Industrial Hose Assembly

Your Professional Industrial Hose Assembly Supplier！

Lomoflex CO., LTD founded in 2011. Our factory is committed to developing and manufacturing hose fittings, hydraulic fittings, hose assemblies and other related products that are widely used in mining, machinery, transportation, ships, oil fields and other fields. Is a leading manufacturer and supplier of hydraulic hose fittings in China.

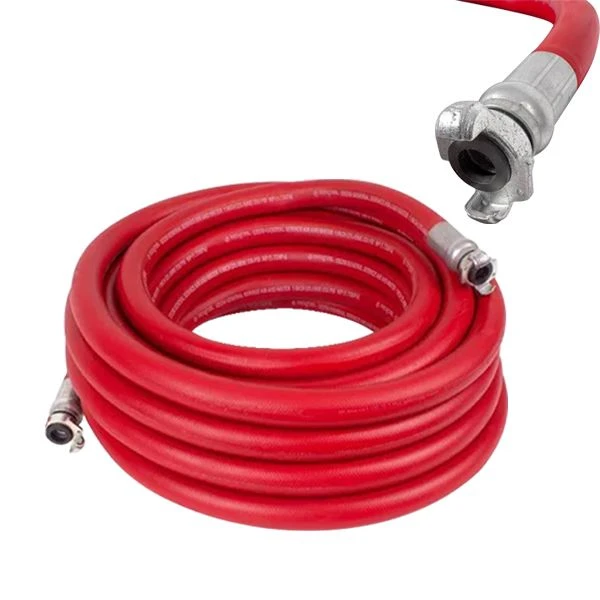

Air Hose Assembly

Air and Fluid Hose Assembly. Standard: SAE J1402/DIN 74310. Size Range. 1/4;3/8;1/2;3/4. Material: NBR. Color: black, blue, red. Application: Pneumatic Braking System. Transport Package: Carton;

Add to Inquiry

Why Choose Us

Professional Team

We have R&D team with capability of indenpendently researching, designing, and developing hydraulic systems to meet different customization demandsWorking with simple and complex hydraulic applications, you will always have special needs.

Custom Service

We provide service and solution tailored to your needs. We make it happen, from an "idea" to an "application". Or alternatively, we welcome your drawings and designs.

Sales Market

At present, our products are gaining a leading position in our local domestic market. We also export to many countries and regions such as North America, South America, Europe, Southeast Asia, the Middle East, Africa and other strategic locations world-wide.

Industrial Hose Assembly - Overview

An industrial hose assembly is a ready-to-use, completed unit consisting of an industrial hose with attached fittings, designed to transport materials like air, water, steam, chemicals, or petroleum in harsh industrial environments. These assemblies include the inner hose tube, fabric or wire reinforcement layers for pressure resistance, a protective cover, and a fitting on each end for connection to machinery or equipment. Fittings are permanently attached to the hose, often by crimping, to ensure a secure and reliable connection for specific applications.

Airline Hose Length (Imperial)	25 ft
Airline Hose Length (Metric)	7.62 m
CFM Capacity per Minute	50 CFM, 100 CFM
Case Quantity	1
Compatible With	W-3000 Series Hoses, Hose 3M W-9435; Breathing Tube BT-30; Hoods Versaflo: S-657; S-855 and S-857; Helmets Versaflo: M-106; M-306 and M-407.
Fitting Type	Schrader, Industrial Interchange
Hose Type	Straight, Coiled
Material	Nylon, Rubber
Pressure Type	High, Low
Product Color	Blue, Red
Product Type	Air Hose
Recommended Application	Blasting, Painting, Assembly & Mechanical, Metal Repair, Cleaning, Composite Finishing, Welding, Paint Preparation, Final Finish
Recommended Industry	Transportation, Marine, General Manufacturing
Smallest Saleable Unit	Each, Bag
Supplied Air Respirator Style	Versaflo™ AP-600 Portable Panels, W-Series Fixed Panels, MST Portable and Fixed Panels, Low-Pressure Portable Ambient Air Pump
Dimensions and Classifications
Overall Length (Imperial)	25 ft, 50 ft, 100 ft
Overall Length (Metric)	7.62 m, 15.24 m, 30.48 m

Product Advantages

Improved Efficiency
Industrial hoses and fittings are designed to handle a wide range of fluids and materials, making them versatile and adaptable to different situations. By using the right type of hose and fitting for a specific application, companies can ensure smoother and more efficient operations.

Enhanced Safety
Safety is a top priority in any industrial setting, and the use of high-quality hoses and fittings can help prevent accidents and injuries. Industrial hoses and fittings are designed to withstand high pressures, temperatures, and corrosive materials, reducing the risk of leaks, ruptures, and other failures.

Cost Savings
While the initial investment in industrial hoses and fittings may seem significant, using high-quality components can lead to long-term cost savings. Cheap or poorly made hoses and fittings are more likely to fail prematurely, leading to costly repairs, replacements, and downtime. By investing in durable, reliable hoses and fittings, companies can avoid these expenses and ensure smooth operations.

Flexibility and Durability
Industrial hoses and fittings are available in a variety of materials, sizes, and configurations to meet the specific needs of different applications. Whether you need to transport water, chemicals, abrasive materials, or high-pressure steam, there is a hose and fitting combination that can handle the job.

Fittings Types

Your hose and assembly will need to seal, and your choice is also part of the fittings. The three major types are:

O-ring

Excellent for high-pressure applications, preventing leaks. The component's threads pull the fitting against the port. This traps the O-ring to flatten it, forming a snug seal.

Mating angle

The seal occurs when two different angles are wedged together. These fittings are sealed with straight or parallel threads.

Tapered threads

These come in male and female threads. When they're threaded together, the tapered threads deform. This puts pressure on the couplings, which form a tight seal. These fittings are prone to leaking due to over-torquing. They're also not precise, but do not use tape to compensate. Tape tends to shred, causing contamination.

Application

Manufacturing

Operate pneumatic tools, assembly lines, and robotic arms.

Automotive

Air tools used in painting, repairing, and tire inflation.

Construction

Powering heavy-duty pneumatic tools like jackhammers and drills.

Agriculture

Handling air seeding, and pneumatic transport systems.

Materials of Core Tube

Silicone

Silicone cores have become the material of choice for sanitary applications due to their flexibility and cleanliness. A typical temperature range for silicone extends from –65°F to 500°F (–53°C to 315°C).

Fluoropolymer

Fluoropolymer core tubes are very widely used and quickly replacing silicone as the material of choice for sanitary applications. PTFE, PFA, and FEP are three common fluoropolymers with a typical temperature range from –65°F to 450°F (–53°C to 230°C).

Thermoplastic (Nylon)

Thermoplastic, or nylon, core tubes are often chosen for hydraulic applications. They can withstand high pressures and have a typical temperature range from –40°F to 200°F (–40°C to 93°C). Available in diameter sizes up to one-inch, thermoplastic core materials are regarded as good economical, general purpose hoses and can handle pressure impulses better than metal and Fluoropolymer core hoses.

Rubber

Rubber core hoses are economical, general purpose hoses with a typical temperature range like that of thermoplastic. Rubber hoses have the ability to be crushed without permanent damage and can be built with little to no special equipment. They are also available in diameter sizes above two inches—larger than their counterparts.

Process of Industrial Hose Assembly

A hydraulic hose is one piece of the puzzle within a hydraulic hose assembly. A hydraulic hose assembly actually consists of a hose and fittings. These fittings are what connect the hose to the other components within a hydraulic system.

Collar Insert: Hose collar on a hoseFirst, the technician inserts a hose collar onto one end of the hose. The job of the collar is to hold the whole assembly in place. The technician twists the collar on until the hose is just short of the inside rim of the collar, to leave room for the hose to expand.

Hose Measurement and Cutting: Measuring Hydraulic HoseNext, the technician measures the hose to the required length, and cuts back to the center of the collar, as the fitting will provide that additional length.

Projectile Cleaning: Shooting projectile through hoseThe hose gets cut on a chop saw and immediately after has a projectile shot through it. The purpose of the projectile is to clean any debris that may have entered into the hose due to the chop saw. After this, the hose is considered to be “ultra clean.”

Fitting Identification and Insertion: The proper fittings must be identified. Once identified, lubricants are applied to the threads of the fitting insert. Applying lubricant allows the fitting to be inserted easily and evenly, without marring or damaging the inner liner of the hose. The fitting should start to thread in easily.

Finishing the Hose: Threading a fitting with machineThen, a high-torque machine is used to thread in the insert the rest of the way. The same procedure will be performed on the other end of the hose, with the other fitting.

Package & Delivery

Package: Standard export package
Delivery: By air express, by sea

productcate-1-1

FAQ

Q: What does hose assembly mean?

A: A hydraulic hose assembly actually consists of a hose and fittings. These fittings are what connect the hose to the other components within a hydraulic system.

Q: What is the manufacturing process of a hose?

A: When it comes to manufacturing radiator hoses, the inner liner (of EPDM) is extruded first, then this “tube” is reinforced by a layer of knitted fabric (such as polyester, rayon or Kevlar) and covered by an outer layer of EPDM. Next, the hose is cooled in water and cut into lengths.

Q: What is the PSI rating of a hose?

A: PSI refers to pounds per square inch, and this determines the speed at which water is passed through the hose. The average pressure from a home water faucet is about 40 to 60 PSI, but it can be as high as 80 PSI. In some cases, homeowners have to install regulators to reduce the PSI.

Q: What is the thing called where you connect a hose?

A: The part of the hose you connect to a tap or faucet is typically called a hose connector, or more specifically, a hose coupling. It can also be referred to as a tap adaptor or hose bib. If it's a quick connection, it might be called a quick connect fitting.

Q: Are you manufacturer or trading company?

A: We are manufacturer.

Q: What's your best delivery time?

A: Within 15-30 days.

Q: What is the quality control of your product?

A: Follow strictly quality control measures for implementation,

Q: Will your company provide free sample?

A: It depends on which sort of item you want to get. Some can be provided free of charge, however, the client shall assume the shipping fees himself.

Q: Is OEM open to clients?

A: Yes, we can provide both OEM and ODM service.

Q: How can our company be your distribution partner?

A: We welcome you to be our distributor. For further details, please contact us.

Q: What is the payment of sample?

A: T/T and Alipay both acceptable.

Q: What is your packing?

A: Yes, our packaging is genuine original packaging. Of course, we can also provide neutral packaging or according to your requirements

Q: What is your sample policy?

A: If we have stock, we can provide samples, but the customer must pay the sample fee and express fee Question

Q: Have you tested all your goods before shipment?

A: Yes, we will conduct 100% test before delivery, and we will send detailed photos of parts for your approval Question .

Q: How can you maintain a long-term good relationship with our business?

A: We maintain good quality and competitive prices to ensure the interests of our customers.

As one of the most professional industrial hose assembly manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to wholesale industrial hose assembly in stock here and get quotation from our factory. Contact us for customized service.
