Your Professional Hydraulic Hose Fittings Supplier！
Lomoflex CO., LTD founded in 2011. Our factory is committed to developing and manufacturing hose fittings, hydraulic fittings, hose assemblies and other related products that are widely used in mining, machinery, transportation, ships, oil fields and other fields. Is a leading manufacturer and supplier of hydraulic hose fittings in China.
22611 BSP Female 60° Cone Hose FittingSeal type: 60°cone seat on the female mandrel;mated 60°chamfer on the BSPP male fittings;Thread type: BSPP thread standard;Tail type: swaged; mated with corresponding ferrule to be crimped;Material:
Add to Inquiry

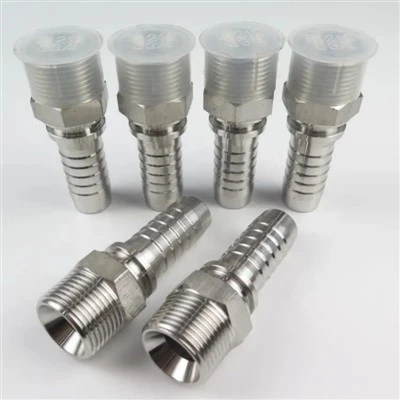

12611 BSP Male 60° Cone Seat Hose FittingBSP 60 Degree Cone Seal FittingPart No.: 12611/ 12611-RWAvailable Material: Steel & Zinc Plated, Brass, Stainless Steel
Add to Inquiry
26711 JIC Female 74° Cone Seat Hose FittingJIC FEMALE 74° CONE SEAT SAE J514 HYDRAULIC FITTING
Add to Inquiry
24291 90° ORFS Female Flat Seat FittingPart No.: 24291/ 24291-T/ 24291-WMaterial: Stainless steel/carbon steelPackage: Carton Box+Wooden PalletUsage: Machinery Hydraulic SystemCertificate: ISO9001:2015Quality: 100% InspectedSurface
Add to Inquiry
24211 ORFS Female Hydraulic Hose FittingORFS FEMALE FLAT SEAT (ISO 12151-1-SAE J516)
Add to Inquiry
16711 JIC MALE 74° CONE SEAT FITTINGMaterial:Carbon steel , Stainless steel etcColor:Silver or YellowOEM:Accept OEM
Add to Inquiry
20241 45° Metric Female Flat Seal Fitting20241 45 DEGREE METRIC FEMALE FLAT SEAT HOSE FITTING
Add to Inquiry
20491 90° Metric Female 24°Cone O-ring Seal Fitting90° Metric Female 24°Cone O-ring L.T./H.T. Seal Fitting
Add to Inquiry
Why Choose Us
Professional Team
We have R&D team with capability of indenpendently researching, designing, and developing hydraulic systems to meet different customization demandsWorking with simple and complex hydraulic applications, you will always have special needs.
Custom Service
We provide service and solution tailored to your needs. We make it happen, from an "idea" to an "application". Or alternatively, we welcome your drawings and designs.
Sales Market
At present, our products are gaining a leading position in our local domestic market. We also export to many countries and regions such as North America, South America, Europe, Southeast Asia, the Middle East, Africa and other strategic locations world-wide.
Hydraulic Hose Fittings - Overview
Hydraulic hose fittings are specialized connectors that securely join hydraulic hoses to hydraulic components like pumps, valves, and actuators, enabling the leak-free transmission of high-pressure fluids in a hydraulic system. These components ensure the safe and efficient operation of machinery by containing and directing fluid flow, and come in a variety of types and sizes designed for specific applications and pressure ratings, including JIC, ORFS, and NPT fittings.
Product Specification
We offers the 22641Cone Hose Fitting specifications：
|
RT NO. |
THREAD E |
HOSE BORE |
DIMENSIONS |
||||
|
DN |
DASH |
A |
C |
H |
S2 |
||
|
22641-04-04 |
G1/4"X19 |
6 |
4 |
42.3 |
5.5 |
20.2 |
19 |
|
22641-06-04 |
G3/8"X19 |
6 |
4 |
43.2 |
6.3 |
21 |
22 |
|
22641-06-05 |
G3/8"X19 |
8 |
5 |
45.3 |
6.3 |
22 |
22 |
|
22641-06-06 |
G3/8"X19 |
10 |
6 |
46.9 |
6.3 |
22.6 |
22 |
|
22641-08-08 |
G1/2"X14 |
12 |
8 |
61.1 |
7.5 |
26.1 |
27 |
|
22641-10-08 |
G5/8"X14 |
12 |
8 |
61.4 |
9.5 |
26.5 |
30 |
|
22641-10-10 |
G5/8"X14 |
16 |
10 |
72.6 |
9.5 |
27.8 |
30 |
|
22641-12-10 |
G3/4"X14 |
16 |
10 |
73 |
10.9 |
28.2 |
32 |
|
22641-12-12 |
G3/4"X14 |
20 |
12 |
79.2 |
10.9 |
31.8 |
32 |
|
22641-16-16 |
G1"X11 |
25 |
16 |
88.4 |
11.7 |
34.2 |
41 |
|
22641-08-06T |
G1/2"X14 |
10 |
6 |
48.1 |
7.5 |
23.9 |
27 |
|
22641-12-08T |
G3/4"X14 |
12 |
8 |
61.8 |
10.9 |
26.9 |
32 |
|
22641-16-12T |
G1"X11 |
20 |
12 |
80.8 |
11.7 |
33.4 |
41 |
|
22641-20-16T |
G1.1/4"X11 |
25 |
16 |
85.3 |
11 |
31.1 |
50 |
|
22641-20-20W |
G1.1/4"X11 |
32 |
20 |
98.8 |
11 |
38 |
50 |
|
22641-24-24W |
G1.1/2"X11 |
40 |
24 |
116.8 |
13 |
45.5 |
55 |
|
22641-32-32W |
G2"X11 |
50 |
32 |
135.7 |
16 |
52.7 |
70 |
|
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22642-xx-xx |
|||||||
Advantages of Hydraulic Hose Fittings
01
Strong Seal
The primary benefit is the robust and enduring connection it offers, which is less prone to leaks and failures.
02
Low Maintenance
Once installed, they rarely require adjustments, leading to reduced downtime.
03
Cost-Effective in the Long Run
Considering they don’t need frequent replacements or adjustments, they can be more economical over extended periods.
04
Flexibility
They offer adaptability, especially beneficial for systems undergoing regular modifications or for temporary setups.
Sealing Type of Hydraulic Hose Fittings
O-Ring Face Seal (ORFS) – Hydraulic fittings equipped with this kind of sealing method provide a secure and reliable elastomeric seal preferred for applications with any risk of leaking fluids. They can eliminate leaks in hydraulic systems that operate at pressures that can reach up to 6,000 psi.
ORFS fittings can be split into the following types:
Straight ORFS Fitting – A straight screw connection with a male ORFS connection point to male PRT, G, or metric threads. Elbow ORFS Fitting is an elbow screw connection with an ORFS female connection and an ORFS male connection at an angle.
Tee ORFS Fitting – This is a T-shaped screw connection with three connection ports. One is a female ORFS connection port, with two other male ORFS connection ports.
BSP hydraulic fittings have screw threads that conform to BSP standards. These fittings are used primarily for interconnecting pipes and sealing, which is achieved by interlocking the external (male) with the internal (female) thread. These fittings are commonly found in plumbing industries and are widely accepted worldwide except for North America due to the American National Pipe Tapered Thread (NPT) standard.
Mated Angle – Hydraulic fittings with an angle seat equipped with either straight or parallel threads for sealing. When the male and female counterparts are threaded together, the threads don't actually form the seal. Instead, the fitting mechanically creates a seal by bringing the mating angle seats together, making the seal.
Tapered Threads – This type of hydraulic fitting has a male and female thread. Male fittings have their threads on the outside, while female fittings have theirs on the inside. The tapered thread deforms when the male and female fittings are threaded together. This consequently applies pressure on the couplings, which create the seal. Unfortunately, these fittings are prone to shredding and contaminate sensitive areas, which often causes them to be prohibited for use in hydraulic and pneumatic systems. In addition, the lubricity of these fittings has also been known to cause over-torquing.
Material of Hydraulic Hose Fittings
Hydraulic hose fittings are typically fabricated from strong, durable materials capable of withstanding high-pressure environments.Commonly, they are made of materials like steel and stainless steel offering specific benefits such as corrosion resistance, heat tolerance, or light-weight properties.
Steel Hydraulic Fittings
Steel hydraulic fittings are highly valued for their superior strength, durability and resistance to high pressures and temperatures. Often utilized in industrial settings, they are resilient against harsh environments, but may be prone to corrosion if not properly maintained or protected.
Stainless Steel Fittings
Stainless steel fittings are renowned for their exceptional corrosion resistance and strength. These fittings are often employed in applications where the hydraulic system is exposed to corrosive substances, or high levels of cleanliness are required.
Customization Process
Requirement Discussion
Contact us and provide your design drawings, size specifications, and other technical parameters.
01
Design Proposal
Our professional team will develop a design proposal and provide a quotation based on your requirements.
02
Sample Production
We produce samples according to the design proposal and conduct rigorous testing.
03
Mass Production
Upon your approval, we commence mass production to ensure timely delivery and consistent quality.
04
After-Sales Service
We offer ongoing technical support and service to ensure the long-term stable operation of our products.
05
Package & Delivery
Package: Standard export package
Delivery: By air express, by sea
FAQ
As one of the most professional hydraulic hose fittings manufacturers and suppliers in China, we're featured by quality products and competitive price. Please rest assured to wholesale hydraulic hose fittings in stock here and get quotation from our factory. Contact us for customized service.
