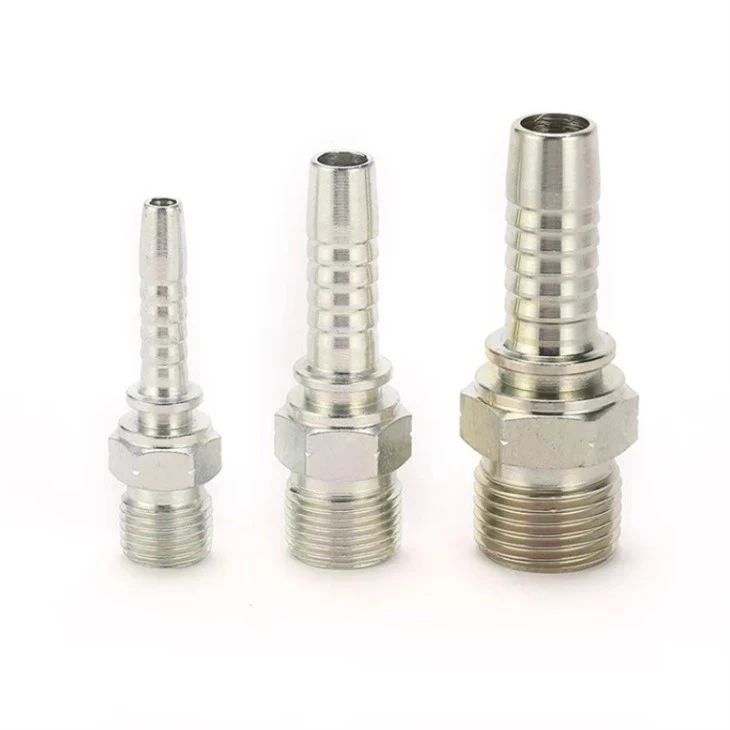

12611 BSP Male 60° Cone Seat Hose Fitting
BSP 60 Degree Cone Seal Fitting
Part No.: 12611/ 12611-RW
Available Material: Steel & Zinc Plated, Brass, Stainless Steel
Description
|
Our advantage |
1. High quality. 2. A lot of stock. 3. Prompt delivery.
4. Factory. Products produced by ourselves. |
|
Delivery time |
About 1 month if do not have stock. |
|
Customize service |
We can produce according to your drawings and samples. |
|
Packing details |
Nylon plastic + corrugated carton + pallet |
Description: 12611 BSP MALE 60° CONE SEAT HYDRAULIC HOSE FITTING
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 12611-02-03 | G1/8"X28 | 5 | 3 | 22 | 10 | 12 |
| 12611-04-04 | G1/4"X19 | 6 | 4 | 24.5 | 12 | 14 |
| 12611-06-05 | G3/8"X19 | 8 | 5 | 26 | 13.5 | 17 |
| 12611-06-06 | G3/8"X19 | 10 | 6 | 27.5 | 13.5 | 17 |
| 12611-06-08 | G3/8"X19 | 12 | 8 | 26.5 | 13.5 | 19 |
| 12611-08-06 | G1/2"X14 | 10 | 6 | 30.5 | 16 | 22 |
| 12611-08-08 | G1/2"X14 | 12 | 8 | 31 | 16 | 22 |
| 12611-10-08 | G5/8"X14 | 12 | 8 | 32.5 | 17.5 | 24 |
| 12611-10-10 | G5/8"X14 | 16 | 10 | 33.5 | 17.5 | 24 |
| 12611-12-08 | G3/4"X14 | 12 | 8 | 35.5 | 18.5 | 27 |
| 12611-12-10 | G3/4"X14 | 16 | 10 | 37 | 18.5 | 27 |
| 12611-12-12 | G3/4"X14 | 20 | 12 | 36.5 | 18.5 | 27 |
| 12611-16-12 | G1"X11 | 20 | 12 | 40.5 | 20.5 | 36 |
| 12611-16-16 | G1"X11 | 25 | 16 | 41.5 | 20.5 | 36 |
| 12611-20-16 | G1.1/4"X11 | 25 | 16 | 43.5 | 20.5 | 46 |
| 12611-20-20 | G1.1/4"X11 | 32 | 20 | 44.5 | 20.5 | 46 |
| 12611-24-20 | G1.1/2"X11 | 32 | 20 | 49 | 23 | 50 |
| 12611-24-24 | G1.1/2"X11 | 40 | 24 | 46 | 23 | 50 |
| 12611-32-32 | G2"X11 | 50 | 32 | 53.5 | 25.5 | 65 |
| Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 12612-xx-xx | ||||||
We, LOMOFLEX CO.,LTD are a pressional factory to produce international standard hydraulic components. We have been engaged in hydraulic components, hydraulic hose, industrial hose, various customized hydraulic parts' design and production for thirteen years. We integrates R&D, manfacturing and sales into one, with the right of import and exprot business.
