Description
Part No.: 24211/24212
Product Application
|
Material: |
Carbon Steel /Stainless Steel |
|
Color: |
Silver /Yellow |
|
Connection: |
Female |
|
Brand Name: |
OEM, ODM |
|
Model Number: |
Can Be Customized |
|
Type: |
Nipple |
|
Technics: |
Forged |
|
Application: |
Rubber Hose And Industrial Machine |
|
Our advantage |
1. High quality. 2. A lot of stock. 3. Prompt delivery.
4. Factory. Products produced by ourselves. |
|
Delivery time |
About 1 month if do not have stock. |
|
Customize service |
We can produce according to your drawings and samples. |
|
Packing details |
Nylon plastic + corrugated carton + pallet |

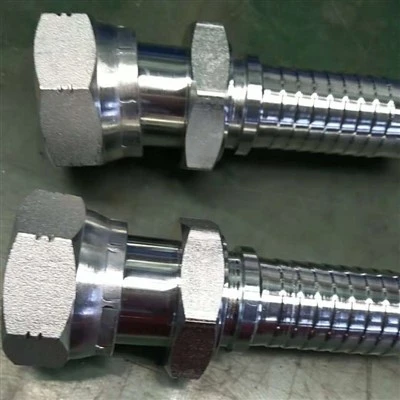

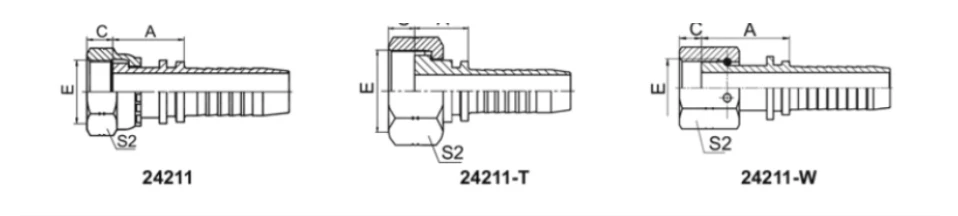

Description: 24211 ORFS FEMALE FLAT SEAT HOSE FITTING (ISO 12151-1 - SAE J516)
| 代号 PART NO. |
螺纹E THREAD E |
软管 HOSE BORE | 尺寸 DIMENSIONS | |||
| 公称内径DN | 标号DASH | A | C | S2 | ||
| 24211-04-04 | 9/16X18 | 6 | 04 | 22.5 | 8.5 | 19 |
| 24211-04-05 | 9/16*X18 | 8 | 05 | 22.5 | 8.5 | 19 |
| 24211-04-06 | 9/16*X18 | 10 | 06 | 22.5 | 8.5 | 19 |
| 24211-06-04T | 11/16*X16 | 6 | 04 | 23.5 | 10 | 22 |
| 24211-06-05T | 11/16*X16 | 8 | 05 | 23.5 | 10 | 22 |
| 24211-06-06 | 11/16*X16 | 10 | 06 | 25.5 | 10 | 22 |
| 24211-06-08 | 11/16*X16 | 12 | 08 | 26 | 10 | 22 |
| 24211-08-05T | 13/16*X16 | 8 | 05 | 25 | 11 | 27 |
| 24211-08-06T | 13/16*X16 | 10 | 06 | 25 | 11 | 27 |
| 24211-08-08 | 13/16*X16 | 12 | 08 | 28 | 11 | 27 |
| 24211-08-10 | 13/16*X16 | 16 | 10 | 29 | 11 | 27 |
| 24211-10-08T | 1*X14 | 12 | 08 | 29.5 | 13.5 | 30 |
| 24211-10-10 | 1*X14 | 16 | 10 | 33.5 | 13.5 | 30 |
| 24211-10-12 | 1*X14 | 20 | 12 | 33.5 | 13.5 | 30 |
| 24211-12-08T | 1.3/16*X12 | 12 | 08 | 30.5 | 15 | 36 |
| 24211-12-10T | 1.3/16"X12 | 16 | 10 | 31.5 | 15 | 36 |
| 24211-12-12 | 1.3/16°X12 | 20 | 12 | 35 | 15 | 36 |
| 24211-12-16 | 1.3/16*X12 | 25 | 16 | 36 | 15 | 36 |
| 24211-16-12T | 1.7/16°X12 | 20 | 12 | 35 | 14.8 | 41 |
| 24211-16-14T | 1.7/16*X12 | 22 | 14 | 34 | 14.8 | 41 |
| 24211-16-16T | 1.7/16X12 | 25 | 16 | 35 | 14.8 | 41 |
| 24211-16-20 | 1.7/16*X12 | 32 | 20 | 39.5 | 14.8 | 41 |
| 24211-20-16T | 1.11/16~X12 | 25 | 16 | 35 | 15 | 50 |
| 24211-20-20W | 1.11/16*X12 | 32 | 20 | 39.5 | 15 | 50 |
| 24211-20-24W | 1.11/16*X12 | 40 | 24 | 39.5 | 15 | 50 |
| 24211-24-20T | 2"X12 | 32 | 20 | 36 | 14.8 | 60 |
| 24211-24-24T | 2*X12 | 40 | 24 | 36 | 14.8 | 60 |
Our American Fittings:
