20511 Female Metric 24 Heavy Hose Fitting
Metric Female 24° Cone O-ring H.T. (ISO 12151-2 - DIN 3865)
Description
Part No.: 20511 / 20511-T

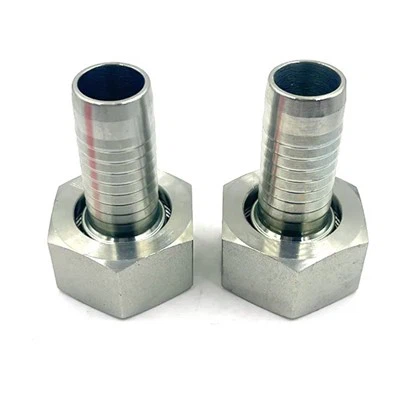

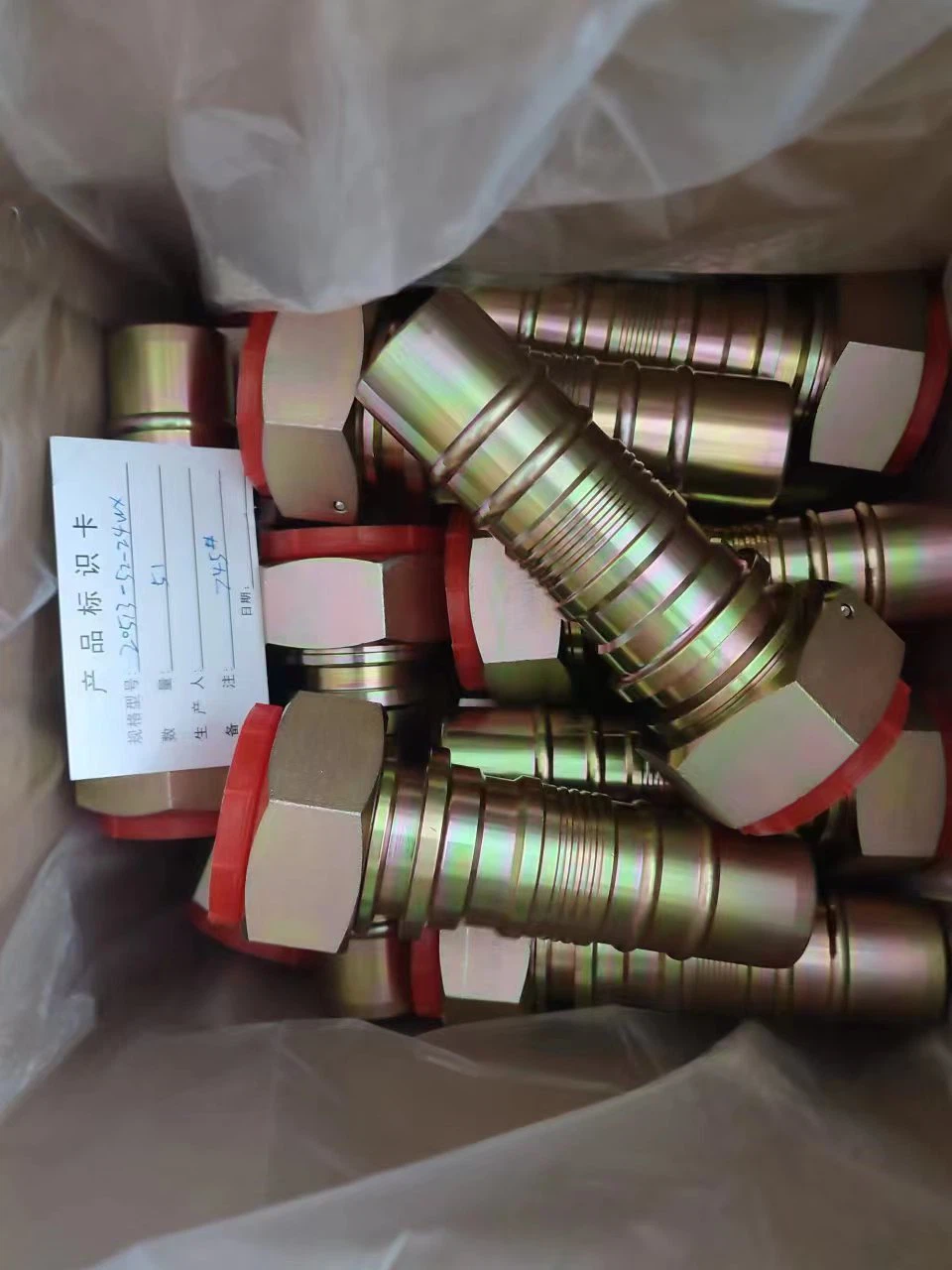

Description: Metric Female 24 Degree Cone O-ring H.T.,Straight Hose Tail Connector
Specifications:
Metric Female 24° Cone O-ring H.T. (ISO 12151-2 - DIN 3865)

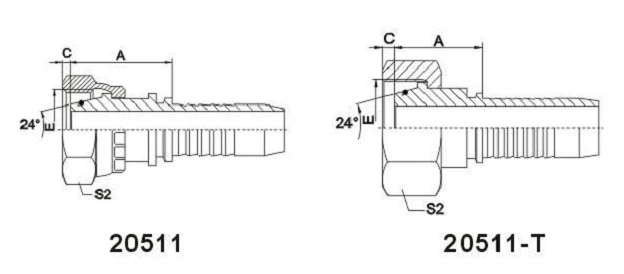

| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O RING | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||||
| 20511-14-04 | M14X1.5 | 6 | 4 | 6 | O04.5X1.5 | 28.5 | 1.1 | 19 |
| 20511-16-04 | M16X1.5 | 6 | 4 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
| 20511-16-05 | M16X1.5 | 8 | 5 | 8 | O06.5X1.5 | 29 | 1.5 | 22 |
| 20511-18-06 | M18X1.5 | 10 | 6 | 10 | O08.0X1.5 | 29 | 2 | 24 |
| 20511-20-08 | M20X1.5 | 12 | 8 | 12 | O10.0X1.5 | 31.5 | 2.5 | 27 |
| 20511-22-08 | M22X1.5 | 12 | 8 | 14 | O11.0X2.0 | 31.5 | 2.5 | 27 |
| 20511-30-12 | M30X2 | 20 | 12 | 20 | O16.3X2.4 | 39 | 3 | 36 |
| 20511-18-04T | M18X1.5 | 6 | 4 | 10 | O08.0X1.5 | 26.5 | 2 | 22 |
| 20511-20-06T | M20X1.5 | 10 | 6 | 12 | O10.0X1.5 | 28.5 | 2.5 | 24 |
| 20511-22-06T | M22X1.5 | 10 | 6 | 14 | O11.0X2.0 | 28.5 | 2.5 | 27 |
| 20511-24-06T | M24X1.5 | 10 | 6 | 16 | O13.0X2.0 | 28.5 | 2.5 | 30 |
| 20511-24-08T | M24X1.5 | 12 | 8 | 16 | O13.0X2.0 | 30 | 3 | 30 |
| 20511-30-10T | M30X2 | 16 | 10 | 20 | O16.3X2.4 | 36 | 3 | 36 |
| 20511-36-12T | M36X2 | 20 | 12 | 25 | O20.3X2.4 | 36 | 3 | 41 |
| 20511-36-14T | M36X2 | 22 | 14 | 25 | O20.3X2.4 | 36 | 3 | 41 |
| 20511-42-12T | M42X2 | 20 | 12 | 30 | O25.3X2.4 | 40 | 5 | 50 |
| 20511-42-16T | M42X2 | 25 | 16 | 30 | O25.3X2.4 | 41 | 5 | 50 |
| 20511-52-20T | M52X2 | 32 | 20 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
| 20511-52-24T | M52X2 | 40 | 24 | 38 | O33.3X2.4 | 44 | 6.5 | 60 |
Note: 1. For use with braided hoses. 2. If use with spiral hose, hose fitting series number is 10312-xx-xx;3. All the part NO. above are in carbon steel. If ordering stainless steel adaptor, please suffix"SS". For example: 10311-12-04 SS means stainless steel fitting. 4. Also can produce integrated hose fitting.
Our main products:
Steel threaded hydraulic hose fittings and pipe adapters, sucn as Metric , BSP, BSPT, NPT , JIC , ORFS, SAE thread.
