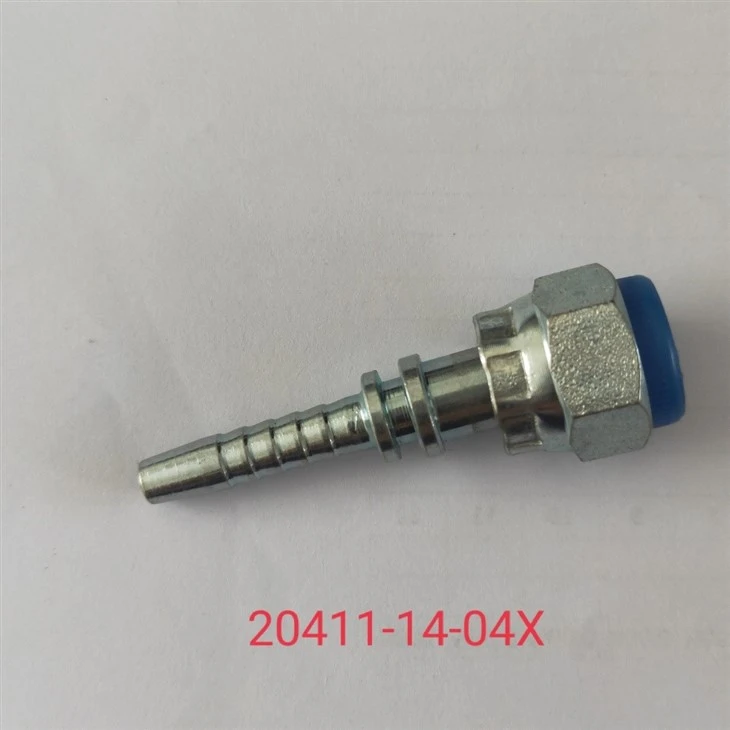

20411 Metric Female Fitting DIN3853
Part No.: 20411/20411-T
Description: METRIC FEMALE 24° CONE RING L.T. ISO 8734-1 DIN 3865
Description
Introduction:
The METRIC FEMALE 24° CONE RING L.T. Fitting is a metric hydraulic sealing connector featuring a 24° cone (per DIN 2353/ISO 8434-1 standards) and a metal sealing ring (L.T. = Light Tight, optimized for compact and leak-proof performance). Designed for high-pressure resistance and vibration durability, it uses metric threads (e.g., M12×1.5) for seamless integration with European-standard hydraulic systems.
Specifications:
Metric 24° O-ring Seal L.T.

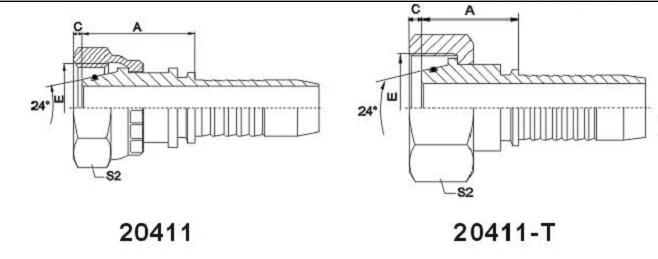

| PART NO. | THREAD E | HOSE BORE | TUBE O.D. | O RING | DIMENSIONS | |||
| DN | DASH | A | C | S2 | ||||
| 20411-12-04 | M12X1.5 | 6 | 4 | 6 | O04.5X1.5 | 26 | 1 | 17 |
| 20411-14-04 | M14X1.5 | 6 | 4 | 8 | O06.5X1.5 | 27.5 | 2 | 19 |
| 20411-14-06 | M14X1.5 | 10 | 6 | 8 | O06.5X1.5 | 27.5 | 2 | 19 |
| 20411-16-04 | M16X1.5 | 6 | 4 | 10 | O08.0X1.5 | 28 | 2 | 22 |
| 20411-16-05 | M16X1.5 | 8 | 5 | 10 | O08.0X1.5 | 28 | 2 | 22 |
| 20411-16-06 | M16X1.5 | 10 | 6 | 10 | O08.0X1.5 | 28 | 2 | 22 |
| 20411-18-06 | M18X1.5 | 10 | 6 | 12 | O10.0X1.5 | 29 | 2.5 | 24 |
| 20411-18-08 | M18X1.5 | 12 | 8 | 12 | O10.0X1.5 | 29.5 | 2.5 | 24 |
| 20411-22-08 | M22X1.5 | 12 | 8 | 15 | O12.0X2.0 | 32 | 2.5 | 27 |
| 20411-26-10 | M26X1.5 | 16 | 10 | 18 | O15.0X2.0 | 35 | 2.5 | 32 |
| 20411-26-12 | M26X1.5 | 20 | 12 | 18 | O15.0X2.0 | 35 | 2.5 | 32 |
| 20411-27-12 | M27X1.5 | 20 | 12 | 18 | O15.0X2.0 | 35 | 2.5 | 32 |
| 20411-30-12 | M30X2 | 20 | 12 | 22 | O20.0X2.0 | 38 | 4 | 36 |
| 20411-18-05T | M18X1.5 | 8 | 5 | 12 | O10.0X1.5 | 27.5 | 1.8 | 22 |
| 20411-22-05T | M22X1.5 | 8 | 5 | 15 | O12.0X2.0 | 29.5 | 2.1 | 27 |
| 20411-22-06T | M22X1.5 | 10 | 6 | 15 | O12.0X2.0 | 29 | 2.5 | 27 |
| 20411-27-10T | M27X1.5 | 16 | 10 | 18 | O15.0X2.0 | 28 | 2.5 | 32 |
| 20411-30-10T | M30X2 | 16 | 10 | 22 | O20.0X2.0 | 35 | 4 | 36 |
| 20411-36-12T | M36X2 | 20 | 12 | 28 | O26.0X2.0 | 35 | 4 | 41 |
| 20411-36-14T | M36X2 | 22 | 14 | 28 | O26.0X2.0 | 36 | 4 | 41 |
| 20411-45-16T | M45X2 | 25 | 16 | 35 | O32.0X2.5 | 41 | 5 | 55 |
| 20411-45-20T | M45X2 | 32 | 20 | 35 | O32.0X2.5 | 42 | 5 | 55 |
| 20411-52-20T | M52X2 | 32 | 20 | 42 | O38.0X2.5 | 44 | 5.5 | 60 |
| 20411-52-24T | M52X2 | 40 | 24 | 42 | O38.0X2.5 | 44 | 5.5 | 60 |
Note: 1. For use with braided hoses. 2. If use with spiral hose, hose fitting series number is 10312-xx-xx;3. All the part NO. above are in carbon steel. If ordering stainless steel adaptor, please suffix"SS". For example: 10311-12-04 SS means stainless steel fitting. 4. Also can produce integrated hose fitting.
Key Applications:
Construction & Heavy Machinery – Used in excavators, cranes, and loaders for high-pressure hydraulic lines under dynamic movement.
Industrial Hydraulics – Connects pumps and valves in injection molding machines and stamping equipment, ensuring leak-free operation.
Energy & Power Systems – Ideal for wind turbine pitch control hydraulics or fuel injection lines, withstanding extreme temperatures and vibrations.
Rail & Transportation – Ensures reliable sealing in compact brake systems for trains and commercial vehicles.
