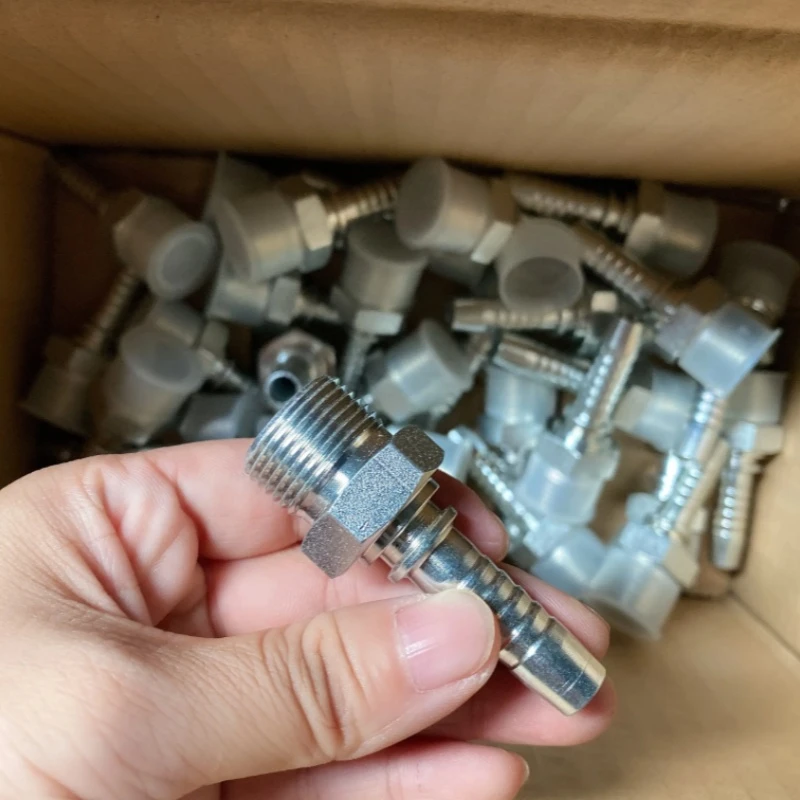

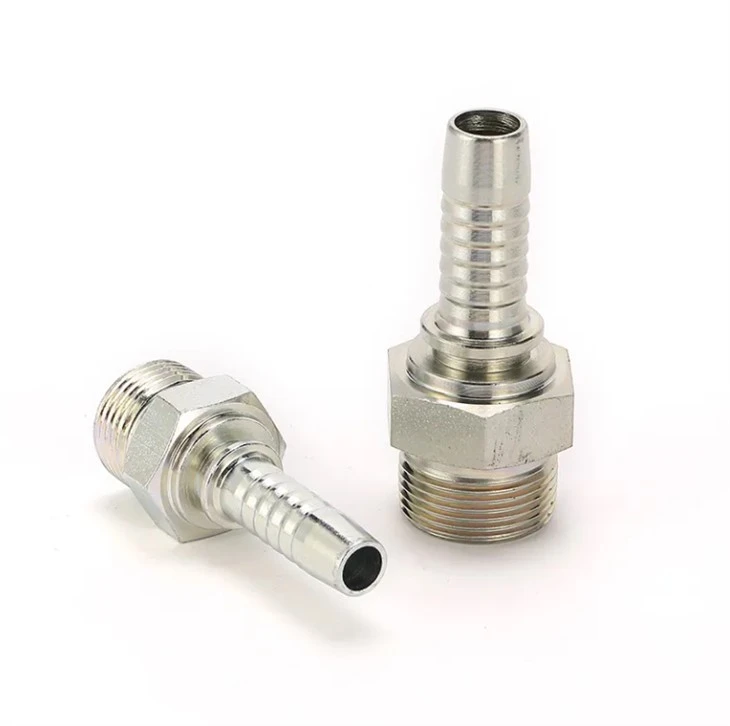

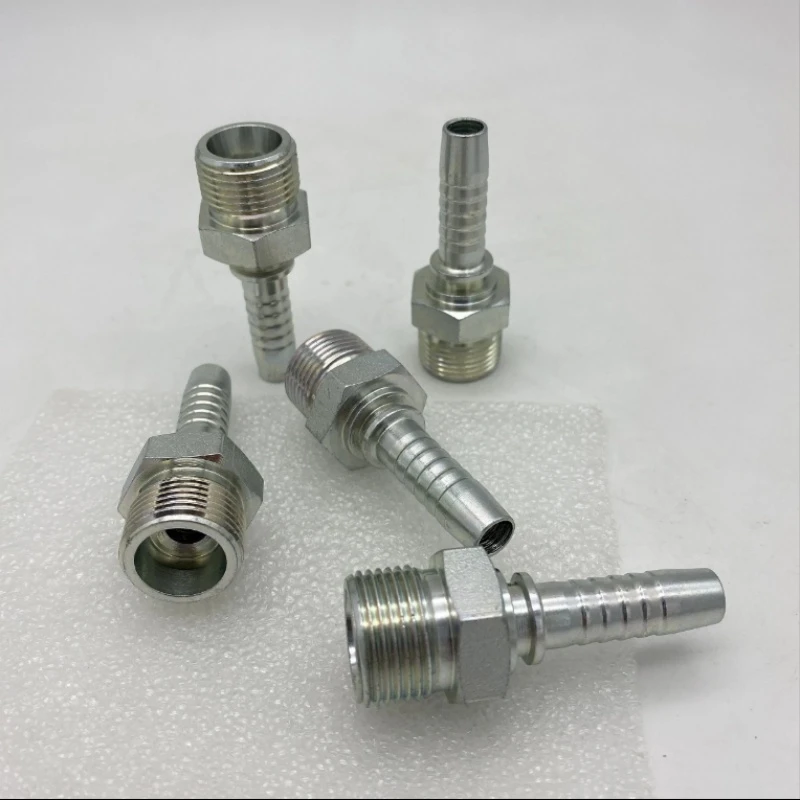

10511 Metric Male 24 Degree Heavy Hose Fitting
Part No.: 10511/10512
Description: 10511 Metric Male 24deg Cone Seat H.T. ISO 8434-1- DIN 3861
Features:
* Material: Carbon Steel/Stainless Steel
* Surface Treatment: Zinc Plating
* Salt Spray Test: 96h/120h/300h
* Package: Carton Box+Wooden Pallet
* Standard: EATON
* Certification: ISO 9001:2008
* Application: Industrial Machinery
* Feature: Long Life
Description
Specifications:
Metric Male 24 Degree Heavy Hose Fitting
| PART NO. | THREAD E | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 10511-14-04 | M14X1.5 | 6 | 4 | 24.1 | 12 | 14 |
| 10511-16-04 | M16X1.5 | 6 | 4 | 26.5 | 12 | 17 |
| 10511-18-04 | M18X1.5 | 6 | 4 | 26.5 | 12 | 19 |
| 10511-20-05 | M20X1.5 | 8 | 5 | 27 | 12 | 22 |
| 10511-20-06 | M20X1.5 | 10 | 6 | 26.5 | 12 | 22 |
| 10511-22-05 | M22X1.5 | 8 | 5 | 30.5 | 14 | 24 |
| 10511-22-06 | M22X1.5 | 10 | 6 | 30.5 | 14 | 24 |
| 10511-22-08 | M22X1.5 | 12 | 8 | 31 | 14 | 24 |
| 10511-24-08 | M24X1.5 | 12 | 8 | 31.5 | 14 | 27 |
| 10511-30-10 | M30X2 | 16 | 10 | 36 | 16 | 32 |
| 10511-30-12 | M30X2 | 20 | 12 | 36 | 16 | 32 |
| 10511-36-12 | M36X2 | 20 | 12 | 40.5 | 18 | 41 |
| 10511-36-16 | M36X2 | 25 | 16 | 41.5 | 18 | 38 |
| 10511-42-16 | M42X2 | 25 | 16 | 44 | 20 | 46 |
| 10511-42-20 | M42X2 | 32 | 20 | 45 | 20 | 46 |
| 10511-52-20 | M52X2 | 32 | 20 | 50 | 22 | 55 |
Note: 1. For use with braided hoses. 2. If use with spiral hose, hose fitting series number is 10312-xx-xx;3. All the part NO. above are in carbon steel. If ordering stainless steel adaptor, please suffix"SS". For example: 10311-12-04 SS means stainless steel fitting. 4. Also can produce integrated hose fitting.
Our Fittings Range:
|
Ferrules
|
Metric thread hose fittings
|
British thread hose fittings
|
|
America thread hose fittings
|
Metric thread hose adapter
|
Brithsh thread hose adapter
|
|
America thread hose adapter
|
One piece hose fittings
|
Reusable hose fittings
|
Applications:
Metric Male 24° Cone Seat High-Temperature (H.T.) hydraulic fittings are widely used in high-pressure hydraulic systems requiring reliable, leak-free connections. Common applications include:
Industrial Machinery: Such as injection molding machines, presses, and CNC equipment.
Mobile Hydraulics: Found in construction, agricultural, and mining machinery (e.g., excavators, loaders).
Aerospace & Defense: For fuel and hydraulic systems demanding precision and durability.
High-Temperature Environments: Suitable for systems exposed to elevated temperatures due to heat-resistant materials.
