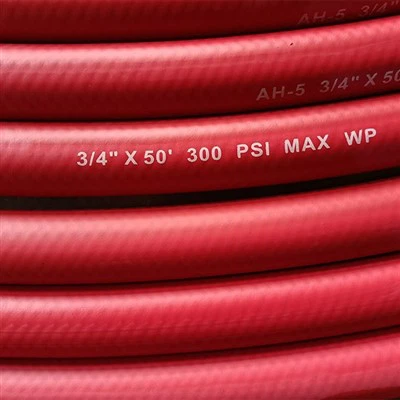

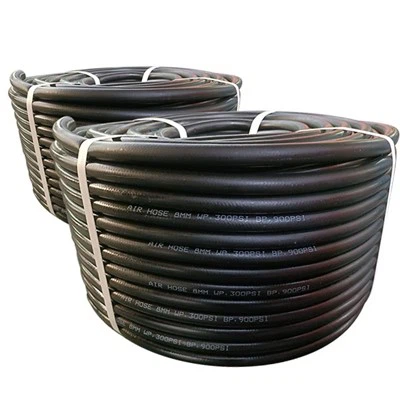

Rubber Air Hose
Rubber Air/Water Hose

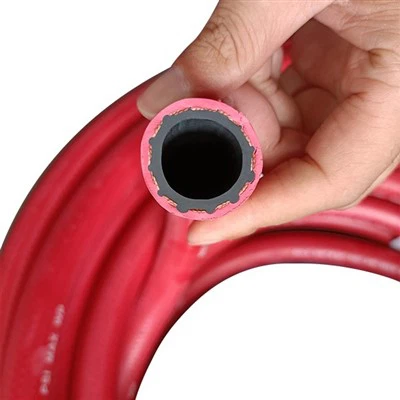

Tube: black, smooth, synthetic rubber
Reinforcement: high tensile synthetic yarn braided or spiraled
Cover: black or red, smooth (wrapped finish) synthetic rubber, abrasion, weather and abrasion resistant
Application:for a variety of general purposes in industries, construction sites and mines.
Temp Range: -35℃ to 80℃
Description
PARAMETERS：
|
I.D. |
O.D. |
W.P. |
B.P. |
WEIGHT |
LENGTH MAX. |
|||
|
MM |
INCH |
MM |
MPA |
PSI |
MPA |
PSI |
KG/M |
M/ROLL |
|
5 |
3/16" |
12 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.13 |
100±1% |
|
6 |
1/4" |
13 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.15 |
100±1% |
|
8 |
5/16" |
15 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.23 |
100±1% |
|
10 |
3/8" |
17 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.26 |
100±1% |
|
13 |
1/2" |
22 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.36 |
100±1% |
|
16 |
5/8" |
25 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.53 |
100±1% |
|
19 |
3/4" |
29 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.64 |
100±1% |
|
25 |
1" |
36 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
0.85 |
100±1% |
|
32 |
1.1/4" |
43 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
1.20 |
50±1% |
|
38 |
1.1/2" |
50 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
1.39 |
50±1% |
|
51 |
2" |
65 |
1.0~2.0 |
145~290 |
3.0~6.0 |
430~870 |
1.80 |
50±1% |
AIR/WATER HOSE APPLICATION:
Rubber air hose is a flexible hose made of rubber or a rubber-like material that is used to convey compressed air from one place to another. These hoses are commonly used in various applications, including pneumatic tools, workshops, construction sites, and industrial settings. Here are some key features and uses of rubber air hoses:
**Uses:**
- **Pneumatic Tools:** Rubber air hoses are commonly used with pneumatic tools such as impact wrenches, drills, sanders, and paint sprayers in automotive, construction, and industrial applications.
- **Workshops:** They are a staple in workshops for connecting air compressors to various air-powered equipment.
- **Construction Sites:** Construction workers use rubber air hoses for operating air-powered machinery and tools on-site.
- **Industrial Applications:** In industrial settings, rubber air hoses are used for compressed air supply in manufacturing processes and for operating air-powered equipment.
- **HVAC:** Rubber air hoses can be used in heating, ventilation, and air conditioning (HVAC) systems for testing and maintenance purposes.
When selecting a rubber air hose, consider the following factors:
Length and Diameter, Pressure Rating, Temperature Range, Chemical and Abrasion Resistance.
Always inspect the hose regularly for signs of wear, damage, or leaks, and replace it when necessary to ensure safety and efficiency.
Hot Tags: rubber air hose, China rubber air hose manufacturers, suppliers, factory, hydraulic hose standard, large diameter wire spiral hose, portable wire spiral hose, flame retardant wire spiral hose, low pressure rubber hose, hydraulic hose operating temperature
