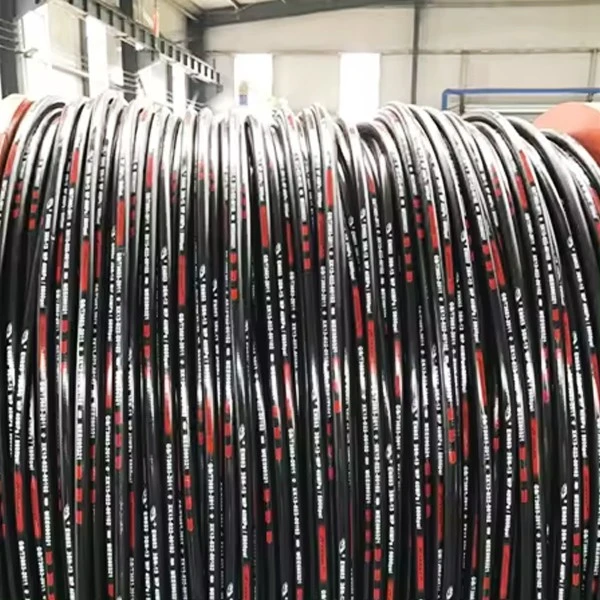

Hydraulic Rubber Hose Sae100 R17

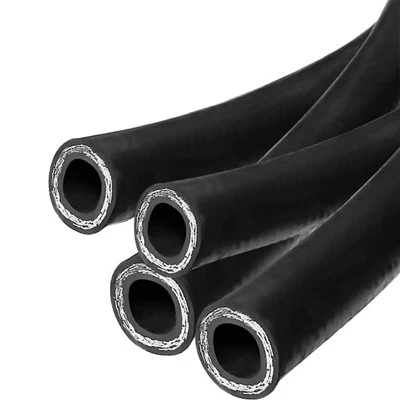

Hydraulic Rubber Hose SAE 100 R17
1.Inner Tube: OIl resistant snthetic rubber
2.Reinforcement: One braided of high tensile steel wire (1/4"~1/2");two branded of high tensile steel wire (5/8"~1")
SAE 100 R17 Hose Compact, 21 Mpa max working pressure, one and two steel wire reinforced, rubber covered hydraulic hose
3.Cover: Weather and oil resistant synthetic rubber
4.Temperature: -40 to 121 degree
5.Application: high pressure hydraulic application and to replace 100r1 where higher
Description
APPLICATIONS:
Product structure type: It is mainly composed of liquid-resistant inner adhesive layer, middle adhesive layer, 2 or 4 or 6 layers of steel wire winding reinforcement layer and outer adhesive layer. The inner adhesive layer can make the conveying medium bear pressure and protect the steel wire from erosion. The outer adhesive layer protects the steel wire from damage. The steel wire (& phi;0.3 - 2.0 reinforced steel wire) layer is reinforced by skeleton material.
SAE 100 R17 – ISO 11237-1 R17
|
SIZE |
SAE |
I.D |
W.D |
O.D |
W.P |
P.P |
B.P |
min B.R |
W.T |
||||||
|
mm |
inch |
1/16 |
Min |
Max |
Max |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
inch |
mm |
Kg/m |
|
6.3 |
1/4" |
-04 |
6.2 |
7.0 |
11.0 |
13.2 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
1.97 |
50 |
0.169 |
|
8 |
5/16" |
-05 |
7.7 |
8.5 |
13.0 |
15.0 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
2.17 |
55 |
0.210 |
|
10 |
3/8" |
-06 |
9.3 |
10.1 |
15.0 |
17.0 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
2.56 |
65 |
0.254 |
|
13 |
1/2" |
-08 |
12.3 |
13.5 |
18.8 |
21.1 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
3.54 |
90 |
0.466 |
|
16 |
5/8" |
-10 |
15.5 |
16.7 |
23.6 |
25.9 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
3.94 |
105 |
0.586 |
|
19 |
3/4" |
-12 |
18.6 |
19.8 |
27.7 |
30.3 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
4.72 |
125 |
0.749 |
|
25 |
1" |
-16 |
25.0 |
26.4 |
35.6 |
38.6 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
5.91 |
150 |
1.457 |

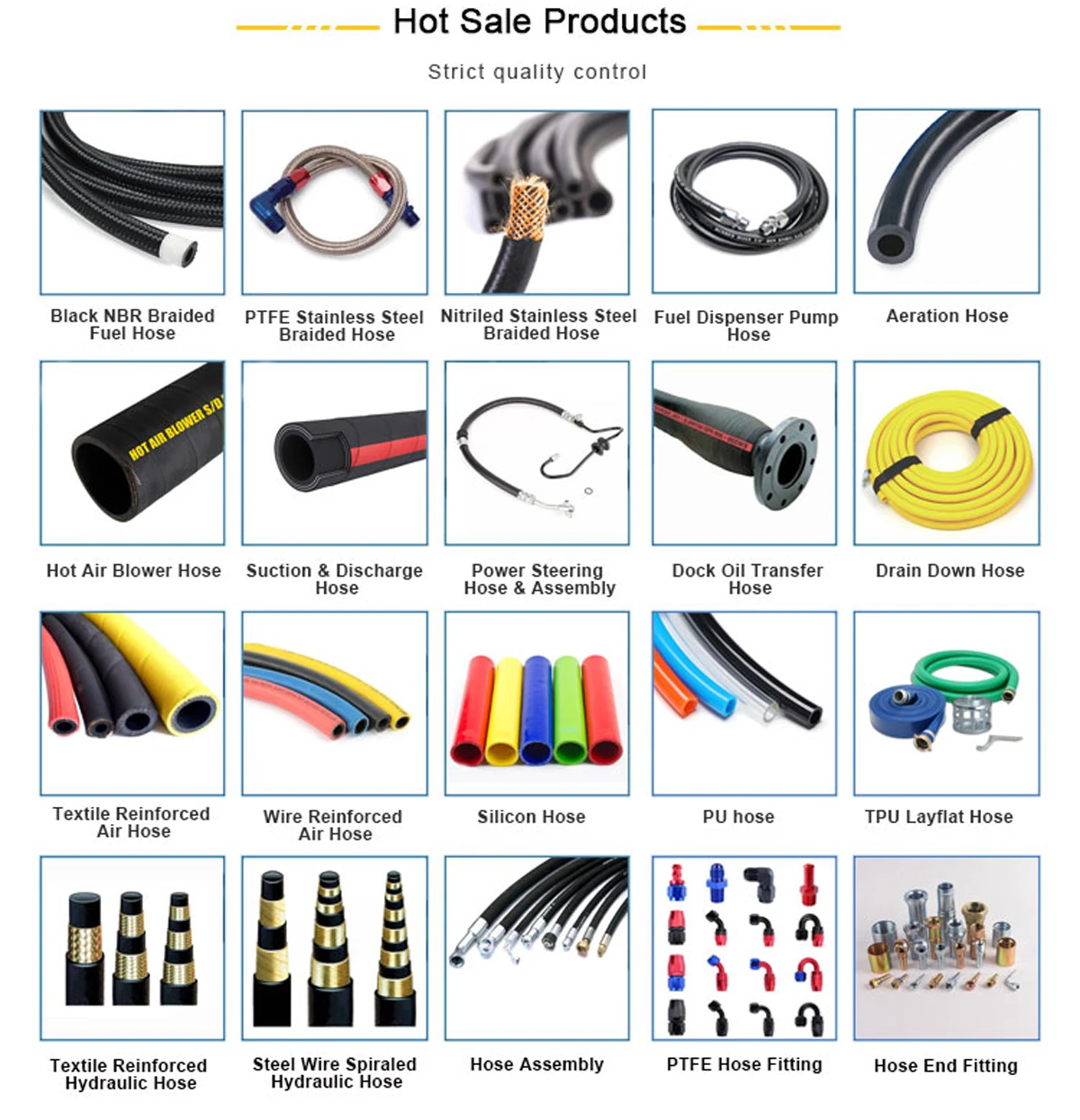

Our products we can supply as following:
1) Steel wire braided hydraulic hose
SAE 100 R1AT/DIN EN 853 1SN SAE 100 R2AT/DIN EN 853 2SN
DIN EN 857 1SC / 2SC SAE 100 R1A/R2A
SAE 100 R16/R17 Steam hose((1W,2W)
SAE 100 R5 ( 1T/B + 1W/B)
2) Multi steel wire Spiral hydraulic hose
DIN EN856 4SP DIN EN856 4SH
SAE 100 R12 SAE 100 R13
3) Other hydraulic hose
SAE 100 R3/R6 SAE 100 R7/R8
SAE 100 R14(Teflon hose)
4) Industrial hose
Oxygen / acetylene hoses, Twin welding hose, air/water/oil hose, sand blast hose,slurry hose, suction and discharge hoses
5) Automobile hose
Hydraulic/air brake hose(SAE J1401,SAE J1402), Air conditioning hose,Power steering hose, Car radiator hose
Why do you choose us?
- Long History - 15 years experience in high-pressure SAE hydraulic hoses & low-pressure industrial rubber hoses area.
- OEM Service - We provide professional OEM service.
- Wonderful Team - Sales team to offer fast response and trading professional consultation service.
- High Quality - All rubber hoses are made of high-quality rubber raw material, such as NBR, SBR, EPDM, NR etc.
- Pickiest Quality Control - Our pickiest quality control team always make sure every hose is top grade in quality.
- Checking - We check the details of rubber hoses to make sure goods is a fine before deliver to you.
