SAE100R1AT video

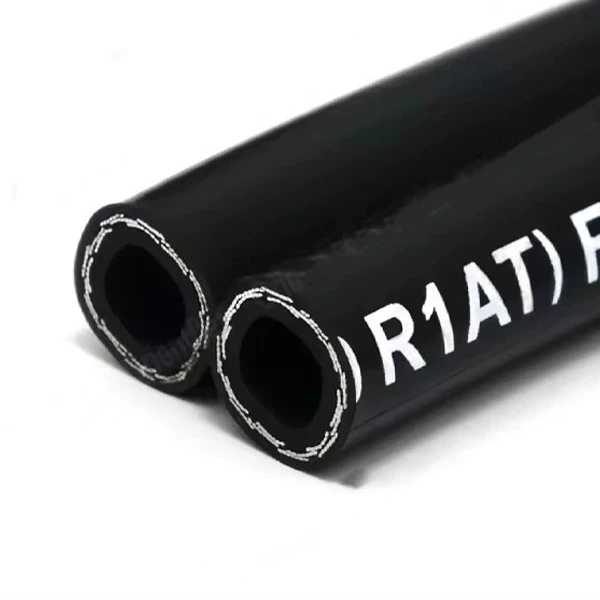

SAE100R1AT

One Steel Wire Braid Hose (SAE 100 R1AT / R1A)
Tube: oil resistant synthetic rubber.
Reinforcement: one high tensile steel braid.
Cover compound : abrasion, ozone and hydrocarbon resistant synthetic rubber.
Surface: smooth & cloth
Application: high pressure hydraulic lines, fuel oil, antifreeze solutions, air and water. Constant operation: -40 °C +100 °C (-40 °F +212 °F) air max T = +70 °C (+160 °F)

Send Inquiry

Description

DESCRIPTION: Wrapped steel wire reinforced rubber cover hydraulic hose SAE 100 R1AT/R1A



CONSTRUCTION:



SAE 100 R1 this hose shall consist of an inner tube of oil resistant synthetic rubber,a single steel wire braid reinforcement,and an oil and weather resistant synthetic rubber cover.



APPLICATIONS:



Medium pressure hydraulic lines. Meets or exceeds the requirements of SAE 100 R1 Type AT and performance requirements of EN 853 1SN.Mine hydraulic support, oilfield extraction machinery, mine/ road/construction machinery.

STRONG STRUCTURE: Oil resistant synthetic rubber tube and cover with single layer of steel wire braided reinforcement. Excellent anti-aging and abrasion resistance.

SUPERIOR ABILITY: SAE R1AT work well in hydraulic systems. This hose is light weight, small volume and has good flexibility. Also it can work well under a high temperature in systems.

PRIVATE DESIGN: We offer OEM/ODM and 3D design, send us your file(or we design for you), print Logo/text/pattern. If everything is ok, the production will begin based on your drawings.



One Steel Wire Braid Hose SAE 100 R1AT / R1A



SIZE

SAE

I.D

W.D

O.D

W. P

P.P

B.P

min B.R

W.T

A

AT

mm

inch

Dash

Min

Max

Min

Max

Min

Max

Max

Mpa

Psi

Mpa

Psi

Mpa

Psi

inch

mm

Kg/m

5

3/16

-03

4.6

5.4

8.9

10.1

11.9

13.5

12.5

21

3045

42

6090

84

12180

3.54

90

0.20

6.3

1/4

-04

6.2

7.0

10.6

11.7

15.1

16.7

14.1

19.2

2780

38.5

5580

77

11165

3.94

100

0.25

8

5/16

-05

7.7

8.5

12.1

13.3

16.7

18.3

15.7

17.5

2540

35

5075

70

10150

4.53

115

0.31

10

3/8

-06

9.3

10.1

14.5

15.7

19.0

20.6

18.1

15.7

2280

31.5

4570

63

9135

4.92

125

0.36

13

1/2

-08

12.3

13.5

17.5

19.0

22.2

23.8

21.5

14

2030

28

4060

56

8120

7.09

180

0.45

16

5/8

-10

15.5

16.7

20.6

22.2

25.4

27.0

24.7

10.5

1520

21

3045

42

6090

8.07

205

0.52

19

3/4

-12

18.6

19.8

24.6

26.2

29.4

31.0

28.6

8.7

1260

17.5

2540

35

5075

9.45

240

0.65

25

1

-16

25.0

26.4

32.5

34.1

36.9

39.3

36.6

7

1015

14

2030

28

4060

11.81

300

0.91

32

1 1/4

-20

31.4

33.0

39.3

41.7

44.4

47.6

44.8

4.3

620

8.7

1260

17.5

2540

16.54

420

1.30

38

1 1/2

-24

37.7

39.3

45.6

48.0

50.8

54.0

52.0

3.5

510

7

1015

14

2030

19.69

500

1.70

51

2

-32

50.4

52.0

58.7

61.9

65.1

68.3

65.9

2.6

380

5.2

750

10.5

1520

24.80

630

2.00



We can supply as following:



1) Steel wire braided hydraulic hose
SAE 100 R1AT/DIN EN 853 1SN SAE 100 R2AT/DIN EN 853 2SN
DIN EN 857 1SC / 2SC SAE 100 R1A/R2A
SAE 100 R16/R17 Steam hose((1W,2W)
SAE 100 R5 ( 1T/B + 1W/B)


2) Multi steel wire Spiral hydraulic hose
DIN EN856 4SP DIN EN856 4SH
SAE 100 R12 SAE 100 R13

3) Other hydraulic hose
SAE 100 R3/R6 SAE 100 R7/R8
SAE 100 R14(Teflon hose)

4) Industrial hose
Oxygen / acetylene hoses, Twin welding hose, air/water/oil hose, sand blast hose,slurry hose, suction and discharge hoses

5) Automobile hose
Hydraulic/air brake hose(SAE J1401,SAE J1402), Air conditioning hose,Power steering hose, Car radiator hose

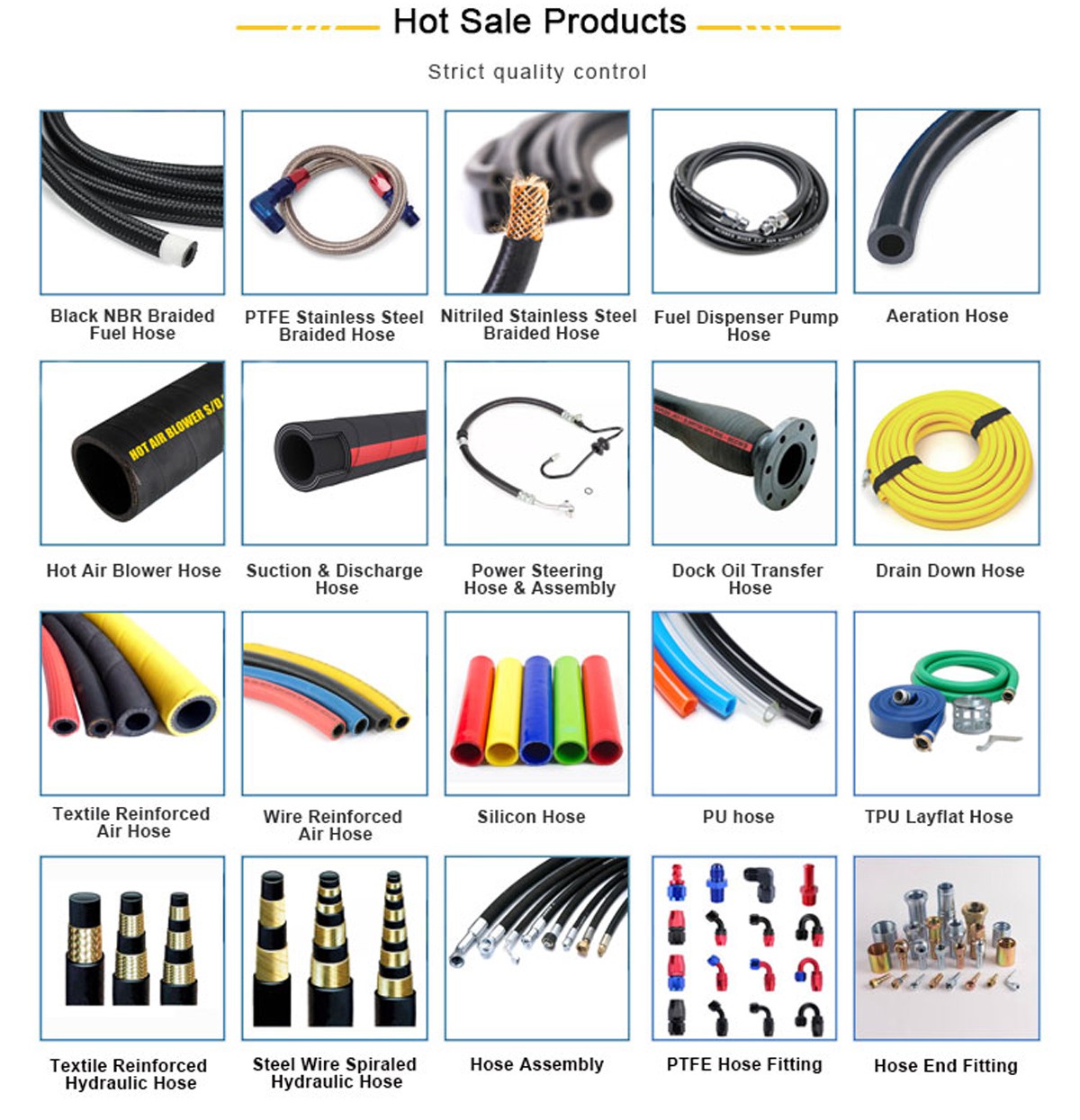

Our Products Range
