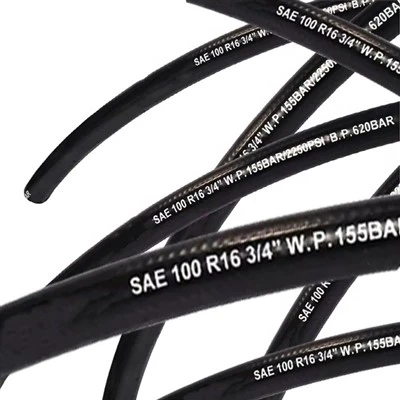

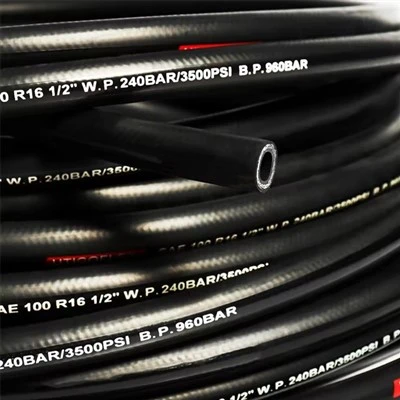

Hydraulic Rubber Hose Sae100 R16

SAE100 R16
• EN/DIN and new SAE rated working pressures
• Lightness and flexibility
• Appearance:Wrap（ I.D less than 25.4mm smooth cover)
• Branding:Printing and indelible branding with embossed technology
• Colour: Black ,red ,blue,yellow,green,gray

Send Inquiry

Description

CONSTRUCTION:

This hose shall consist of an inner tube of oil resistant synthetic rubber, steel wire reinforcement according to hose design (one or two braids), and an oil and weather resistant synthetic rubber cover. A ply or braid of suitable material may be used over the inner tube and/or over the wire reinforcement to anchor the synthetic rubber to the wire.

Applicable Specs: SAE 100 R16 - ISO 11237-1 R16

SAE R16 Compact, high pressure two steel wire reinforced, rubber covered hydraulic hose

SIZE		SAE	I.D		W.D	O.D	M.D		W.P		P.P		B.P		min B.R		W.T
mm	inch	1/16	Min	Max	Max	Max	Min	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
6.3	1/4"	-04	6.2	7.0	12.3	14.5	0.8	1.5	35	5075	70	10150	140	20300	1.97	50	0.30
8	5/16"	-05	7.7	8.5	13.3	15.7	0.8	1.5	29.7	4305	59.5	8625	119	17255	2.17	55	0.34
10	3/8"	-06	9.3	10.1	15.9	18.8	0.8	1.5	28	4060	56	8120	112	16240	2.56	65	0.42
13	1/2"	-08	12.3	13.5	19.0	22.0	0.8	1.5	24.5	3550	49	7105	98	14210	3.54	90	0.54
16	5/8"	-10	15.5	16.7	22.5	25.4	0.8	1.5	19.2	2780	38.5	5580	77	11165	3.94	100	0.68
19	3/4"	-12	18.6	19.8	26.3	29.0	0.8	1.5	15.7	2275	31.5	4565	63	9135	4.72	120	0.80
25	1"	-16	25.0	26.4	34.0	36.6	0.8	1.5	14	2030	28	4060	56	8120	5.91	150	1.15
32	1-1/2"	-20	31.4	33.0	41.9	44.3	1.0	2.0	11.3	1635	22.7	3290	45.5	6595	8.27	210	1.83

APPLICATIONS:

SAE 100R16 is a standard for hydraulic hoses that are designed for high-pressure applications, with a smaller diameter and higher flexibility compared to some other SAE hose standards. These hoses are typically constructed with a single steel wire braided reinforcement and are often used in applications where space is limited or where the hose needs to bend around tight corners. Here are some common applications for SAE 100R16 hydraulic hoses:

1. Mobile equipment: SAE 100R16 hoses are well-suited for use in mobile hydraulic systems, such as those found in construction equipment (e.g., excavators, skid steers, and cranes), agricultural machinery (e.g., tractors and sprayers), and forestry equipment.

2. Industrial machinery: These hoses can be used in a variety of industrial applications, including machine tools, robotics, and material handling equipment, where the flexibility and compact size of the hose are beneficial.

3. Automotive: SAE 100R16 hoses may be used in certain automotive applications, particularly for heavy vehicles like trucks and buses, where they can be found in power steering systems, clutch systems, and other hydraulic circuits.

4. Marine: The compact and flexible nature of SAE 100R16 hoses makes them suitable for use in marine hydraulic systems, such as those used for steering, winches, and other deck machinery.

5. Oil and gas: In the oil and gas industry, SAE 100R16 hoses may be used for hydraulic control systems on drilling rigs, as well as for other applications requiring high-pressure hydraulic lines.

When selecting SAE 100R16 hydraulic hoses, it's important to consider the fluid type, temperature range, pressure ratings, and environmental conditions to ensure the hose will perform effectively and safely. The hoses should also be installed and maintained according to the manufacturer's recommendations to prevent failures and ensure longevity. Additionally, the smaller diameter and higher flexibility of SAE 100R16 hoses make them easier to route in tight spaces, but they may not be as resistant to wear and abrasion as hoses with thicker walls or additional reinforcement.

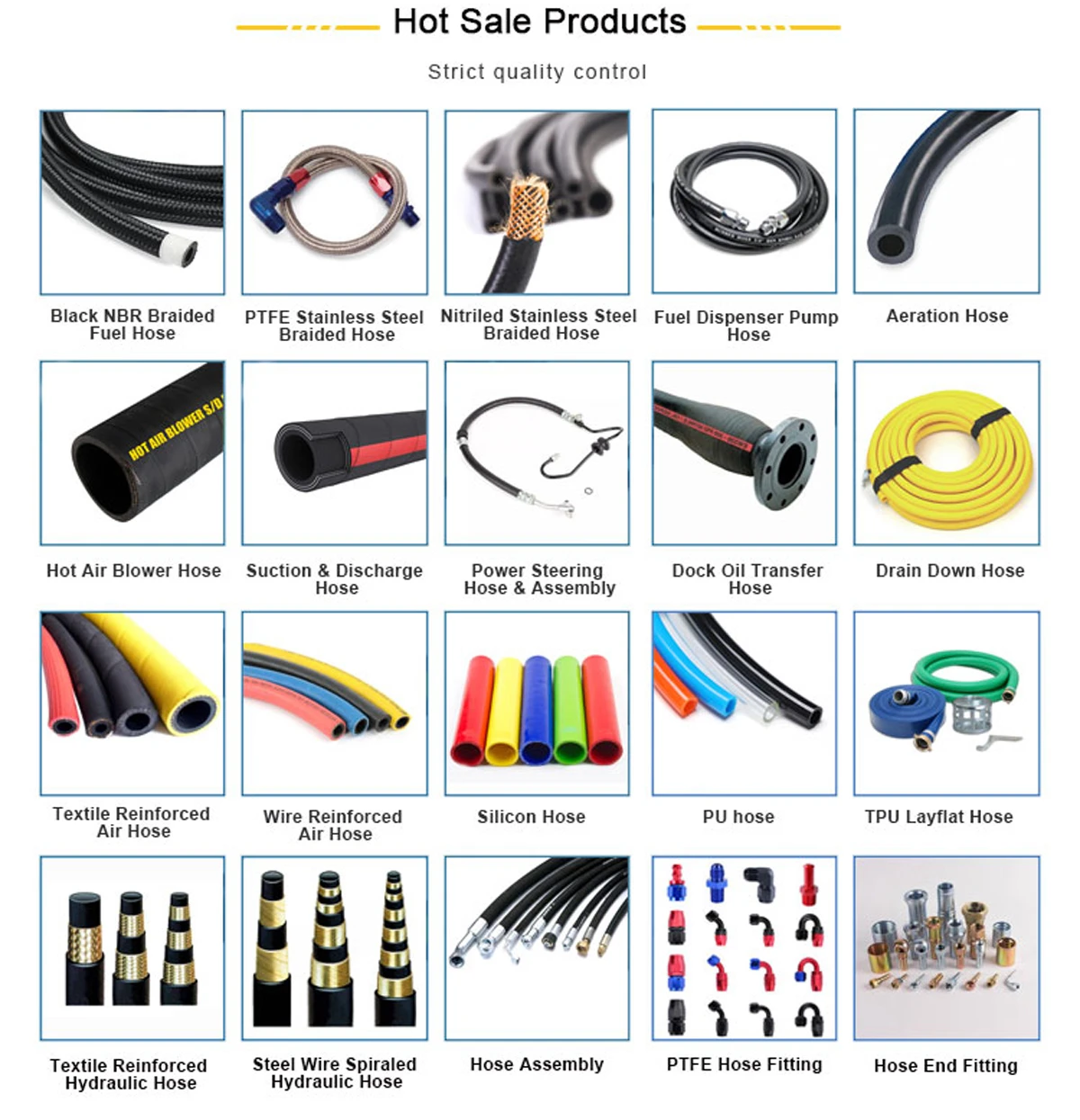

Our Products Range

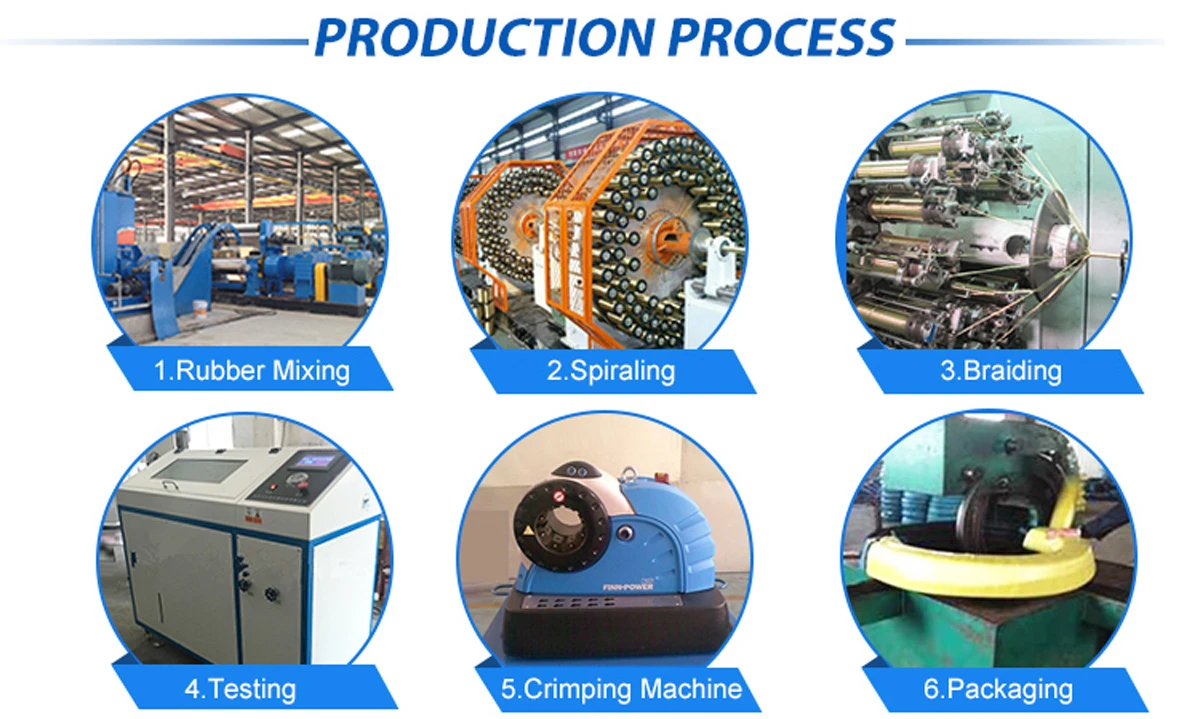

hydraulic hose production
