DIN EN857 1SC

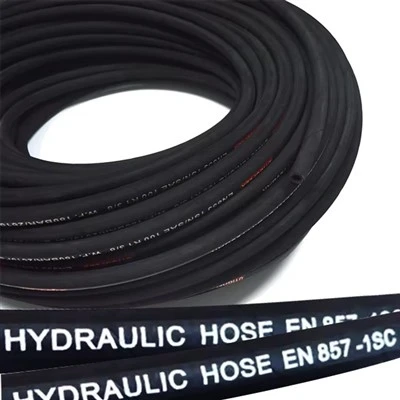

DIN EN857 1SC Wire Braid Hydraulic Hose
Tube: Black, oil resistant, synthetic rubber.
Reinforcement: One braid of high-tensile steel wire.
Cover: Black, oilproof, Anti-abrasion&weather resistant, thin synthetic rubber
Working Temperature:-40℉to +212℉(-40℃to +100℃)

Send Inquiry

Description

CONSTRUCTION

Recommended For: Low-medium pressure,petroleum based fluids or glycol-water based fluids at high pressure.Such as mineral oils, fuels, hydrocarbons.

Special Features: Working pressure exceeds EN857 1SC standard requirements. Good flexibility,lower bend radius.Suitable for complex high pressure hydraulic circuits. Validated for 300,000 impulse cycles.

This hose shall consists of an inner tube of oil resistant synthetic rubber, a single steel wire braid reinforcement, and an oil and weather resistant synthetic rubber cover.

DIN EN857 1SC Wire Braid Hydraulic Hose

SIZE		SAE	I.D		W.D		O.D	W. P		P.P		B.P		min B.R		W.T
mm	inch	Dash	Min	Max	Min	Max	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
6.3	1/4"	-04	6.1	6.9	9.6	10.8	13.5	22.5	3260	45	6525	90	13050	2.95	75	0.20
8	5/16"	-05	7.7	8.5	10.9	12.1	14.5	21.5	3120	43	6235	86	12470	3.35	85	0.15
10	3/8"	-06	9.3	10.1	12.7	14.5	16.9	18	2610	36	5220	72	10440	3.54	90	0.19
12.5	1/2"	-08	12.3	13.5	15.9	18.1	20.4	16	2320	32	4640	64	9280	5.12	130	0.23
16	5/8"	-10	15.5	16.7	19.8	21.0	23.0	13	1885	26	3770	52	7540	5.91	150	0.29
19	3/4"	-12	18.6	19.8	23.2	24.4	26.7	10.5	1520	21	3045	42	6090	7.09	180	0.34
25	1"	-16	25.0	26.4	30.7	31.9	34.9	8.8	1280	17.6	2550	35.2	5100	9.06	230	0.49

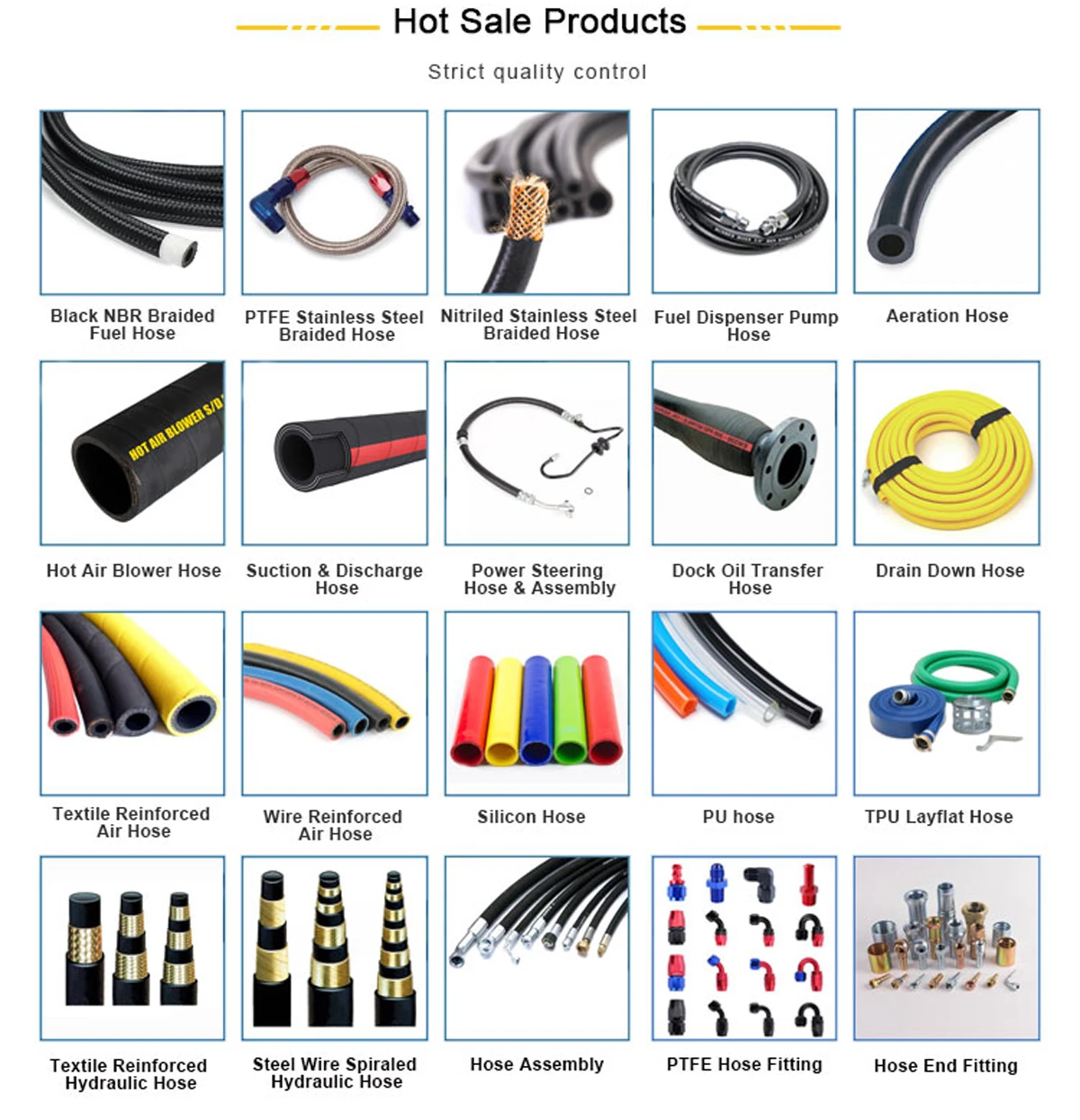

Our Products Range

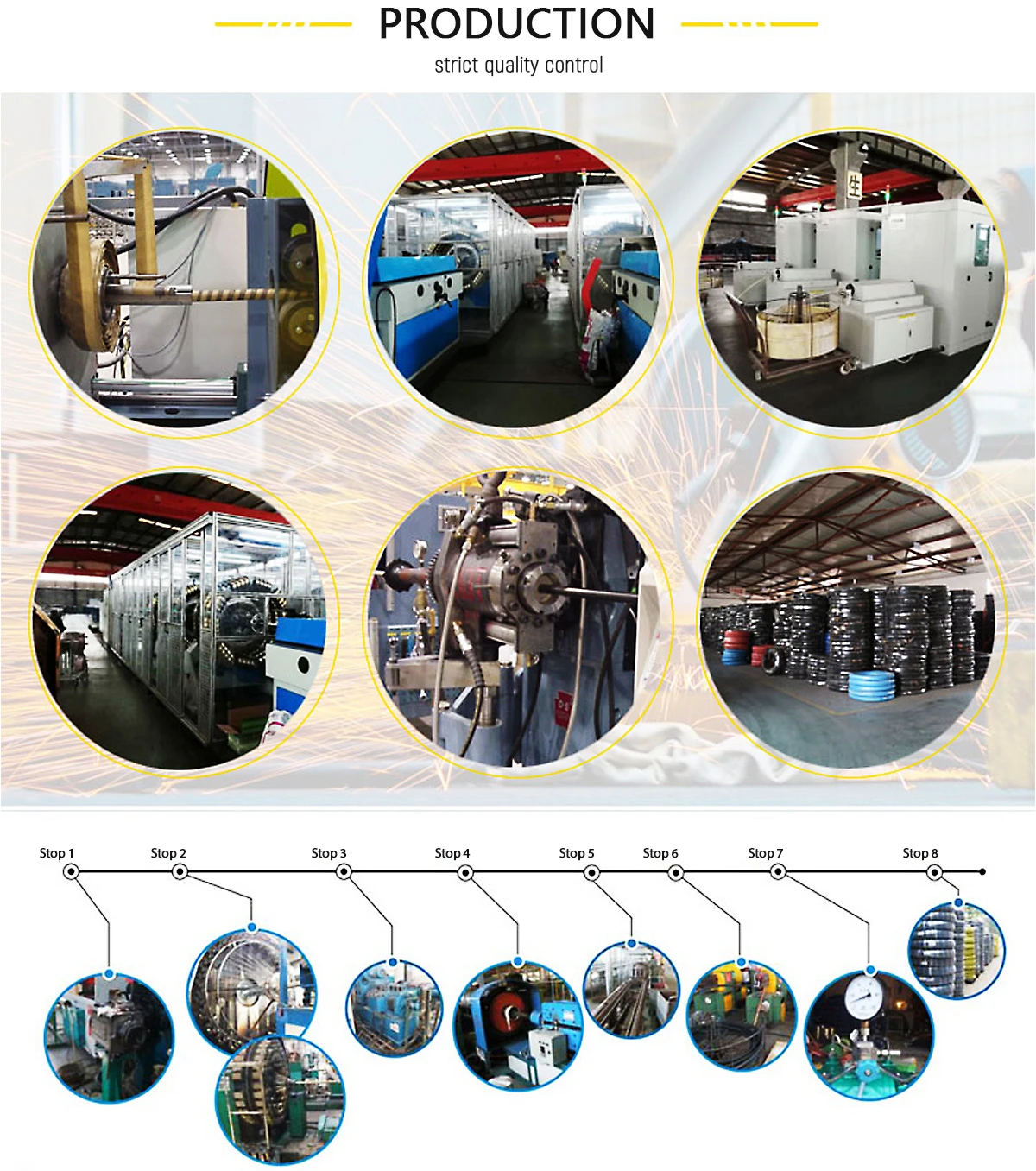

hyd hose factory

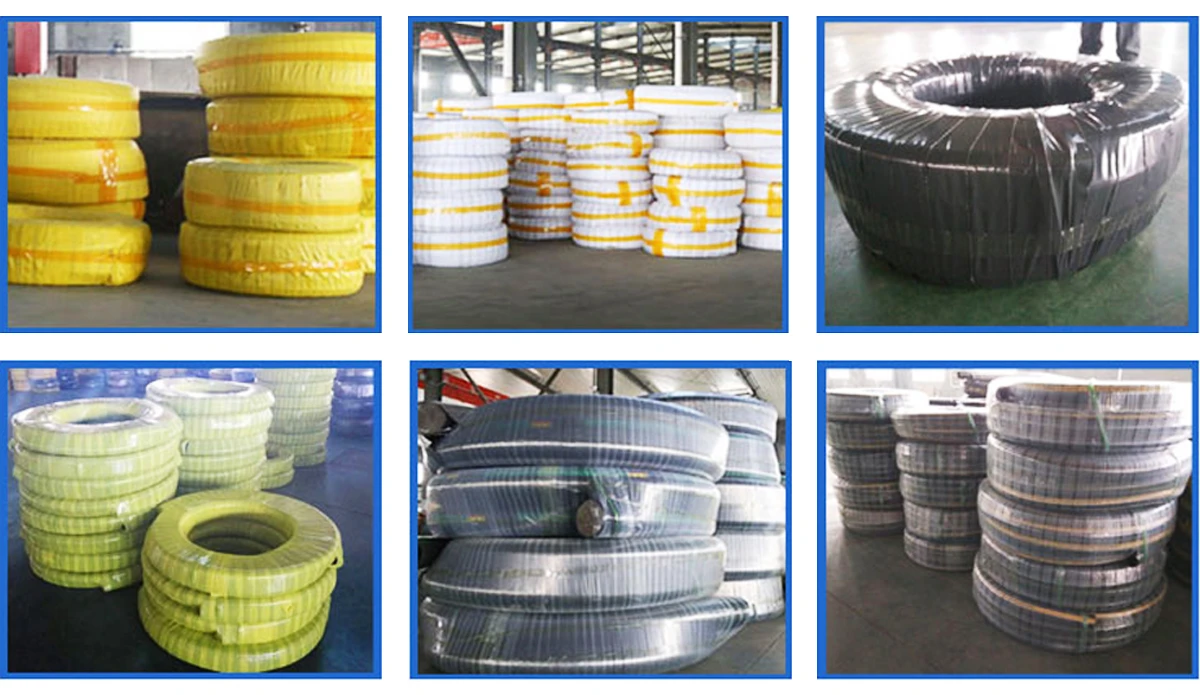

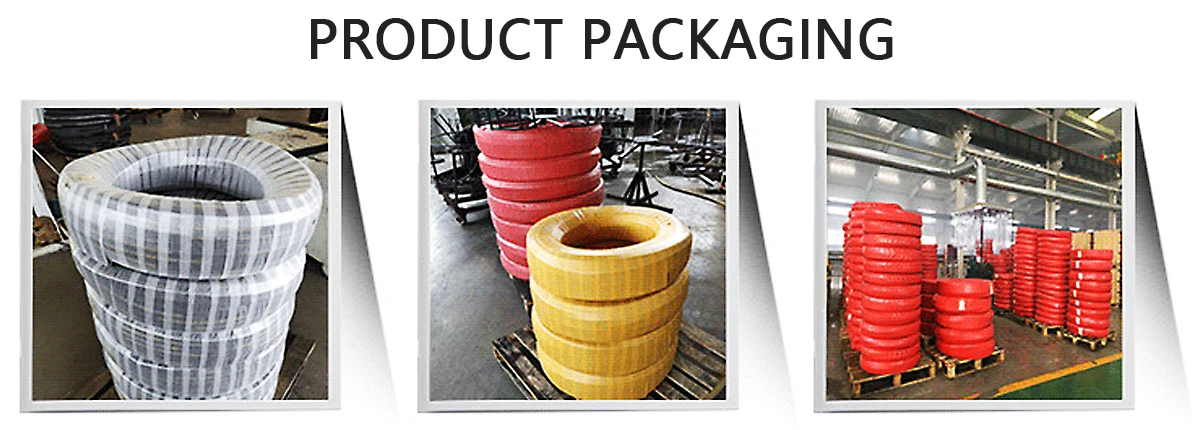

hoses package hose packagepng
