Sae100 R2AT

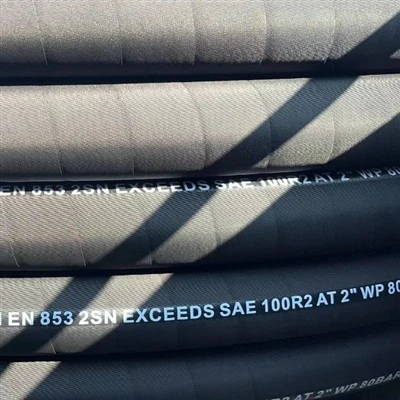

Description: Wrapped high pressure, steel wire reinforced, rubber covered hydraulic hose SAE 100 R2AT/R2A





SAE 100 R2 steel wire reinforced hydraulic hose is suitable for delivering petroleum-based hydraulic oils thanks to its oil resistant tube. Besides, it can convey the oils without producing excessive heat and leak. It is mainly used in some mobile equipment, such as farm tractor, dump truck and in-plant hydraulic equipment. It is composed of three parts: tube, reinforcement and cover. The tube is made from oil resistant synthetic rubber, so it is mainly used to transfer oils. The reinforcement is made from two layers of high tensile braided steel wires, making the hose have solid structure and resistant to high pressure. Therefore, it has excellent performance in high pressure working environment.





This section covers SAE 100 R2AT/R2A hose for use with petroleum base hydraulic fluids within a temperature range of -40°C~+100°C.

SIZE		SAE	I.D		W.D		O.D			W.P		P.P		B.P		min B.R		W.T
							A		AT
mm	inch	Dash	Min	Max	Min	Max	Min	Max	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
5	3/16	-03	4.6	5.4	10.6	11.7	15.1	16.7	14.1	35	5075	70	10150	140	20300	3.54	90	0.32
6.3	1/4	-04	6.2	7.0	12.1	13.3	16.7	18.3	15.7	35	5075	70	10150	140	20300	3.94	100	0.36
8	5/16	-05	7.7	8.5	13.7	14.9	18.3	19.8	17.3	29.7	4310	59.5	8630	119	17255	4.53	115	0.45
10	3/8	-06	9.3	10.1	16.1	17.3	20.6	22.2	19.7	28	4060	56	8120	112	16240	4.92	125	0.54
13	1/2	-08	12.3	13.5	19.0	20.6	23.8	25.4	23.1	24.5	3550	49	7110	98	14210	7.09	180	0.68
16	5/8	-10	15.5	16.7	22.2	23.8	27.0	28.6	26.3	19.2	2780	38.5	5580	77	11165	8.07	205	0.80
19	3/4	-12	18.6	19.8	26.2	27.8	31.0	32.5	30.2	15.7	2280	31.5	4570	63	9135	9.45	240	0.94
25	1	-16	25.0	26.4	34.1	35.7	38.5	40.9	38.9	14	2030	28	4060	56	8120	11.81	300	1.35
32	1 1/4	-20	31.4	33.0	43.2	45.6	49.2	52.4	49.6	11.3	1640	22.7	3290	45.5	6600	16.54	420	2.15
38	1 1/2	-24	37.7	39.3	49.6	52.0	55.6	58.7	56.0	8.7	1260	17.5	2540	35	5075	19.69	500	2.65
51	2	-32	50.4	52.0	62.3	64.7	68.3	71.4	68.6	7.8	1130	15.7	2280	31.5	4570	24.80	630	3.42

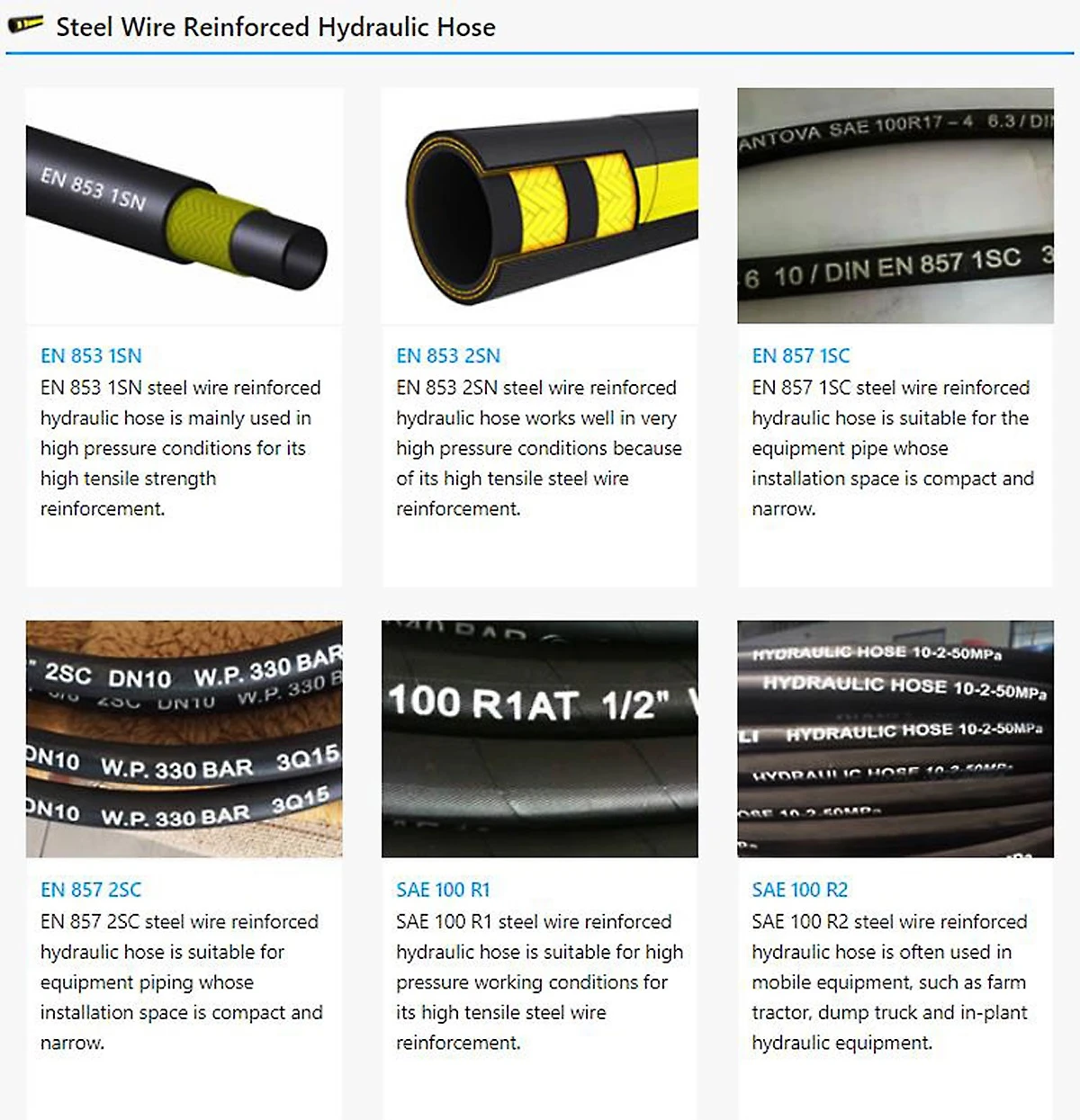

Hydraulic Hose	Reinforcement	Product Name
	One steel wire braided	SAE R1AT/DIN 1ST,DIN 1SNK,DIN/EN 1SN WG,DIN 1SC,SAE R5,SAE 100R17
	Two steel wire braided	SAE R2AT/DIN 2SN/DIN 2ST,DIN 2SNK,DIN 2SC
	One/two wire braided	SAE R16

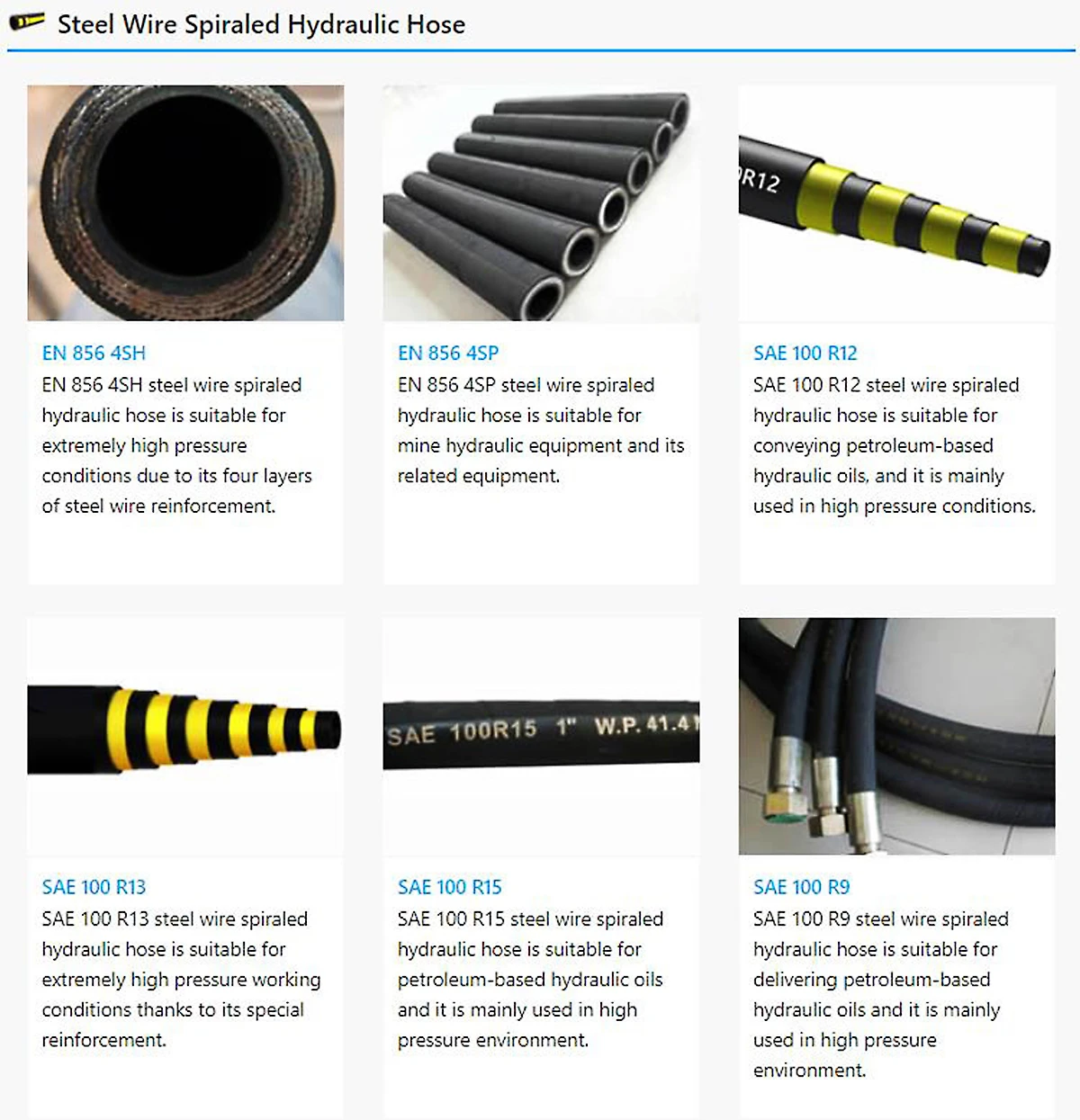

	Four steel wire spiral	SAE R9AT,SAE R10,SAE R12,DIN 4SP,DIN 4SH
	Four/six wire spiral	SAE R13,SAE R15
	Textile fiber braided	SAE R3,SAE R4,SAE R6,DIN 2TE
	High flexibility nylon or thermoplastic	SAE R7,SAE R8
Industrial Hose	Steam hose,Water/Air hose,Fuel/Oil hose,Washer hose





High-pressure rubber hose hydraulic oil pipe is mainly used for mine hydraulic support, oil field development, suitable for engineering construction, lifting and transportation, metallurgical forging, mining equipment, ships, injection molding machinery, agricultural machinery, various machine tools and various industrial departments mechanization, automatic hydraulic, etc.







1. Long History - 15 years experience in high-pressure SAE hydraulic hoses & low-pressure industrial rubber hoses area.
2. OEM Service - We provide professional OEM service.
3. Wonderful Team - Sales team to offer fast response and trading professional consultation service.
4. High Quality - All rubber hoses are made of high-quality rubber raw material, such as NBR, SBR, EPDM, NR etc.
5. Pickiest Quality Control - Our pickiest quality control team always make sure every hose is top grade in quality.
6. Checking - We check the details of rubber hoses to make sure goods is a fine before deliver to you.



Hot Tags: Sae100 R2AT, China Sae100 R2AT manufacturers, suppliers, factory, construction wire braid hose, wire braid hose, rating wire braid hose, connecting hose wire braid, sell wire braid hose, excavator hydraulic hose
