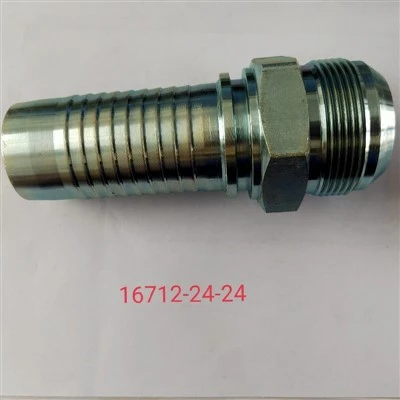

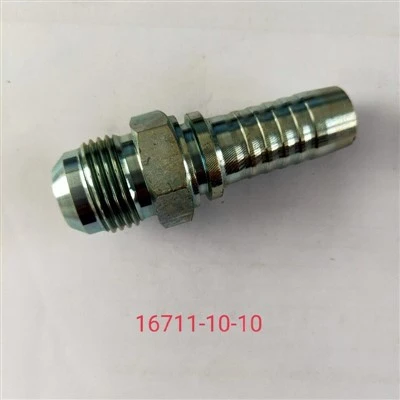

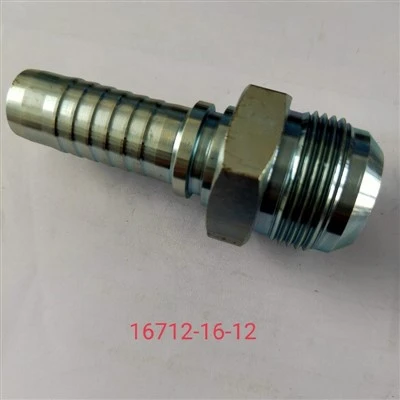

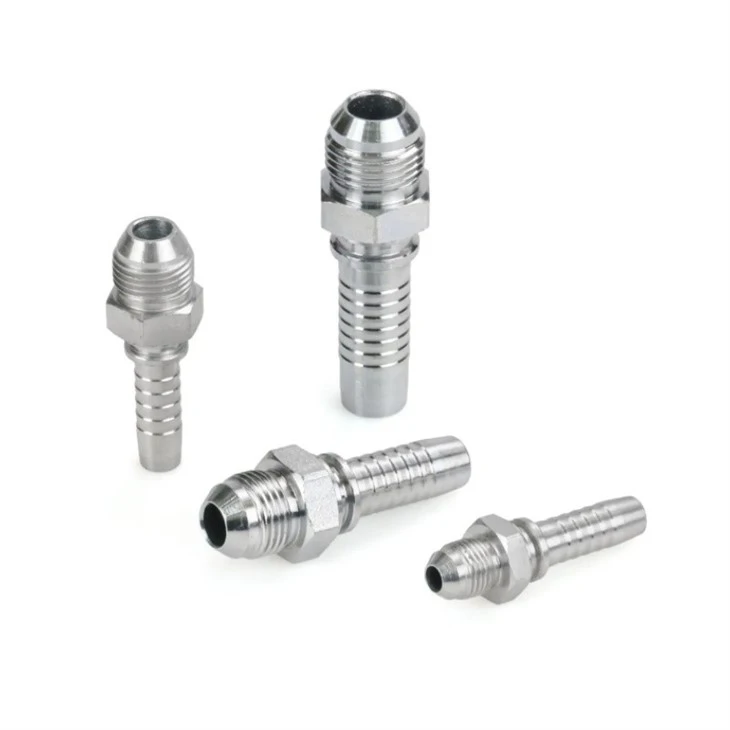

16711 JIC MALE 74° CONE SEAT FITTING
Material:Carbon steel , Stainless steel etc
Color:Silver or Yellow
OEM:Accept OEM
Description

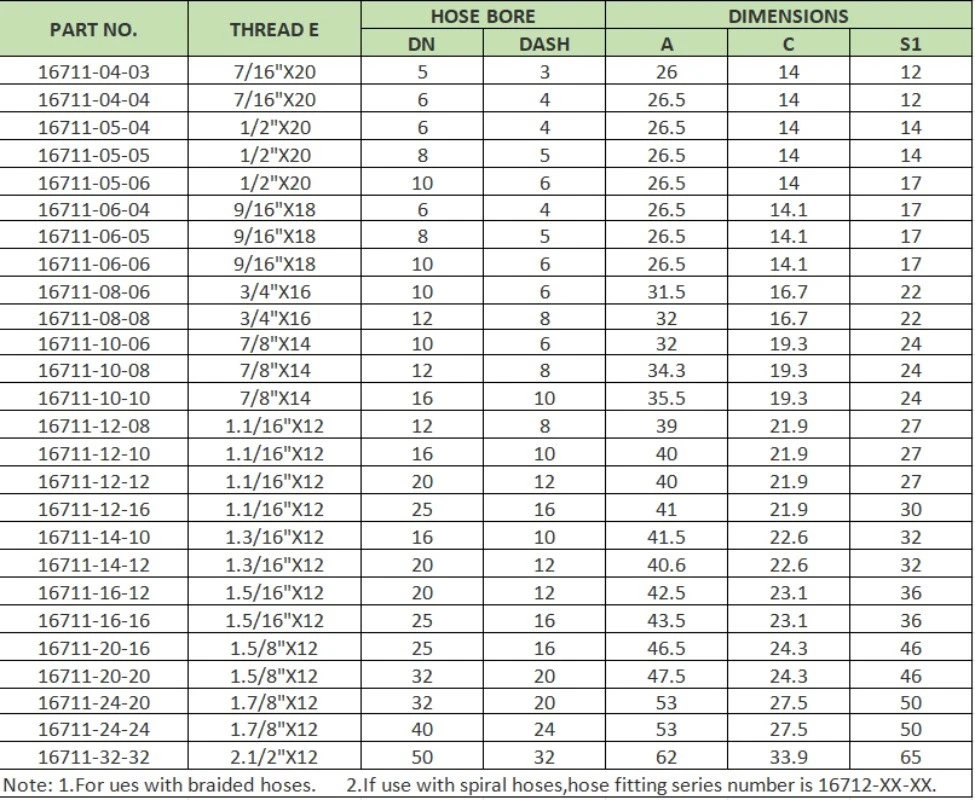

Part No.: 16711
Description: JIC MALE 74° CONE SEAT FITTING ISO 8434-2-SAE J514
|
Material |
Carbon steel , Stainless steel etc |
|
Color |
Silver or Yellow |
|
Thread Size |
British Fitting : G 1/8" x 28 -- G 2" x 11American Fitting : 7/16" x 20 -- 2.1/2" x 12
Metric Fitting :M12*1.5, M14*1.5, M16*1.5, M18*1.5, M20*1.5, M22*1.5, M24*1.5, M26*1.5, M27*1.5, M30*2, M3*2, M42*2, M45*2, M52*2 Flange : 1/2" -- 2.1/2" Ferrule : 3/16" - 2" |
|
Hose Bore |
DN 5 -- DN 51 or 3/16" -- 2" |
|
OEM |
Yes , We Accept OEM |
|
Certificate |
IS09001:2008 |
|
Type |
Elbow, tee , union , connector , coupling , cross , etc |
|
Surface Treatment |
Trivalent zinc plus closed , trivalent chromium zinc , chrome plate , zn-ni , etc |
|
Salt Spray Test |
36 hours , 72 hours , 96 hours , 144 hours |
|
Application |
Use with Braided/Spiral Hoses , Physical Construction , Hydraulic Installation,Auto Parts... |
Hot Tags: 16711 jic male 74° cone seat fitting, China 16711 jic male 74° cone seat fitting manufacturers, suppliers, factory, coupling hose fittings, new hose fittings, designed for hose fittings, miniature hose fittings, custom hose fittings, top mounted hose fittings
