Description
Part No.: 15611/15611-SW/15612
Features:
*Available Material: Steel & Zinc Plated, Brass, Stainless Steel
*Inspected threads, dimensions, Remove burrs, Material cert.
* Available sizes are from 3/4x 18 to 2 X 11.5.
|
Our advantage |
1. High quality. 2. A lot of stock. 3. Prompt delivery.
4. Factory. Products produced by ourselves. |
|
Delivery time |
About 1 month if do not have stock. |
|
Customize service |
We can produce according to your drawings and samples. |
|
Packing details |
Nylon plastic + corrugated carton + pallet |

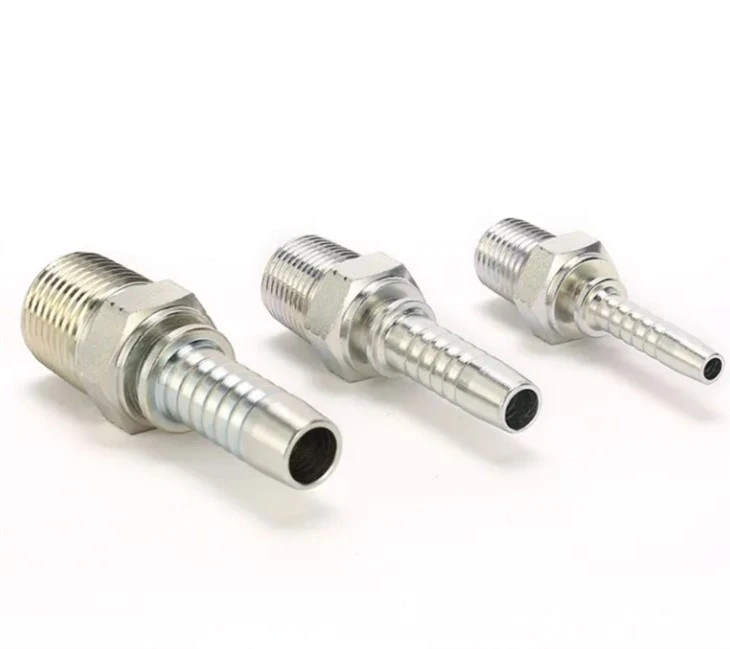

Description: NPT MALE HYDRAULIC HOSE FITTING
| PART NO. | THREADE | HOSE BORE | DIMENSIONS | |||
| DN | DASH | A | C | S1 | ||
| 15611-02-03 | Z1/8X27 | 5 | 3 | 22.5 | 10.5 | 12 |
| 15611-02-04 | Z1/8"X27 | 6 | 4 | 22.5 | 10.5 | 12 |
| 15611-04-03 | Z1/4~X18 | 5 | 3 | 27.5 | 15 | 17 |
| 15611-04-04 | 21/4~X18 | 6 | 4 | 28 | 15 | 17 |
| 15611-04-05 | Z1/4"X18 | 8 | 5 | 28 | 15 | 17 |
| 15611-04-06 | Z1/4"X18 | 10 | 6 | 27 | 15 | 17 |
| 15611-06-04 | Z3/8"X18 | 6 | 4 | 28 | 16 | 19 |
| 15611-06-05 | Z3/8"X18 | 8 | 5 | 28 | 16 | 19 |
| 15611-06-06 | Z3/8X18 | 10 | 6 | 30 | 16 | 19 |
| 15611-06-08 | Z3/8"X18 | 12 | 8 | 30.5 | 16 | 19 |
| 15611-08-06 | Z1/2"X14 | 10 | 6 | 34.5 | 19.5 | 22 |
| 15611-08-08 | Z1/2"X14 | 12 | 8 | 34.5 | 19.5 | 22 |
| 15611-08-10 | Z1/2"X14 | 16 | 10 | 36 | 19.5 | 22 |
| 15611-12-08 | Z3/8"X14 | 12 | 8 | 37.5 | 19.5 | 27 |
| 15611-12-10 | Z3/4~X14 | 16 | 10 | 38 | 19.5 | 27 |
| 15611-12-12 | Z3/4"X14 | 20 | 12 | 38.5 | 19.5 | 27 |
| 15611-12-16 | Z3/4X14 | 25 | 16 | 39.5 | 19.5 | 32 |
| 15611-16-10 | Z1"x11.5 | 16 | 10 | 45 | 25.5 | 36 |
| 15611-16-12 | Z1"x11.5 | 20 | 12 | 45 | 25.5 | 36 |
| 15611-16-16 | Z1"x11.5 | 25 | 16 | 44.5 | 25.5 | 36 |
| 15611-20-16 | Z1.1/4"X11.5 | 25 | 16 | 49.5 | 26.5 | 46 |
| 15611-20-20 | Z1.1/4"X11.5 | 32 | 20 | 49 | 26.5 | 46 |
| 15611-24-24 | Z1.1/2"X11.5 | 40 | 24 | 51 | 27.5 | 50 |
| 15611-32-32 | Z2"X11.5 | 50 | 32 | 55 | 27.5 |
65 |
| Note: 1.For ues withbraided hoses.2.lfusewithspiralhoses,hosefitingseriesnumber is15612-xx-xx. | ||||||
| Number：15611SW | |||||
| Name：NPT Swivel Male | |||||
| PART NO. | HREAD E | HOSE BORE | DIMENSIONS | ||
| DN | DASH | A | S2 | ||
| 15611SW-04-04 | Z1/4"X18 | 6 | 4 | 56 | 19 |
| 15611SW-06-06 | Z3/8"X18 | 10 | 6 | 60 | 22 |
| 15611SW-08-08 | Z1/2"X14 | 12 | 8 | 66 | 27 |
| 15611SW-12-12 | Z3/4"X14 | 20 | 12 | 68.4 | 32 |
| Note: 1.For ues with braided hoses. 2.If use with spiral hoses,hose fitting series number is15612SW-XX-XX. | |||||
