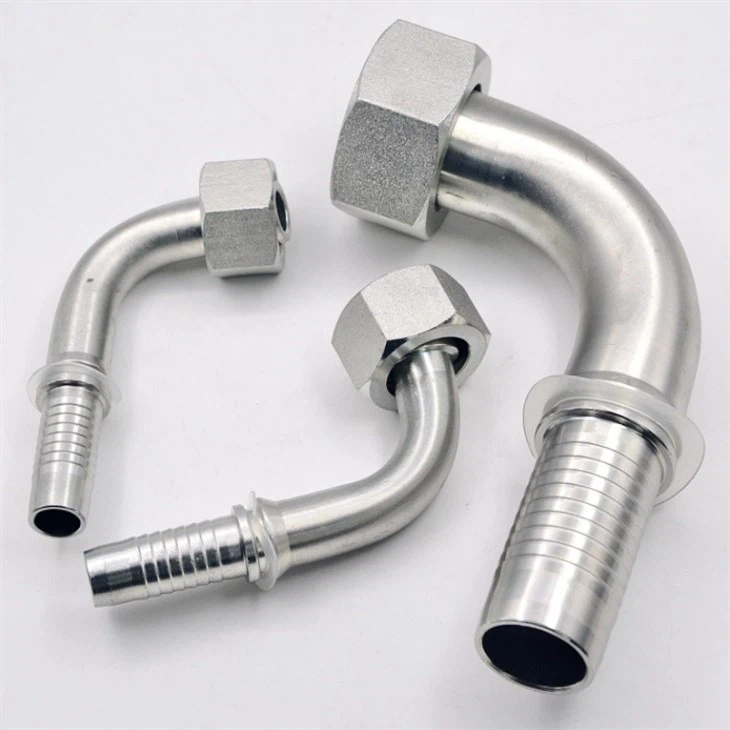

20491 90° Metric Female 24°Cone O-ring Seal Fitting

90° Metric Female 24°Cone O-ring L.T./H.T. Seal Fitting

Part No.: 20491 / 20491-T 20591/20591-T

Description: 90° Metric Female 24°Cone O-ring Light Seal Fitting; 90° Metric Female 24°Cone O-ring Heavy Seal Fitting

Specifications:

20491 90° O-RING METRIC FEMALE 24° CONE SEAL L.T.

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	H	S2
20491-12-03	M12X1.5	5	3	6	O04.5X1.5	26.5	1	41.5	17
20491-12-04	M12X1.5	6	4	6	O04.5X1.5	30	1	44.5	17
20491-14-04	M14X1.5	6	4	8	O06.5X1.5	30	2	46	19
20491-16-04	M16X1.5	6	4	10	O08.0X1.5	30	2	46.5	22
20491-16-05	M16X1.5	8	5	10	O08.0X1.5	33	2	49.5	22
20491-16-06	M16X1.5	10	6	10	O08.0X1.5	35.3	2	51.8	22
20491-18-06	M18X1.5	10	6	12	O10.0X1.5	35.3	2.5	53.3	24
20491-22-08	M22X1.5	12	8	15	O12.0X2.0	41	2.5	61	27
20491-26-10	M26X1.5	16	10	18	O15.0X2.0	56.5	2.5	67.5	32
20491-26-12	M26X1.5	20	12	187	O15.0X2.0	65.5	2.5	77	32
20491-27-12	M27X1.5	20	12	18	O15.0X2.0	65.5	2.5	77	32
20491-30-12	M30X2	20	12	22	O20.0X2.0	65.5	4	80	36
20491-18-05T	M18X1.5	8	5	12	O10.0X1.5	33	2.5	42	22
20491-22-06T	M22X1.5	10	6	15	O12.0X2.0	35.3	2.5	47.3	27
20491-26-08T	M26X1.5	12	8	18	O15.0X2.0	42	2.5	51	32
20491-27-10T	M27X1.5	16	10	18	O15X2.0	56.5	2.5	67.5	32
20491-30-10T	M30X2	16	10	22	O20.0X2.0	56.5	4	57.2	36
20491-36-12T	M36X2	20	12	28	O26.0X2.0	65.5	4	69	41
20491-36-14T	M36X2	22	14	28	O26.0X2.0	71.2	4	70	41
20491-45-16T	M45X2	25	16	35	O32.0X2.5	76.7	5	75	55
20491-45-20T	M45X2	32	20	35	O32.0X2.5	91.5	5	88.5	55
20491-52-20T	M52X2	32	20	42	O38.0X2.5	93	5.5	87	60
20491-52-24T	M52X2	40	24	42	O38.0X2.5	109.4	5.5	104	60
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20492-xx-xx;

20591

Specifications:

20591 90° O-RING METRIC FEMALE 24° CONE SEAL H.T. FITTING

PART NO.	THREAD E	HOSE BORE		TUBE O.D.	O RING	DIMENSIONS
PART NO.	THREAD E	DN	DASH	TUBE O.D.	O RING	A	C	H	S2
20591-14-04	M14.X1.5	6	4	6	O04.5X1.5	30	1.1	47.5	19
20591-16-04	M16X1.5	6	4	8	O06.5X1.5	30	1.5	48	22
20591-16-05	M16X1.5	8	5	8	O06.5X1.5	33	1.5	51	22
20591-18-06	M18X1.5	10	6	10	O08.0X1.5	35.5	2	52.8	24
20591-20-08	M20X1.5	12	8	12	O10.0X1.5	41	2.5	61	27
20591-22-08	M22X1.5	12	8	14	O11.0X2.0	41	2.5	61	27
20591-24-10	M24X1.5	16	10	16	O13.0X2.0	56.5	2.5	67.5	30
20591-30-12	M30X2	20	12	20	O16.3X2.4	65.5	3	81	36
20591-18-05T	M18X1.5	8	5	10	O08.0X1.5	33	2	41.5	22
20591-20-06T	M20X1.5	10	6	12	O10.0X1.5	35.8	2.5	46.3	24
20591-22-06T	M22X1.5	10	6	14	O11.0X2.0	35.3	2.5	46.8	27
20591-24-08T	M24X1.5	12	8	16	O13.0X2.0	41	3	53	30
20591-30-10T	M30X2	16	10	20	O16.3X2.4	56.5	3	60.5	36
20591-36-12T	M36X2	20	12	25	O20.3X2.4	66.2	3	70	41
20591-36-14T	M36X2	22	14	25	O20.3X2.4	71.2	3	71	41
20591-42-16T	M42X2	25	16	30	O25.3X2.4	78	5	77.5	50
20591-52-20T	M52X2	32	20	38	O33.3X2.4	93	6.5	89	60
20591-52-24T	M52X2	40	24	38	O33.3X2.4	109.4	6.5	103	60
Note: 1.For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20592-xx-xx;
