Sae100 R12

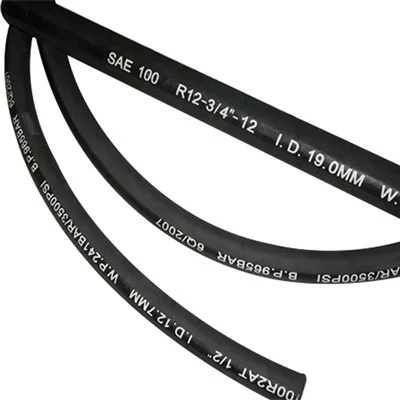

SAE 100 R12 Heavy duty, high impulse, four steel spiral wire reinforced, rubber covered hydraulic hose





This hose shall consists of an inner tube of oil resistant synthetic rubber, four spiral plies of steel wire wrapped in alternating directions, and an oil and weather resistant synthetic rubber cover.





SIZE		SAE	I.D		W.D		O.D		W. P		P.P		B.P		min B.R		W.T
mm	inch	Dash	Min	Max	Min	Max	Min	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
10	3/8	-06	9.3	10.1	16.6	17.8	19.5	21.0	28	4060	56	8120	112	16240	4.92	125	0.70
13	1/2	-08	12.3	13.5	19.9	21.5	23.0	24.6	28	4060	56	8120	112	16240	7.09	180	0.83
16	5/8	-10	15.5	16.7	23.8	25.4	26.6	28.2	28	4060	56	8120	112	16240	7.87	200	1.12
19	3/4	-12	18.6	19.8	26.9	28.7	29.9	31.7	28	4060	56	8120	112	16240	9.45	240	1.43
25	1	-16	25.0	26.4	34.1	36.0	36.8	39.4	28	4060	56	8120	112	16240	11.81	300	2.00
32	1 1/4	-20	31.4	33.0	42.7	45.1	45.4	48.6	21	3045	42	6090	84	12180	16.54	420	2.80
38	1 1/2	-24	37.7	39.3	49.2	51.6	51.9	55.0	17.5	2540	35	5075	70	10150	19.69	500	3.40
51	2	-32	50.8	52.0	62.5	64.8	65.1	68.3	17.5	2540	35	5075	70	10150	25.20	640	4.25





SAE 100R12 is a standard for high-pressure hydraulic hoses that are designed for use in heavy-duty applications where high temperatures and pressures are encountered. These hoses are often used in mining, oil drilling, and other demanding environments. Here are some key features and applications of SAE 100R12 hydraulic hoses:



**Features:**

- **Inner Tube Material:** SAE 100R12 hoses typically have an inner tube made from synthetic rubber or thermoplastic materials, which provide resistance to abrasion, ozone, and a wide range of chemicals.

- **Reinforcement:** The reinforcement of these hoses is typically a braided steel wire, which provides high pressure resistance.

- **Cover Material:** The outer cover of SAE 100R12 hoses is also made from synthetic rubber or thermoplastic materials, which protect the reinforcement and provide additional resistance to abrasion and chemicals.

- **High-Temperature Resistance:** These hoses are designed to handle high temperatures, which can be found in some heavy-duty applications.

- **Pressure Rating:** SAE 100R12 hoses are rated for higher pressures than some other hydraulic hose standards, making them suitable for high-pressure applications.





- **Mining:** SAE 100R12 hoses are used in mining operations for hydraulic systems on machinery like drills, loaders, and excavators.

- **Oil Drilling:** These hoses are used in oil drilling rigs for high-pressure hydraulic systems.

- **Industrial Machinery:** They are used in industrial machinery where high-pressure hydraulic systems are required.

- **Agriculture:** In agriculture, SAE 100R12 hoses may be used for heavy-duty machinery like tractors and harvesters.
