Hey there! As a supplier of wire spiral hoses, I often get asked about the compression strength of these hoses. It's a crucial factor to consider when choosing the right hose for your application, so I thought I'd dive into it and share some insights.
First off, let's understand what compression strength means in the context of wire spiral hoses. Compression strength refers to the ability of the hose to withstand external pressure without collapsing or deforming. This is especially important in applications where the hose may be subjected to high levels of pressure, such as in hydraulic systems.
The compression strength of a wire spiral hose is influenced by several factors. One of the primary factors is the construction of the hose. Wire spiral hoses typically consist of an inner tube, one or more layers of wire reinforcement, and an outer cover. The type and number of wire layers can significantly impact the hose's compression strength.
For example, hoses with multiple layers of wire reinforcement generally have higher compression strength compared to those with a single layer. This is because the additional layers of wire provide more support and resistance to deformation. Additionally, the quality of the wire used in the reinforcement also plays a role. High-quality wire with good tensile strength will contribute to a stronger and more durable hose.
Another factor that affects compression strength is the diameter of the hose. Generally, larger diameter hoses have lower compression strength compared to smaller diameter hoses. This is because the larger the diameter, the more surface area there is for the external pressure to act on, making the hose more susceptible to collapse. However, it's important to note that this is not always the case, as other factors such as the construction and material of the hose also come into play.
The material of the inner tube and outer cover can also impact the compression strength of the hose. Different materials have different properties, such as flexibility, chemical resistance, and abrasion resistance. Some materials may be more suitable for applications where high compression strength is required, while others may be better suited for applications where flexibility or chemical resistance is the primary concern.
Now, let's take a look at some specific types of wire spiral hoses and their compression strength. Two common types of wire spiral hoses are the Din En856 4sp and the Sae100 R12.

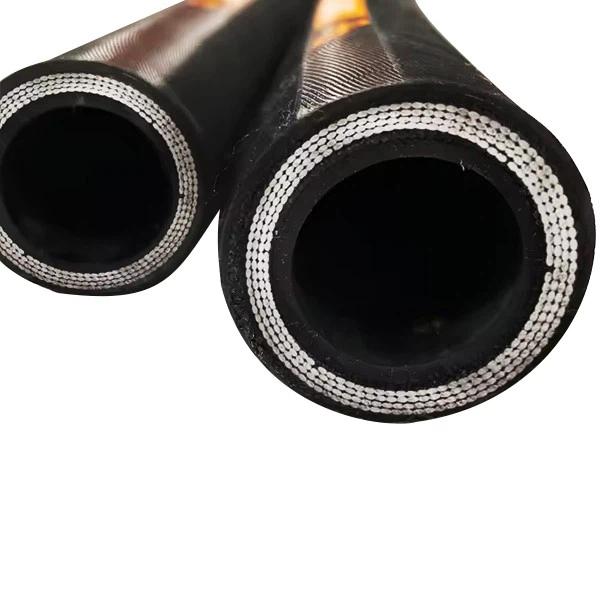

The Din En856 4sp hose is a four-wire spiral hydraulic hose that is designed for high-pressure applications. It has a high compression strength and is capable of withstanding pressures up to 420 bar. This makes it suitable for use in a variety of hydraulic systems, such as construction equipment, agricultural machinery, and industrial applications.
The Sae100 R12 hose is another popular type of wire spiral hose. It is a two-wire spiral hydraulic hose that is designed for medium to high-pressure applications. It has a compression strength of up to 250 bar and is commonly used in hydraulic systems where a lower pressure rating is required.

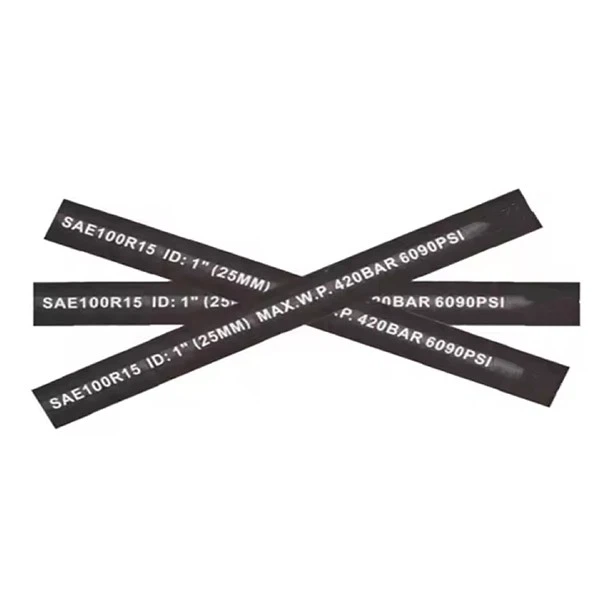

In addition to these two types of hoses, there is also the Sae100 R15 hose. The Sae100 R15 hose is a four-wire spiral hydraulic hose that is designed for high-pressure applications. It has a high compression strength and is capable of withstanding pressures up to 420 bar. This makes it suitable for use in a variety of hydraulic systems, such as construction equipment, agricultural machinery, and industrial applications.
When choosing a wire spiral hose for your application, it's important to consider the compression strength requirements. You need to determine the maximum pressure that the hose will be subjected to and choose a hose that has a compression strength rating that is higher than this pressure. This will ensure that the hose can withstand the pressure without collapsing or deforming, which could lead to leaks, failures, or other safety hazards.
It's also important to consider other factors such as the diameter of the hose, the material of the inner tube and outer cover, and the flexibility of the hose. These factors will all affect the performance and suitability of the hose for your specific application.
In conclusion, the compression strength of a wire spiral hose is an important factor to consider when choosing the right hose for your application. It is influenced by several factors, including the construction of the hose, the diameter of the hose, the material of the inner tube and outer cover, and the quality of the wire used in the reinforcement. By understanding these factors and choosing a hose with the appropriate compression strength rating, you can ensure that your hydraulic system operates safely and efficiently.
If you're in the market for wire spiral hoses and need help choosing the right one for your application, feel free to reach out. I'm here to assist you in finding the perfect hose that meets your specific requirements. Whether you need a high-pressure hose for heavy-duty applications or a medium-pressure hose for general use, I've got you covered. Let's have a chat and get your project on the right track!
