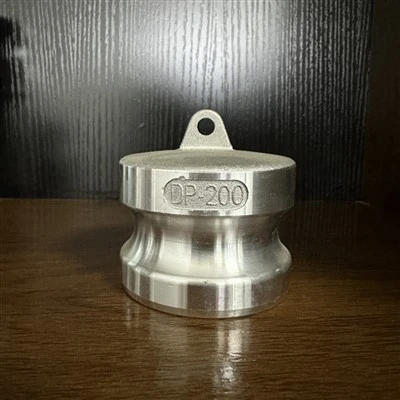

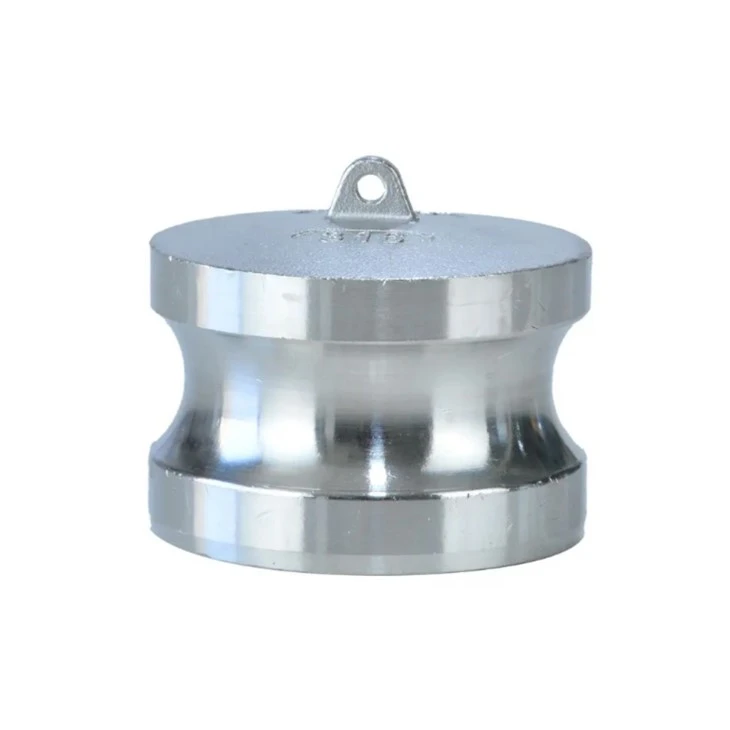

Camlock Coupling Type DP
Dust Plugs (DP) can be used with type B, Type C and D couplers to seal off the end of the connection
More Information
Size：1/2" up to 8"
Part Number：Type DP
Material：Aluminum
Thread：Male End Plug
Working Pressure：Not For Pressure (Safety Reasons)
Description
|
Aluminium camlock coupling |
Type DP Camlock Fitting

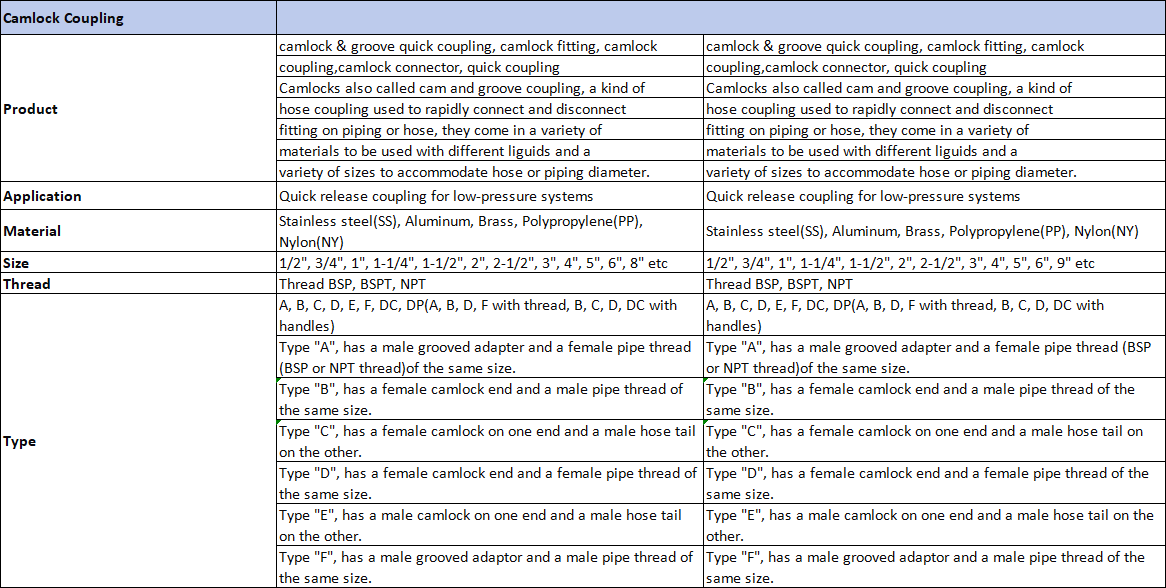

| Camlock Coupling | ||
| Product | camlock & groove quick coupling,fitting,camlock | |
| coupling,camlock connector, quick coupling | ||
| Camlocks also called cam and groove coupling | ||
| hose coupling used to rapidly connect and disconnect | ||
| fitting on piping or hose, they come in a variety of place | ||
| materials to be used with different liguids | ||
| variety of sizes to accommodate hose or piping diameter. | ||
| Application | Quick release coupling for low-pressure systems | |
| Material | Stainless steel(SS), Aluminum, Brass, Polypropylene(PP), Nylon(NY) |
|
| Size | 1/2",3/4",1",1-1/4", 1-1/2",2", 2-1/2", 3", 4", 5", 6", 8" etc | |
| Thread Type |
Thread BSP,BSPT,NPT | |

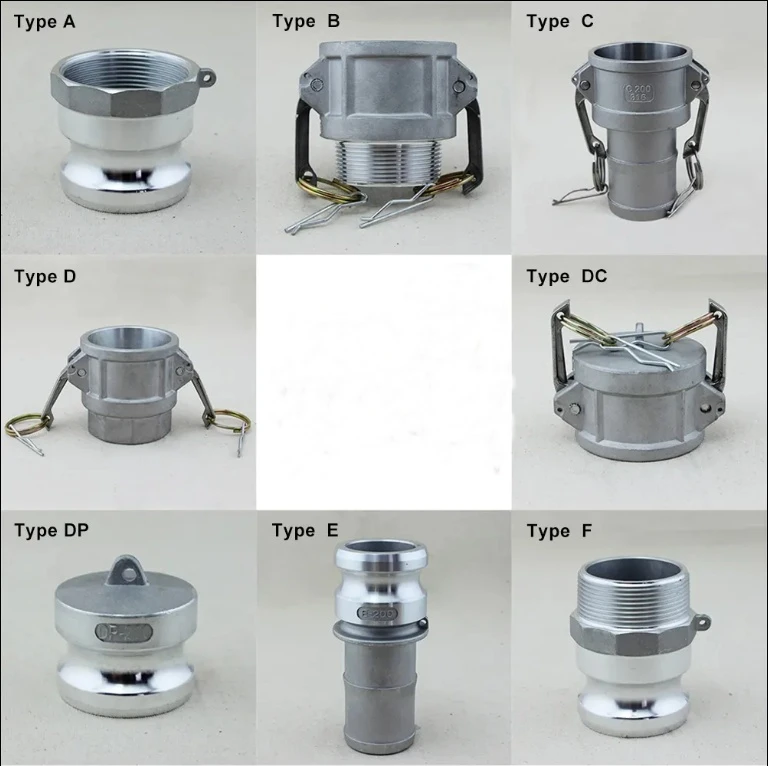

| A. B,C,D,E,F, DC, DP(A,B,D,F with thread, B, C,D,DC with handles) |
||
| Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size. |
||
| Type "B", has a female camlock end and a male pipe thread of the same size. |
||
| Type "C", has a female camlock on one end and a male hose tail on the other. |
||
| Type"D"has a female camlock end and a female pipe thread of the same size. |
||
| Type "E", has a male camlock on one end and a male hose tail on the other. |
||
| Type "F", has a male grooved adaptor and a male pipe thread of the same size. |
||
Application
* CamLock coupling is used in a wide variety of applications for petroleum handling,chemical processing, dry bulk
handling, agricultural, and water, etc.
* CamLock coupling are easy to connect and disconnect.
* CamLock coupling other materials are available on request.
Camlock Coupling Advantages
1)save both time and labor:when connect or disconnect oil-line,easy operation and save time and labor
2)save oil:when disconnect oil-line,the one-way valve on the quick coupling will cloase the oil-line,it can prevent oil spilling.
3)enviromental protection.
4)unique design for transportation:large equipments or liquid device,use quick coupling for its partion and transportation,after arrived at destination,assembly it.
5)low price:above design help customers save the money
Camlock Fitting Aluminum Type DP Technics Connector
