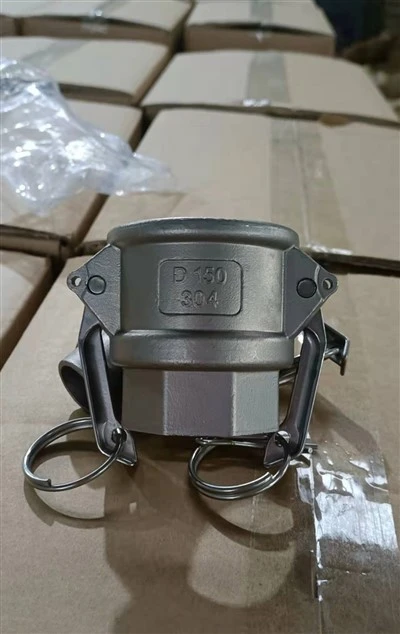

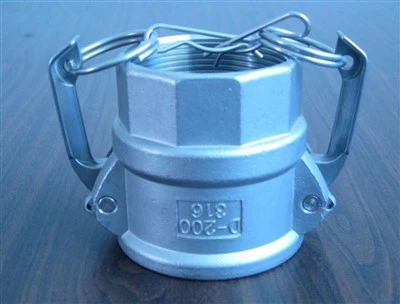

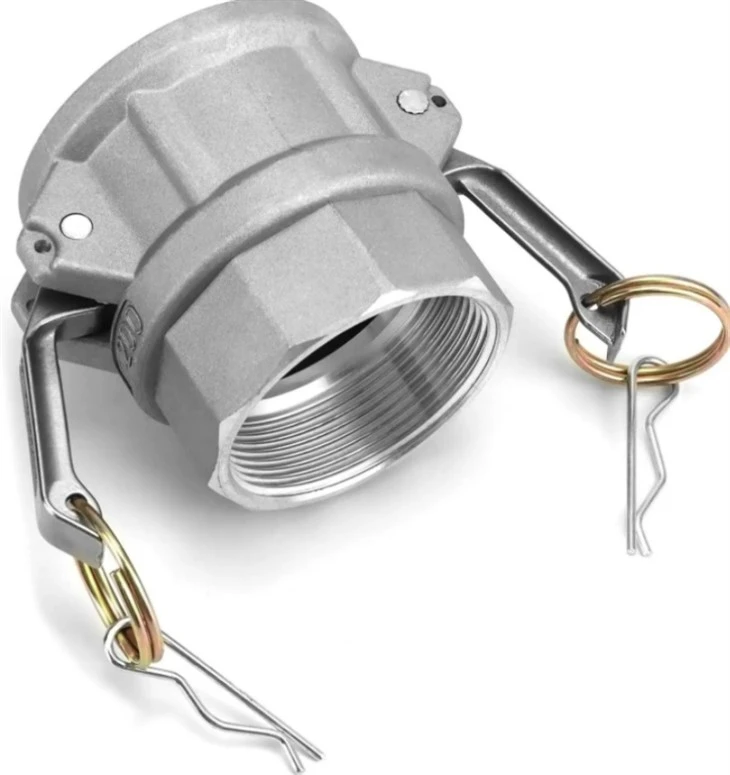

Camlock Coupling Type D

Aluminium Camlock Coupling Type D
This Stainless Coupler is offered in sizes starting from 1/2" all the way up to 8".
Type D Couplers are generally used with the same size Type A adapters,
However, they are also compatible with the same size Type E and Type F adapters.
They can be sealed and closed off with the same size Type DP (Dust Plug).

Characteristics: Weather-resistant and age-resistant
OEM:Support OEM customization

Send Inquiry

Description

Aluminium camlock coupling

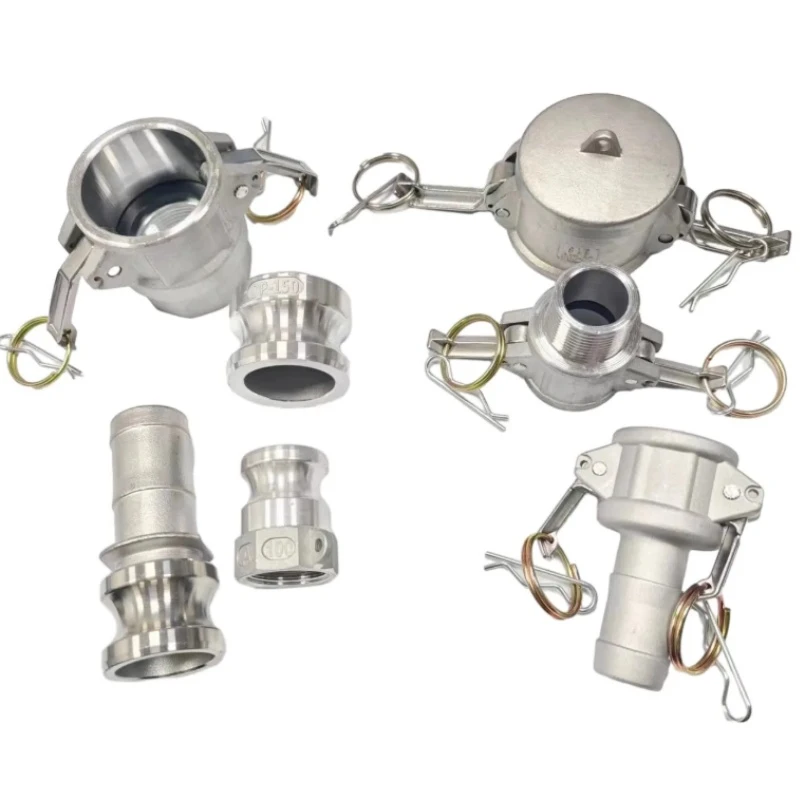

Type A B C D E F DC DP

Description：

Type D Aluminium camlock coupling

Camlock Coupling
Product	camlock & groove quick coupling, fitting,
	coupling,connector
	Camlocks also called cam and groove coupling, a kind of hose coupling used to rapidly connect and disconnect fitting on piping or hose, they come in a variety of materials to be used with different liguids and a variety of sizes to accommodate hose or piping diameter.
Application	Quick release coupling for low-pressure systems
Material	Stainless steel(SS), Aluminum, Brass, Polypropylene(PP)
Size	1/2", 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4", 5", 6", 8" etc
Thread	Thread BSP, BSPT, NPT
Type	A, B, C, D, E, F, DC, DP(A, B, D, F with thread, B, C, D, DC with handles)
Type	Type "A", has a male grooved adapter and a female pipe thread (BSP or NPT thread)of the same size. Type "B", has a female camlock end and a male pipe thread of the same size. Type "C", has a female camlock on one end and a male hose tail on the other. Type "D", has a female camlock end and a female pipe thread of the same size. Type "E", has a male camlock on one end and a male hose tail on the other. Type "F", has a male grooved adaptor and a male pipe thread of the same size.
