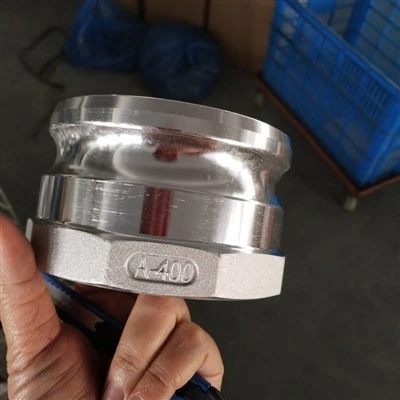

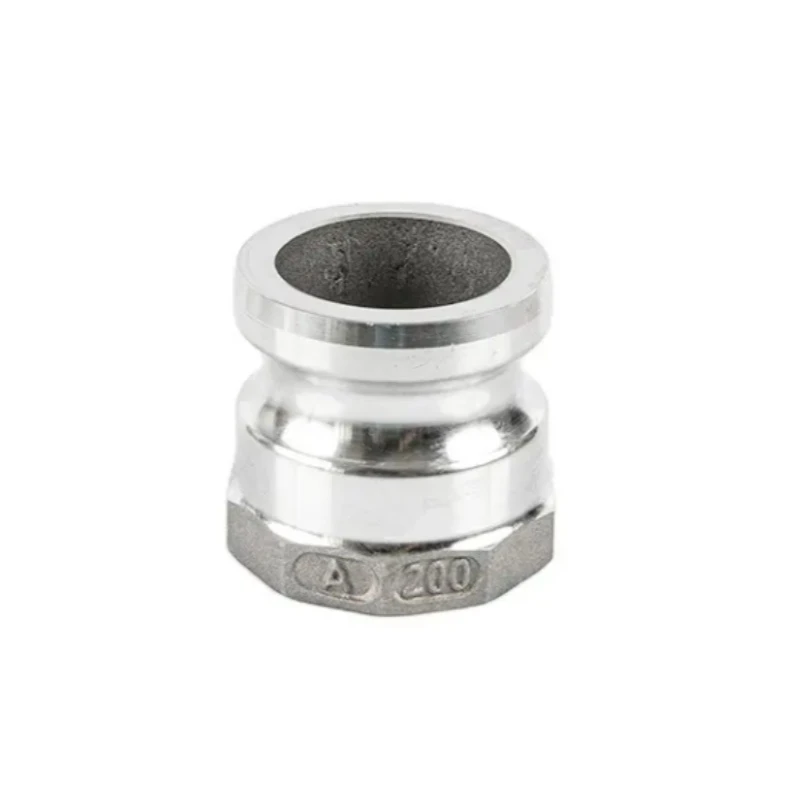

Camlock Coupling Type-A

Aluminium camlock coupling

Type A B C D E F DC DP

Description：

Aluminium camlock coupling

Aluminium camlock hose fittings(Engates Rapidos, Boss coupling) specifications:

Standard of our Aluminium cam and groove coupling:

>Our camlock coupling are made to standard of A - A-59326(previously called MIL-C-27487)or DIN 2828.DIN2817

Casting method of our Aluminium camlock coupling:

>Gravity casting

Body material of our Aluminium kamlock fitting:

>Aluminium

>Other material are available on request

Specification of our Aluminium camlock coupling:

>Sizes available:from 1/2" to 6"

1/2" 3/4" 1" 1-1/4" 1-1/2" 2" 2-1/2" 3" 4" 5" 6" 8"

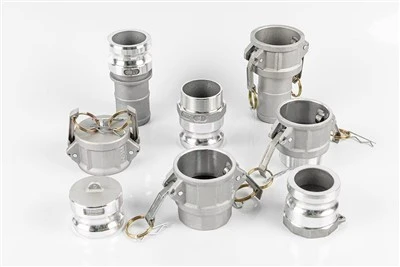

>Types available: A.B.C.D.E.F.DC.DP

Cam levers of our Aluminium camlock fitting:

>Aluminium.

Pins.Rings and Safety clips of our Aluminium kamlock:

>We use steel plated Pins,Rings and Safety clips.

(Note:Safety clips are only available when required by the client,the client have to pay additional if need safely clips)

Sealings of our acoples rapidos kamlock en acero inxidable:

>NBR

>EPDM

>Viton

>PTFE envelop gasket

Other materials are available on request.

Threads of our racores camlock en acero inxidable:

>NPT

>BSP(We usually make the female thread parallel BSPP.male thread tapered BSPT)
