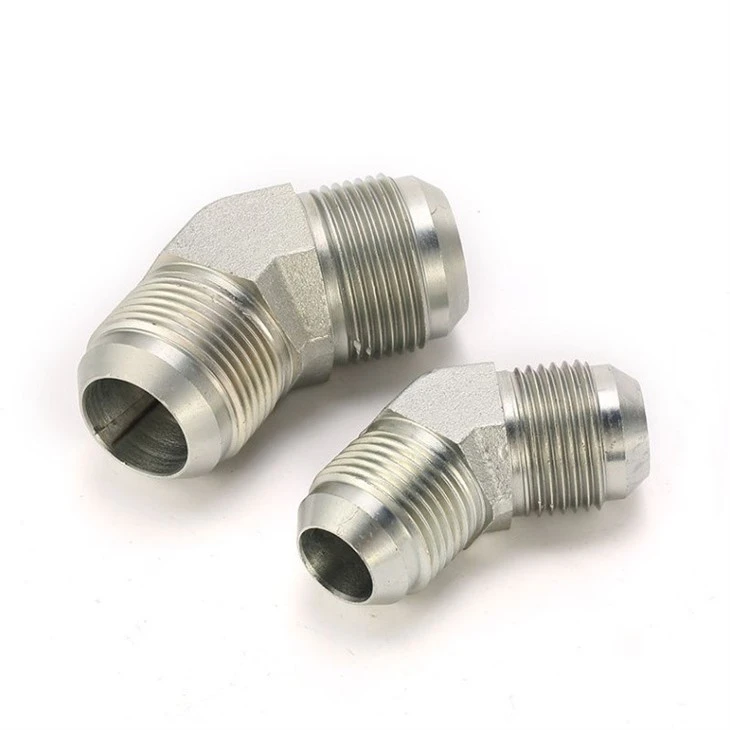

1J4 JIC Adapter



Description: Hydraulic Adapter Male JIC x Male JIC 45°



Part No.: 1J4



Features:

* Material: Carbon Steel

* Surface Treatment: Cr3+

* Salt Spray Test: 96h







代号 PART NO	螺纹 THREADE		尺寸 DIMENSIONS
	E		A	B	S1
1J4-04	U7/16X20		20	20	11
1J4-05	U1/2"X20		22	22	14
1J4-06	U9/16"X18		22	22	14
1J4-08	U3/4"X16		25	25	19
1J4-10	U7/8"X14		27	27	22
1J4-12	U1.1/16"X12		33	33	27
1J4-16	U1.5/16"X12		37	37	33
1J4-20	U1.5/8"X12		40	40	44
1J4-24	U1.7/8"X12		47	47	53
1J4-32	U2.1/2"X12		55	55	65

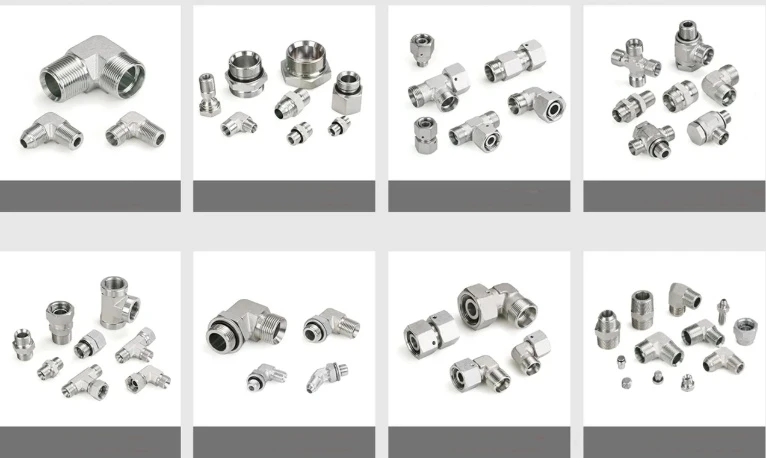

Our Products:
