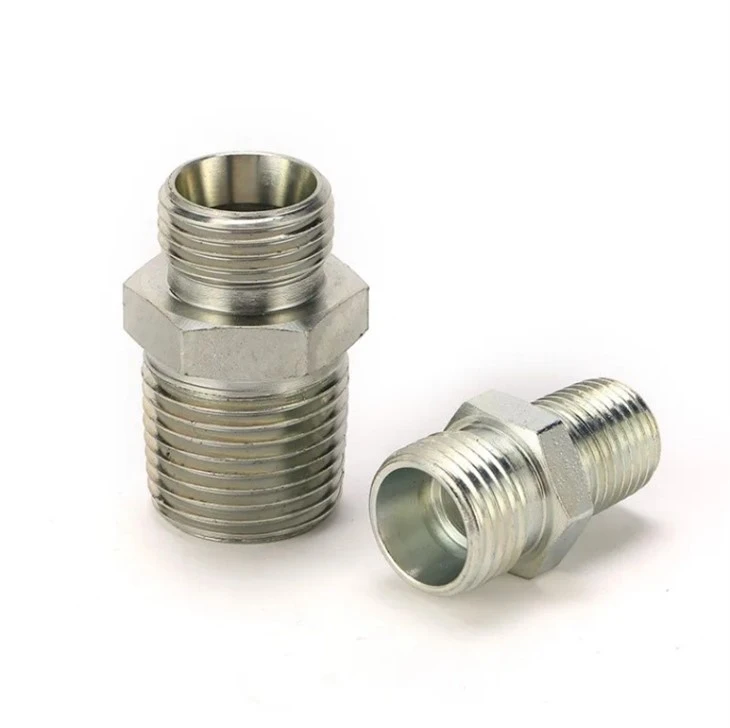

1CT / 1DT METRIC MALE /BSPT MALE HYDRAULIC ADAPTER
1CT / 1DT Metric DIN2353 to BSPT Adapter
Description
Description:

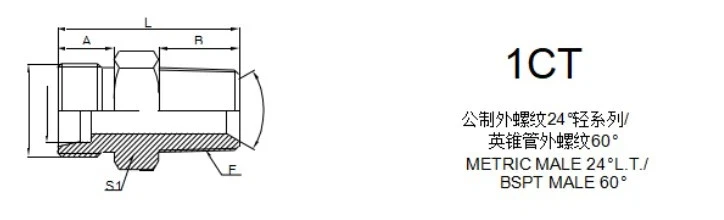

1CT METRIC MALE 24°L.T./BSPT MALE HOSE ADAPTER

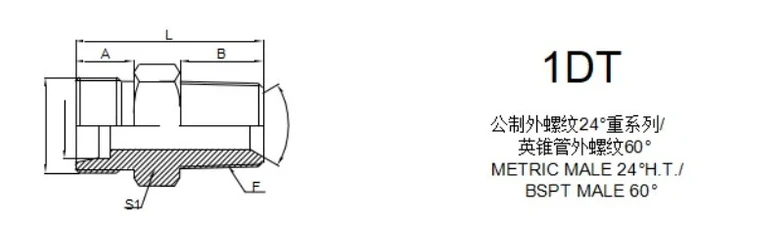

1DT METRIC MALE 24°H.T./BSPT MALE HOSE ADAPTER
Part No.: 1CT/ 1DT
1CT / 1DT Metric DIN2353 to BSPT Hydraulic Hose Adapter
| PART NO. | THREADE | THREADE | OD | TUBE | DIMENSIONS | |||
| E | F | D | A | B | S1 | L | ||
| 1CT-12-02 | M12x1.5 | ZG1/8"X28 | 6 | 10 | 10 | 12 | 26 | |
| 1CT-12-04 | M12x1.5 | ZG1/4"X19 | 6 | 10 | 14 | 14 | 31 | |
| 1CT-14-04 | M14x1.5 | ZG1/4"X19 | 8 | 11 | 14 | 14 | 31 | |
| 1CT-16-04 | M16x1.5 | ZG1/4"X19 | 10 | 11 | 14 | 17 | 32.5 | |
| 1CT-16-06 | M16x1.5 | ZG3/8"X19 | 10 | 11 | 14 | 17 | 32.5 | |
| 1CT-18-04 | M18x1.5 | ZG1/4"X19 | 12 | 11.5 | 14 | 19 | 31.5 | |
| 1CT-18-06 | M18x1.5 | ZG3/8"X19 | 12 | 11.5 | 14 | 19 | 31.5 | |
| 1CT-18-08 | M18x1.5 | ZG1/2"X14 | 12 | 11.5 | 19 | 22 | 38 | |
| 1CT-22-08 | M22x1.5 | ZG1/2"X14 | 15 | 12.5 | 19 | 24 | 39 | |
| 1CT-22-20 | M22x1.5 | ZG1.1/4"X11 | 15 | 12.5 | 25 | 46 | 50.5 | |
| 1CT-26-08 | M26x1.5 | ZG1/2"X14 | 18 | 12 | 19 | 27 | 40 | |
| 1CT-26-12 | M26x1.5 | ZG3/4"X14 | 18 | 12 | 19.5 | 27 | 40 | |
| 1CT-30-08 | M30x2 | ZG1/2"X14 | 22 | 14 | 19 | 32 | 43 | |
| 1CT-30-12 | M30x2 | ZG3/4"X14 | 22 | 14 | 19.5 | 32 | 43.5 | |
| 1CT-36-16 | M36x2 | ZG1"X11 | 28 | 16 | 24 | 36 | 51 | |
| 1CT-36-20 | M36x2 | ZG1.1/4"X11 | 28 | 16 | 25 | 46 | 54 | |
| 1CT-45-20 | M45x2 | ZG1.1/4"X11 | 35 | 18 | 25 | 46 | 56 | |
| 1CT-52-20 | M52x2 | ZG1.1/4"X11 | 42 | 19 | 25 | 55 | 61 | |
| 1CT-52-24 | M52x2 | ZG1.1/2"X11 | 42 | 19 | 25 | 55 | 61 |
| 代号 | |||||||
| PART NO. | 螺纹 | THREADE | 管子外径TUBE | 尺寸 DIMENSIONS | |||
| E | F | D | A | B | S1 | L | |
| 1DT-14-04 | M14x1.5 | ZG1/4"X19 | 6 | 12 | 14 | 14 | 32 |
| 1DT-16-04 | M16x1.5 | ZG1/4"X19 | 8 | 12 | 14 | 17 | 32 |
| 1DT-18-04 | M18x1.5 | ZG1/4"X19 | 10 | 12 | 14 | 19 | 32 |
| 1DT-18-06 | M18x1.5 | ZG3/8"X19 | 10 | 12 | 14 | 19 | 32 |
| 1DT-20-04 | M20x1.5 | ZG1/4"X19 | 12 | 12 | 14 | 22 | 33 |
| 1DT-20-06 | M20x1.5 | ZG3/8"X19 | 12 | 12 | 14 | 22 | 33 |
| 1DT-20-08 | M20x1.5 | ZG1/2"X14 | 12 | 12 | 19 | 22 | 38 |
| 1DT-22-08 | M22x1.5 | ZG1/2"X14 | 14 | 14 | 19 | 24 | 41 |
| 1DT-24-08 | M24x1.5 | ZG1/2"X14 | 16 | 14 | 19 | 27 | 42 |
| 1DT-30-12 | M30x2 | ZG3/4"X14 | 20 | 16 | 19.5 | 32 | 45.5 |
| 1DT-36-16 | M36x2 | ZG1"X11 | 25 | 18 | 24 | 36 | 53 |
| 1DT-42-16 | M42x2 | ZG1X11 | 30 | 20 | 24 | 46 | 57 |
| 1DT-42-20 | M42x2 | ZG1.1/4"X11 | 30 | 20 | 25 | 46 | 53 |
| 1DT-52-24 | M52x2 | ZG1.1/4"X11 | 38 | 22 | 25 | 55 | 64 |
