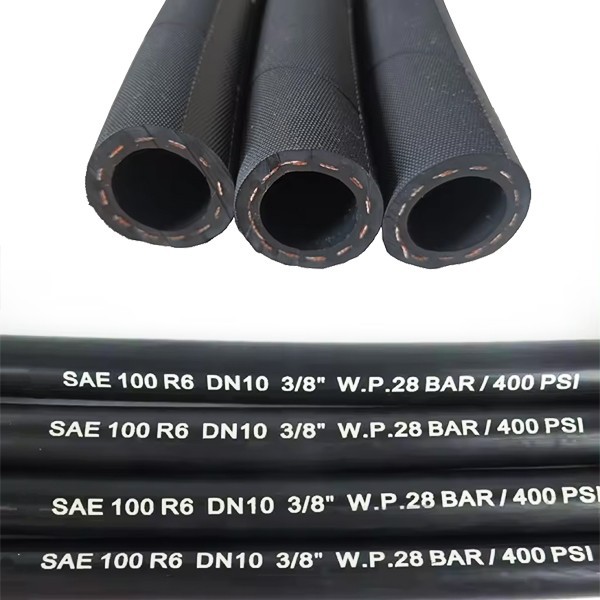

Din En854 1te Or Sae 100 R6
Construction of SAE 100 R6
Tube: oil resistant synthetic rubber.
Reinforcement: one high tensile textile braid.
Cover: abrasion, ozone, and hydrocarbon resistant synthetic rubber.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 1:4 Length: random.
Application: low-pressure hydraulic lines, fuel oil, antifreeze solutions, air, and water.
Description
CONSTRUCTION:
This hose shall consist of an inner tube of oil resistant synthetic tubber,one braid of suitable fiber,and an oil and weather resistant synthetic rubber cover.
|
SIZE |
SAE |
I.D |
O.D |
W. P |
P.P |
B.P |
min B.R |
W.T |
|||||||
|
mm |
inch |
Dash |
Min |
Max |
Min |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
inch |
mm |
Kg/m |
|
5 |
3/16 |
-03 |
4.5 |
5.4 |
10.3 |
11.9 |
3.5 |
510 |
7 |
1015 |
14 |
2030 |
1.97 |
50 |
1.10 |
|
6.3 |
1/4 |
-04 |
6.1 |
7.0 |
11.9 |
13.5 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
2.56 |
65 |
0.13 |
|
8 |
5/16 |
-05 |
7.6 |
8.5 |
13.5 |
15.1 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
2.95 |
75 |
0.15 |
|
10 |
3/8 |
-06 |
9.2 |
10.1 |
15.1 |
16.7 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
2.95 |
75 |
0.18 |
|
13 |
1/2 |
-08 |
12.4 |
13.5 |
19.0 |
20.6 |
2.8 |
410 |
5.6 |
810 |
11.2 |
1620 |
3.94 |
100 |
0.26 |
|
16 |
5/8 |
-10 |
15.6 |
16.7 |
22.2 |
23.8 |
2.4 |
350 |
4.9 |
710 |
9.8 |
1420 |
4.92 |
125 |
0.31 |
|
19 |
3/4 |
-12 |
18.7 |
19.8 |
25.4 |
27.8 |
2.1 |
310 |
4.2 |
610 |
8.4 |
1220 |
5.91 |
150 |
0.40 |
APPLICATIONS:
DIN EN854 1TE and SAE 100R6 are standards for low-pressure hydraulic hoses that are used in similar applications. Both types of hoses are designed for general-purpose use where the pressure requirements are not as high as those for medium or high-pressure hoses.
**DIN EN854 1TE / SAE 100R6:**
- It is typically used for low-pressure hydraulic applications, such as in industrial equipment, light-duty industrial, agricultural machinery, and some automotive systems.
- The 1TE hose is known for its good flexibility and resistance to abrasion.
- It is suitable for use with water-based fluids, as well as oil-based fluids.
- The R6 hose is also flexible and easy to install, but it may have different performance characteristics compared to the 1TE, depending on the specific manufacturer's specifications.
In practice, DIN EN854 1TE and SAE 100R6 hoses are often interchangeable, especially in less critical applications where the hose is not subjected to high pressures or harsh conditions. However, it's important to check the specific requirements of the application and the compatibility of the hose with the hydraulic fluid, temperature range, and pressure ratings.
When selecting DIN EN854 1TE or SAE 100R6 hydraulic hoses, consider the following:
- The type of fluid being conveyed (oil, water, or other fluids).
- The temperature range of the hydraulic system.
- The pressure ratings required for the application.
- The environmental conditions the hose will be exposed to.
Always install and maintain the hoses according to the manufacturer's recommendations to ensure safe and efficient operation of the hydraulic system.
