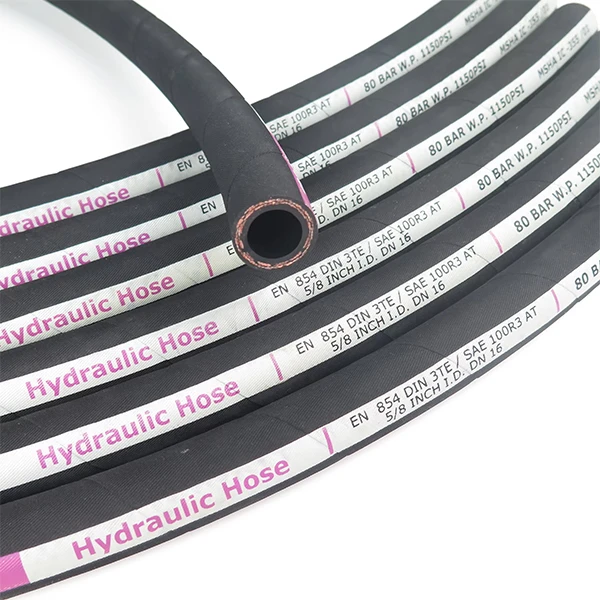

Din En854 3te Or Sae 100 R3
Construction of SAE 100 R3
Tube: oil resistant synthetic rubber.
Reinforcement: two high tensile textile braids.
Cover compound : abrasion, ozone and hydrocarbon resistant synthetic rubber.
Constant operation: -40 °C +100 °C (-40 °F +212 °F)
air max T = +70 °C (+160 °F)
Safety factor: 1:4
Color available: black, grey, blue, yellow, red, etc
Surface: smooth & cloth
Application: medium pressure hydraulic lines, fuel oil, antifreeze solutions, air and water.
Description
Parameters Table:
|
SIZE |
SAE |
I.D |
O.D |
W. P |
P.P |
B.P |
min B.R |
W.T |
|||||||
|
mm |
inch |
Dash |
Min |
Max |
Min |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
inch |
mm |
Kg/m |
|
5 |
3/16 |
-03 |
4.5 |
5.4 |
11.9 |
13.5 |
10.5 |
1520 |
21 |
3050 |
42 |
6090 |
2.95 |
75 |
0.16 |
|
6.3 |
1/4 |
-04 |
6.1 |
7.0 |
13.5 |
15.1 |
8.7 |
1260 |
17.5 |
2540 |
35 |
5075 |
2.95 |
75 |
0.18 |
|
8 |
5/16 |
-05 |
7.6 |
8.5 |
16.7 |
18.3 |
8.4 |
1220 |
16.8 |
2440 |
33.5 |
4860 |
3.94 |
100 |
0.27 |
|
10 |
3/8 |
-06 |
9.2 |
10.1 |
18.3 |
19.8 |
7.8 |
1130 |
15.7 |
2280 |
31.5 |
4570 |
3.94 |
100 |
0.31 |
|
13 |
1/2 |
-08 |
12.4 |
13.5 |
23.0 |
24.6 |
7.0 |
1015 |
14 |
2030 |
28 |
4060 |
4.92 |
125 |
0.45 |
|
16 |
5/8 |
-10 |
15.6 |
16.7 |
26.2 |
27.8 |
6.1 |
885 |
12.2 |
1770 |
24.5 |
3550 |
5.51 |
140 |
0.53 |
|
19 |
3/4 |
-12 |
18.7 |
19.8 |
31.0 |
32.5 |
5.2 |
750 |
10.5 |
1520 |
21 |
3045 |
5.91 |
150 |
0.72 |
|
25 |
1 |
-16 |
25.1 |
26.2 |
36.9 |
39.3 |
3.9 |
570 |
7.8 |
1130 |
15.7 |
2280 |
8.07 |
205 |
0.90 |
|
32 |
1 1/4 |
-20 |
31.4 |
32.9 |
42.9 |
46.0 |
2.6 |
380 |
5.2 |
750 |
10.5 |
1520 |
9.84 |
250 |
1.07 |
APPLICATIONS:
DIN EN854 3TE and SAE 100R3 are standards for low-pressure hydraulic hoses that are designed for light-duty applications. These hoses are not intended for use in high-pressure systems but are suitable for applications where flexibility and ease of installation are important.

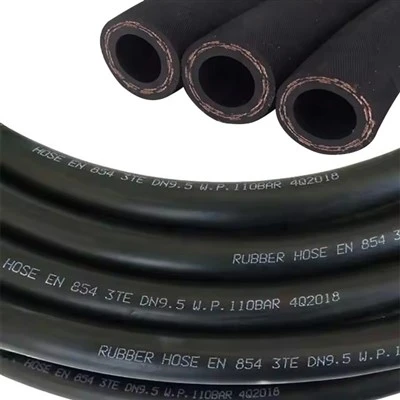

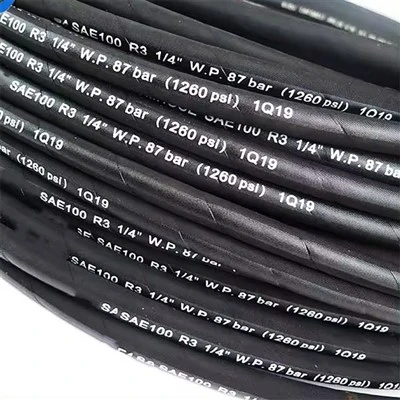

**SAE 100R3/DIN EN854 3TE:**
- This standard specifies a hose with a textile braid reinforcement and a cover that is designed to resist ozone and weathering.
- It is typically used for low-pressure hydraulic applications, such as in industrial equipment, agricultural machinery, and some automotive systems.
- The R3/3TE hose are known for its good flexibility and resistance to abrasion, flexible and easy to install
- It is suitable for use with water-based fluids, as well as oil-based fluids. Generally suitable for low-pressure hydraulic oil, air, and water applications.
- The working pressure of DIN EN854 3TE hoses is typically lower than that of medium or high-pressure hoses.
In many cases, DIN EN854 3TE and SAE 100R3 hoses can be used interchangeably, particularly in applications where the pressure requirements are not stringent. However, it's important to check the specific requirements of the application and the compatibility of the hose with the hydraulic fluid, temperature range, and pressure ratings.
When selecting DIN EN854 3TE or SAE 100R3 hydraulic hoses, consider the following:
- The type of fluid being conveyed (oil, water, or other fluids).
- The temperature range of the hydraulic system.
- The pressure ratings required for the application.
- The environmental conditions the hose will be exposed to.
