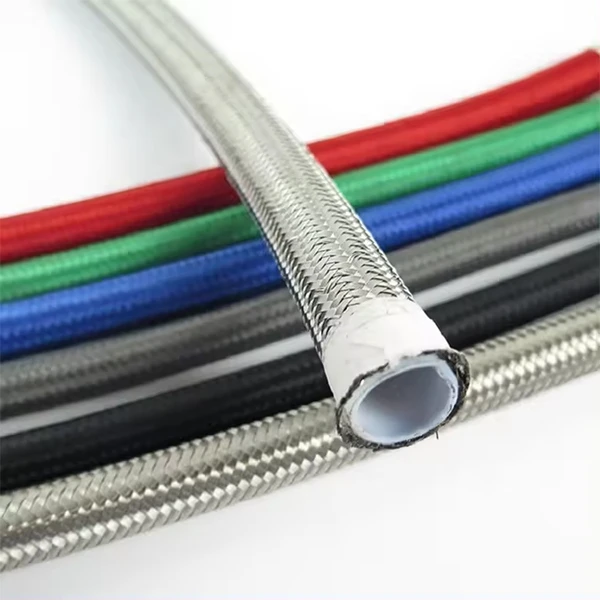

Teflon Hose Sae 100 R14
SAE 100 R14
Tube:PTFE hose,for high and low temperature used,anti-corrosive,non-stick.
Cover:SUS304 stainless steel braided,higher the pressure resistance,all kinds of couplings can be available.
APPLICATIONS:the hydraulic hose,pneumatic hose and steam hose of the industries of rubber,plastic,clothing,auto,engine bed,shipbuilding,electrical machinery,diesel alternate liquid,gas,and high corrosive medium compare to other hose,also have the longer life.
TEMPERATURE RANGE::constant use -50℃~+210℃，instant sue-70℃~+260℃
Description
PARAMETERS：
|

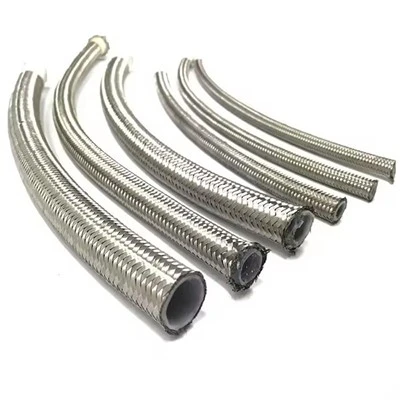

Smooth Bore Hose |
|||||||
|
Size |
I.D |
O.D |
Wall Thickness |
W.P |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
psi |
bar |
|
1/8" |
3.5 |
0.138 |
6.6 |
0.26 |
1 |
4733 |
326 |
|
3/16" |
4.8 |
0.189 |
8 |
0.315 |
0.85 |
3579 |
247 |
|
1/4" |
6.4 |
0.252 |
9.2 |
0.362 |
0.85 |
3106 |
214.2 |
|
5/16" |
8 |
0.315 |
11 |
0.433 |
0.85 |
2781 |
191.76 |
|
3/8" |
9.7 |
0.382 |
12.8 |
0.504 |
0.85 |
2736 |
188.7 |
|
1/2" |
12.7 |
0.5 |
15.9 |
0.626 |
1 |
1568 |
108.12 |
|
5/8" |
16 |
0.63 |
19.2 |
0.756 |
1 |
1878 |
129.54 |
|
3/4" |
19 |
0.748 |
22.7 |
0.894 |
1.2 |
1154 |
79.56 |
|
7/8" |
22.2 |
0.874 |
26 |
1.024 |
1.2 |
887 |
61.2 |
|
1" |
25 |
0.984 |
29.3 |
0.154 |
1.5 |
592 |
40.8 |
|
2" |
50 |
1.969 |
55.6 |
2.189 |
2 |
444 |
30.6 |
|
Convoluted Hose |
|||||||
|
Size |
I.D |
O.D |
Wall Thickness |
W.P |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
psi |
bar |
|
1/4" |
6.5 |
0.256 |
11.5 |
0.453 |
0.8 |
1923 |
133 |
|
5/16" |
8 |
0.315 |
12.3 |
0.484 |
0.65 |
1923 |
132.6 |
|
3/8" |
10 |
0.394 |
14.2 |
0.559 |
0.65 |
1849 |
127.5 |
|
1/2" |
13 |
0.512 |
17.2 |
0.677 |
0.85 |
1627 |
112.2 |
|
5/8" |
16 |
0.63 |
21.6 |
0.85 |
0.9 |
1183 |
81.6 |
|
3/4" |
19 |
0.748 |
25.3 |
0.996 |
1 |
1036 |
71.4 |
|
1" |
25 |
0.984 |
31 |
1.22 |
1 |
740 |
51 |
|
1-1/4" |
32 |
1.26 |
39 |
1.535 |
1.1 |
710 |
48.96 |
|
1-1/2" |
38 |
1.496 |
45 |
1.772 |
1.45 |
636 |
43.86 |
|
2" |
50 |
1.969 |
60 |
2.362 |
1.5 |
503 |
34.68 |

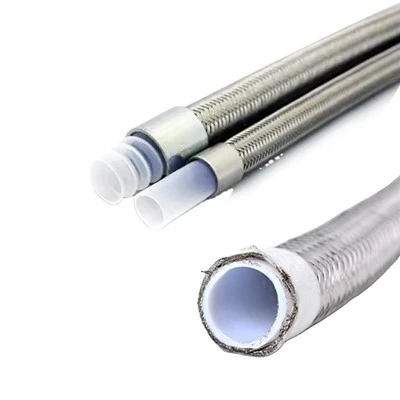

PTFE (polytetrafluoroethylene) hose, often referred to by the brand name Teflon or SAE R14, is a type of hose that offers excellent chemical resistance and can operate at high temperatures. PTFE hose is used in a wide range of applications where the conveyance of chemicals, solvents, and other aggressive fluids is required, and where other types of hoses would not be suitable due to their limited resistance to chemicals or temperature constraints.
Key features and specifications of PTFE hose include:
- Applications: PTFE hose is used in various industries, including chemical processing, pharmaceutical, semiconductor, automotive, and aerospace. It is suitable for fuel lines, lubrication lines, paint spray systems, and any application where high chemical resistance and/or temperature resistance are required.
- Low Friction: PTFE has a low coefficient of friction, which allows for smooth fluid flow and reduces the potential for material build-up inside the hose.
- Electrical Insulation: PTFE is an excellent electrical insulator and can be used in applications where electrical conductivity needs to be minimized.
