Teflon Hose Corrugated

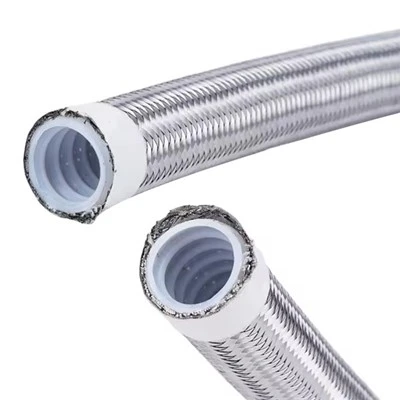

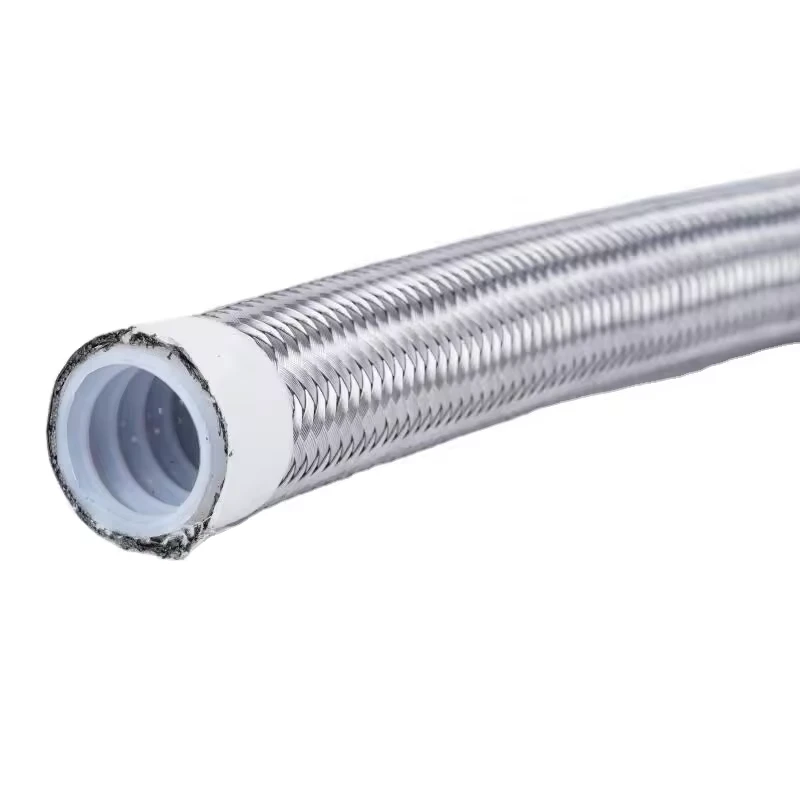

CORRUGEATED PTFE HOSE
Tube: corrugated PTFE
Cover: SS304 / SS316 Braided
Temperature: -65ºC to +260ºC
Coil length: 20m-100m (Random Length).
Standard: SAE100 R14
Connector: JIC,NPT,BSP Fitting, flange etc.
Application: Mainly used for conveying various chemicals, ships, automobiles, Marine industry machinery hydraulic system etc
Description
|
Convoluted Hose |
|||||||
|
Size |
I.D |
O.D |
Wall Thickness |
W.P |
|||
|
inch |
mm |
inch |
mm |
inch |
mm |
psi |
bar |
|
1/4" |
6.5 |
0.256 |
11.5 |
0.453 |
0.8 |
1923 |
133 |
|
5/16" |
8 |
0.315 |
12.3 |
0.484 |
0.65 |
1923 |
132.6 |
|
3/8" |
10 |
0.394 |
14.2 |
0.559 |
0.65 |
1849 |
127.5 |
|
1/2" |
13 |
0.512 |
17.2 |
0.677 |
0.85 |
1627 |
112.2 |
|
5/8" |
16 |
0.63 |
21.6 |
0.85 |
0.9 |
1183 |
81.6 |
|
3/4" |
19 |
0.748 |
25.3 |
0.996 |
1 |
1036 |
71.4 |
|
1" |
25 |
0.984 |
31 |
1.22 |
1 |
740 |
51 |
|
1-1/4" |
32 |
1.26 |
39 |
1.535 |
1.1 |
710 |
48.96 |
|
1-1/2" |
38 |
1.496 |
45 |
1.772 |
1.45 |
636 |
43.86 |
|
2" |
50 |
1.969 |
60 |
2.362 |
1.5 |
503 |
34.68 |

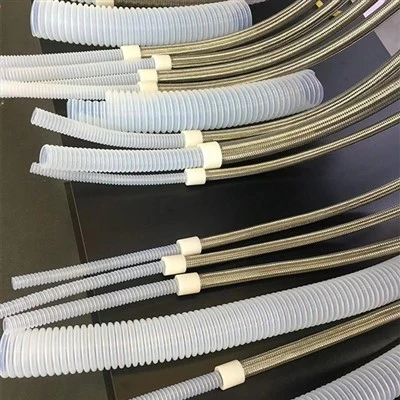

The Model type PTFE Hose is a convoluted PTFE hose with a stainless steel braiding.The convolutions provide a far tighter bend radius than most smooth bore alternatives.It is lightweight, and handles a very broad range of chemicals at relatively high temperatures and pressures, including full vacuum.
