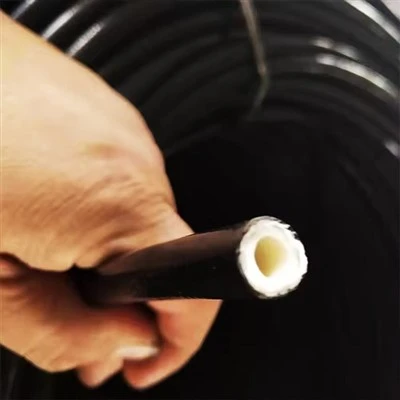

Sae100 R8 Thermoplastic Hose

SAE 100 R8
Tube: Oil resistant thermoplastic elastomer.
Reinforcement: One or two.
Cover:Thermoplastic elastomer with high ozone and abrasion resiste.
Temp. Range: -40°C to+93°C.

Send Inquiry

Description

CONSTRUCTION:

Tube: Oil-resistant synthetic thermoplastic core(Nylon)
Reinforcement: two braids of high tensile synthetic fiber
Cover: Abrasion-resistant polyurethane

This hose shall consists of a thermoplastic inner tube resistant to hydraulic fluids with suitable synthetic fiber reinforcement, and a hydraulic fluid and weather resistant thermoplastic cover.
Temperature:
-40°C to +100°C

PARAMETERS：

SIZE		SAE	I.D		O.D	W. P		P.P		B.P		min B.R		W.T
mm	inch	Dash	Min	Max	Max	Mpa	Psi	Mpa	Psi	Mpa	Psi	inch	mm	Kg/m
5	3/16	-3	4.6	5.4	14.6	35	5075	70	10150	140	20300	3.54	90	0.086
6.3	1/4	-4	6.2	7.0	16.8	35	5075	70	10150	140	20300	3.94	100	0.097
10	3/8	-6	9.3	10.3	20.3	28	4060	56	8120	112	16240	4.92	125	0.178
13	1/2	-8	12.3	13.5	24.6	24.5	3550	49	7105	98	14210	7.09	180	0.216
16	5/8	-10	15.5	16.7	29.8	19.2	2780	38.5	5580	77	11165	8.07	205	0.312
19	3/4	-12	18.6	19.8	33.0	15.7	2275	31.5	4565	63	9135	9.45	240	0.360
25	1	-16	25.0	26.4	38.6	14	2030	28	4060	56	8120	11.81	300	0.505

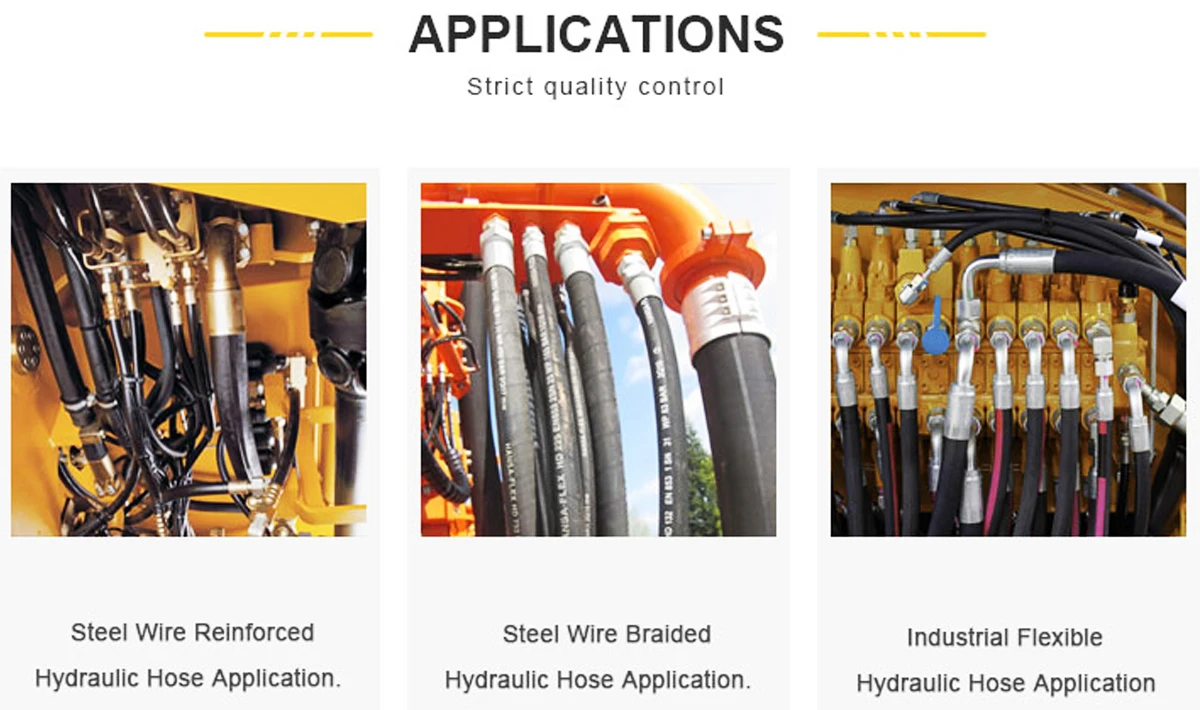

APPLICATIONS:

SAE 100R8 is a standard for high-pressure hydraulic hoses made of thermoplastic materials. These hoses are designed for high-pressure applications and offer excellent flexibility, durability, and resistance to high temperatures and chemicals. The R8 hose is similar to the SAE 100R7, but it is reinforced with additional layers to handle higher pressures. The R8 hose may have additional reinforcement layers to handle higher pressures compared to R7.

SAE 100R8 hoses are suitable for high-pressure applications and provide a good balance of flexibility and strength.

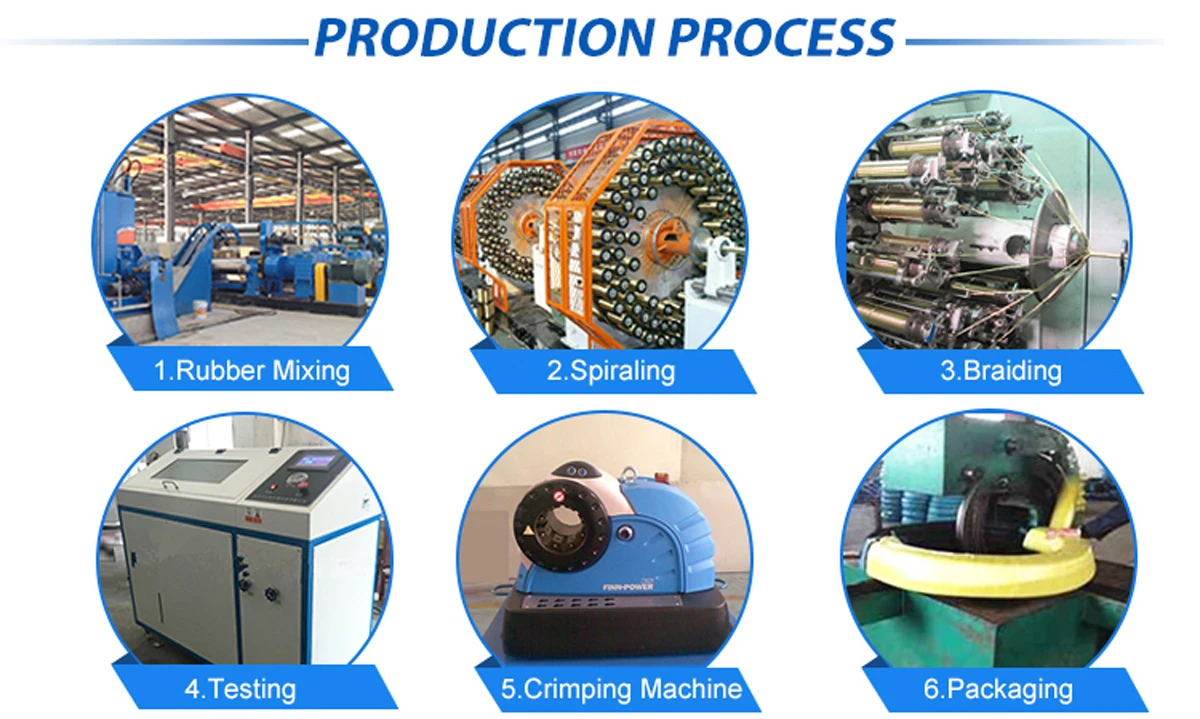

hydraulic hose production 1
