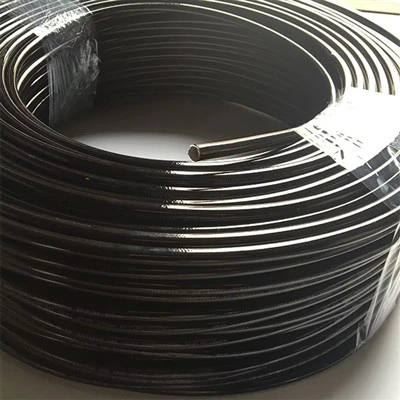

Sae100 R7 Thermoplastic Hose

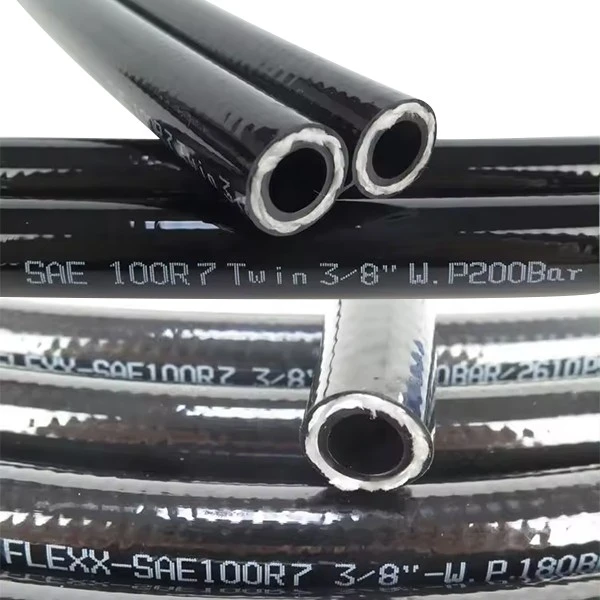

Construction of SAE 100 R7
Tube: Oil resistant synthetic thermoplastic core(Nylon)
Reinforcement: Two braids of high tensile synthetic fiber
Cover: Abrasion resistant polyurethane
Temperature: -40℃ to +100℃
Description
CONSTRUCTION:
SAE 100R7 hoses consist of a thermoplastic inner tube, a reinforcement layer made of one or more layers of high-strength textile yarn, and an outer cover that protects the reinforcement from environmental factors. Typically polyurethane or other synthetic rubbers that can withstand high temperatures and are resistant to chemicals. These hoses are designed for medium-pressure applications and offer excellent flexibility, making them easier to route in tight spaces.
PARAMETERS:
|
SIZE |
SAE |
I.D |
O.D |
W. P |
P.P |
B.P |
min B.R |
W.T |
||||||
|
mm |
inch |
Dash |
Min |
Max |
Max |
Mpa |
Psi |
Mpa |
Psi |
Mpa |
Psi |
inch |
mm |
Kg/m |
|
5 |
3/16 |
-03 |
4.6 |
5.4 |
11.4 |
21 |
3045 |
42 |
6090 |
84 |
12180 |
3.54 |
90 |
0.073 |
|
6.3 |
1/4 |
-04 |
6.2 |
7.0 |
13.7 |
19.2 |
2780 |
38.5 |
5580 |
77 |
11165 |
3.94 |
100 |
0.090 |
|
8 |
5/16 |
-05 |
7.7 |
8.5 |
15.6 |
17.5 |
2535 |
35 |
5075 |
70 |
10150 |
4.53 |
115 |
0.128 |
|
10 |
3/8 |
-06 |
9.3 |
10.3 |
18.4 |
15.7 |
2275 |
31.5 |
4565 |
63 |
9135 |
4.92 |
125 |
0.155 |
|
13 |
1/2 |
-08 |
12.3 |
13.5 |
22.5 |
14 |
2030 |
28 |
4060 |
56 |
8120 |
7.09 |
180 |
0.224 |
|
16 |
5/8 |
-10 |
15.5 |
16.7 |
25.8 |
10.5 |
1520 |
21 |
3045 |
42 |
6090 |
8.07 |
205 |
0.277 |
|
19 |
3/4 |
-12 |
18.6 |
19.8 |
28.6 |
8.7 |
1260 |
17.5 |
2535 |
35 |
5075 |
9.45 |
240 |
0.330 |
|
25 |
1 |
-16 |
25.0 |
26.4 |
36.7 |
7 |
1015 |
14 |
2030 |
28 |
4060 |
11.81 |
300 |
0.403 |
Applications for SAE 100R7 thermoplastic hoses:
**Characteristics:**
- They are lightweight and have good resistance to abrasion, chemicals, and temperature extremes.
- SAE 100R7 hoses can handle higher temperatures than some traditional rubber hoses, making them suitable for applications where temperature fluctuations are common.
- They are non-elastic and can maintain their shape after being bent, which is beneficial for installations with tight bends.
**Applications:**
1. Automotive: SAE 100R7 hoses are used in some automotive applications, such as power steering systems, clutch systems, and brake lines, especially in sports cars and other vehicles where weight reduction is desired.
2. Industrial machinery: These hoses are used in various industrial applications, including machine tools, robotics, and material handling equipment, where flexibility and chemical resistance are important.
3. Marine: In marine applications, SAE 100R7 hoses can be used for less critical systems that do not require high pressure, such as certain deck equipment or control systems.
4. Oil and gas: In the oil and gas industry, SAE 100R7 hoses may be used for hydraulic control systems on drilling rigs or for conveying fluids at medium pressures.
SAE 100R7 hoses are not suitable for high-pressure applications and should not be used in place of hoses designed for higher pressure service.
