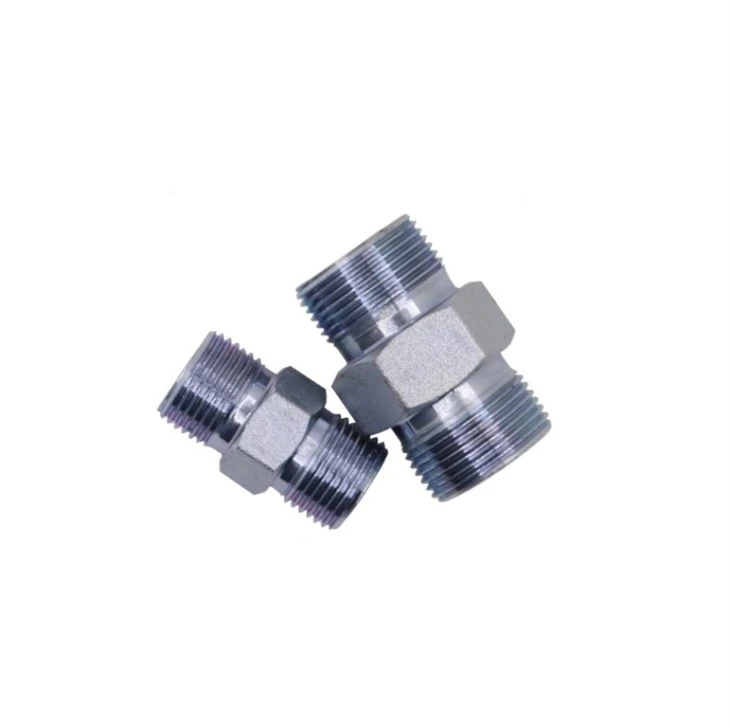

1C / 1D Metric Male 24° Union

Description:



METRIC MALE 24°L.T. REDUCERS; METRIC MALE 24°L.T.; METRIC MALE 24°H.T.; METRIC MALE 24°H.T. REDUCERS



Part No.: 1C / 1D



Features:



* Material: Carbon Steel ; Stainless Steel

* Surface Treatment: Trivalent Chromate

* Salt Spray Test: 96h Corrosion Resistant



METRIC MALE 24°L.T. REDUCERS 1C

METRIC MALE 24°L.T. REDUCERS
	THREADE		TUBE O.D.			DIMENSIONS
PART NO.	E		D1	D2		A	B	S1		L
1C-12-14	M12x1.5	M14x1.5	6	8		10	10	14		26
1C-12-16	M12x1.5	M16x1.5	6	10		10	11	17		27
1C-12-18	M12x1.5	M18x1.5	6	12		10	11	19		27
1C-14-16	M14x1.5	M16x1.5	8	10		11	11	17		28
1C-14-18	M14x1.5	M18x1.5	8	12		11	11	19		28
1C-16-18	M16x1.5	M18x1.5	10	12		11	11	19		28
1C-16-22	M16x1.5	M22x1.5	10	15		11	12	24		30
1C-16-26	M16x1.5	M26x1.5	10	18		11	12	27		33
1C-18-22	M18x1.5	M22x1.5	12	15		11.5	12	24		31
1C-18-26	M18x1.5	M26x1.5	12	18		11.5	12	27		32
1C-18-30	M18x1.5	M30x2	12	22		11.5	14	32		35.5
1C-22-26	M22x1.5	M26x1.5	15	18		12.5	12	27		33
1C-22-30	M22x1.5	M30x2	15	22		12.5	14	32		36.5
1C-26-30	M26x1.5	M30x2	18	22		12	14	32		37
1C-26-36	M26x1.5	M36x2	18	28		12	14	36		37
1C-30-36	M30x2	M36x2	22	28		14	14	36		39
1C-30-45	M30x2	M45x2	22	35		14	16	46		43
1C-33-45	M33x2	M45x2	25	35		16	16	46		45
Remark:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN" arter our part NO.,for example 1C-22-26RN.



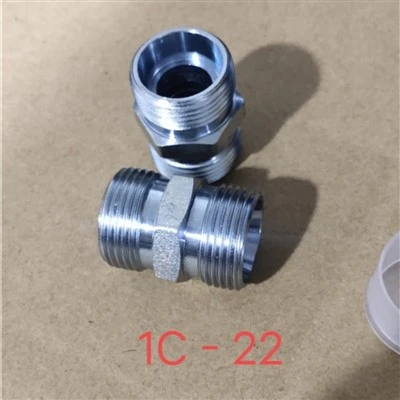

METRIC MALE 24°L.T.

代号	螺纹 THREADE	管子外径 TUBE O.D.	尺 寸 DIMENSIONS
PART NO.	E	D1	A	S1	L
1C-12	M12x1.5	6	10	12	26
1C-14	M14x1.5	8	11	14	28
1C-16	M16x1.5	10	11	17	28
1C-18	M18x1.5	12	11.5	19	29
1C-22	M22x1.5	15	12.5	24	33
1C-26	M26x1.5	18	12	27	34
1C-30	M30x2	22	14	32	39
1C-36	M36x2	28	16	36	43
1C-45	M45x2	35	16	46	45
1C-52	M52x2	42	16	55	49



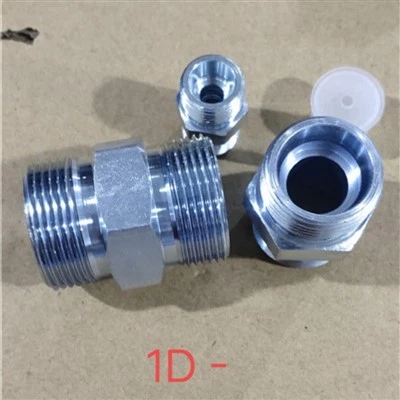

METRIC MALE 24°H.T.   1D

代号	螺纹 THREADE	管子外径 TUBE O.D.	尺 寸 DIMENSIONS
PART NO.	E	D1	A	S1	L
1D-14	M14x1.5	6	12	14	30
1D-16	M16x1.5	8	12	17	30
1D-18	M18x1.5	10	12	19	30
1D-20	M20x1.5	12	12	22	31
1D-22	M22x1.5	14	14	24	36
1D-24	M24x1.5	16	14	27	38
1D-30	M30x2	20	16	32	43
1D-36	M36x2	25	18	36	47
1D-42	M42x2	30	20	46	52
1D-52	M52x2	38	22	55	61
Remark:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN" arter our part NO.,for example 1D-22RN. (the same with above)



METRIC MALE 24°H.T. REDUCERS
	THREADE		管子外径 TUBE O.D.		尺 寸 DIMENSIONS
PART NO.	E		D1	D2	A	B	S1	L
1D-14-16	M14x1.5	M16x1.5	6	8	12	12	17	30
1D-14-18	M14x1.5	M18x1.5	6	10	12	12	19	30
1D-14-20	M14x1.5	M20x1.5	6	12	12	12	22	32
1D-16-18	M16x1.5	M18x1.5	8	10	12	12	19	30
1D-16-20	M16x1.5	M20x1.5	8	12	12	12	22	32
1D-18-20	M18x1.5	M20x1.5	10	12	12	12	22	32
1D-18-22	M18x1.5	M22x1.5	10	14	12	14	24	34
1D-18-30	M18x1.5	M30x2	10	20	12	16	32	39
1D-20-22	M20x1.5	M22x1.5	12	14	12	14	24	34
1D-20-24	M20x1.5	M24x1.5	12	16	12	14	27	36
1D-20-30	M20x1.5	M30x2	12	20	12	16	32	39
1D-22-24	M22x1.5	M24x1.5	14	16	14	14	27	38
1D-24-30	M24x1.5	M30x2	16	20	14	16	32	41
1D-24-36	M24x1.5	M36x2	16	25	14	18	36	43
1D-30-36	M30x2	M36x2	20	25	16	18	36	45
1D-30-42	M30x2	M42x2	20	30	16	20	46	48
1D-36-42	M36x2	M42x2	25	30	18	20	46	50
1D-42-52	M42x2	M52x2	30	38	20	22	55	59
Remark:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN" arter our part NO.,for example 1D-22-24RN.

Package:

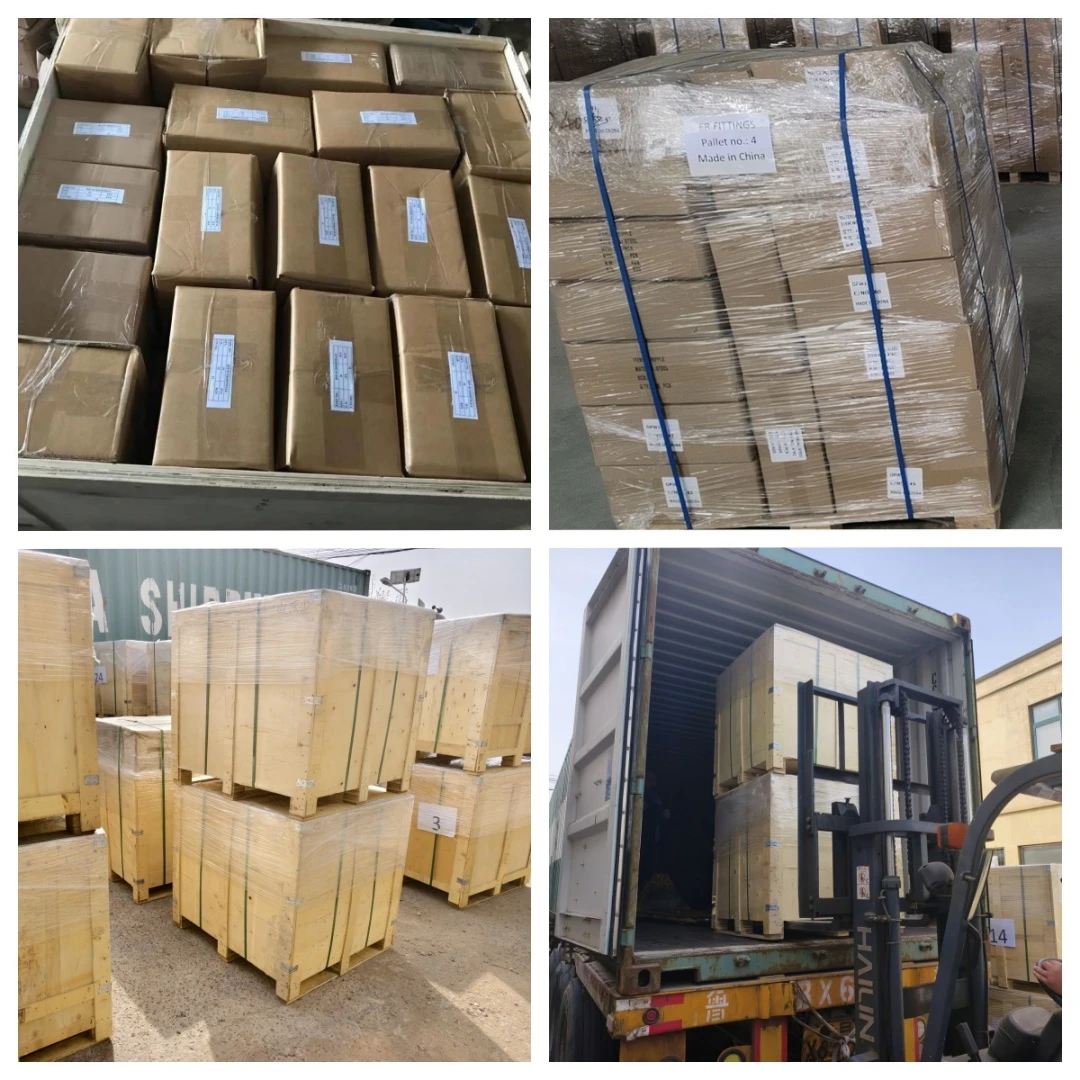

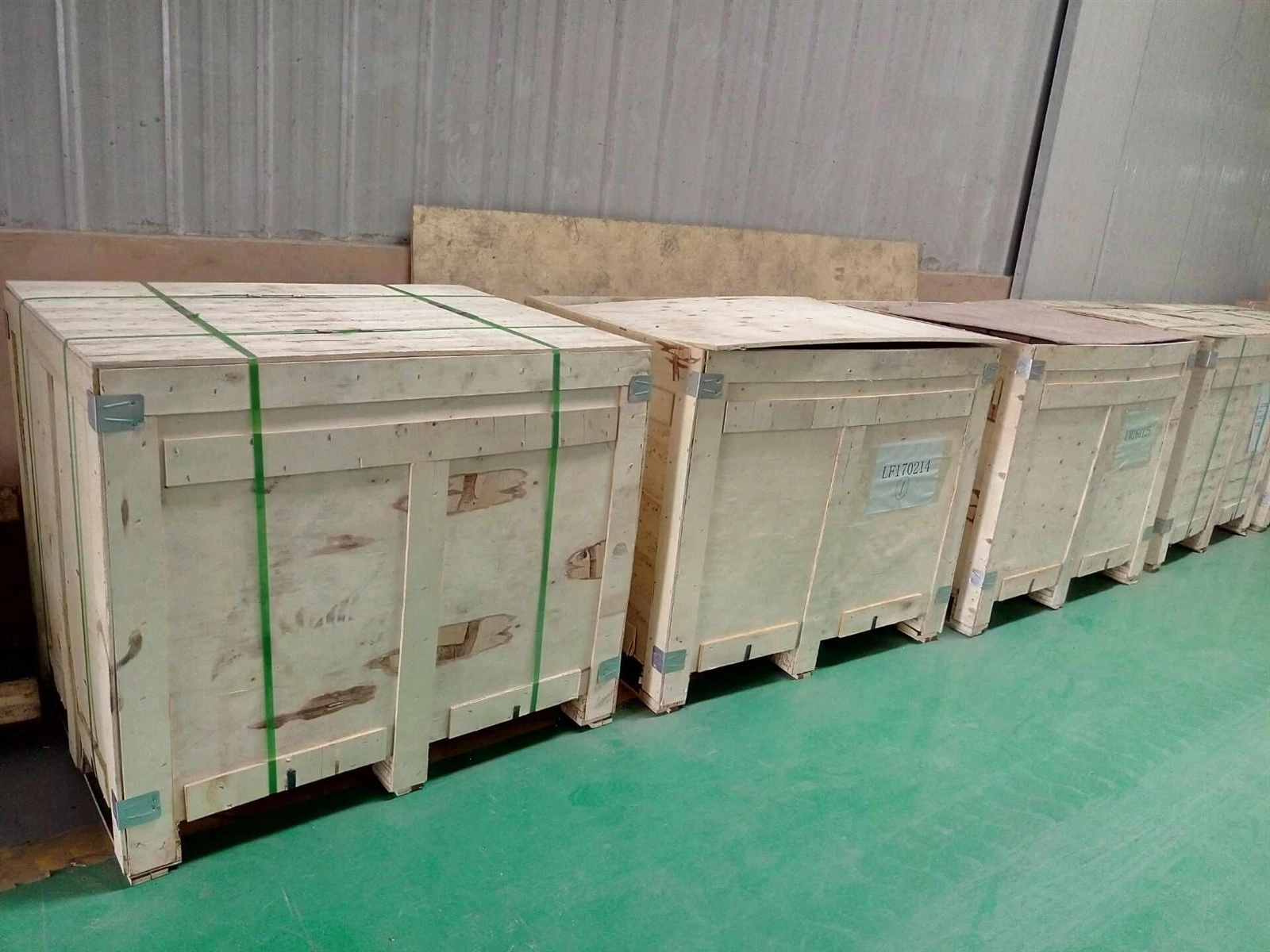

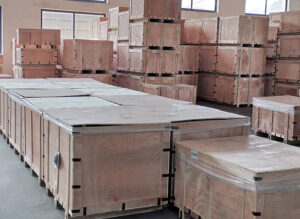

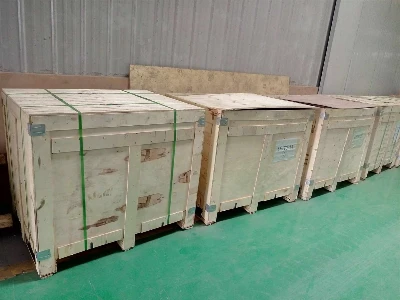

We usually use pallets or wooden crates for packaging. Each wooden crate and wooden pallet meets export fumigation requirements. Packaging can also be customised according to customer requirements.
