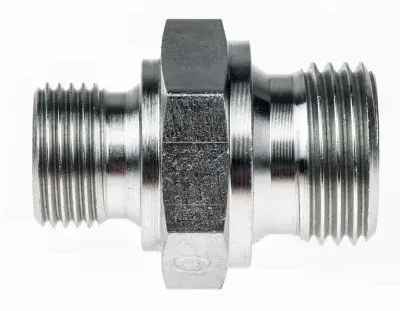

ICJ / 1DJ DIN2353 X Male JIC Adapter
Description: Hydraulic Adapter 1CJ / 1DJ DIN to Male JIC
Part No.: 1CJ / 1DJ
Features:
Material: Carbon steel
Surface Treatment: Cr3+, clear zinc plating
Corrossion Hour: 96h and longer
1CJ is for light (L) and 1DJ is for heavy (S)
Description
Specifications:
1CJ METRIC MALE 24°L.T./ JIC 74°CONE SEAL
|
PART NO. |
THREADE |
TUBE O.D. |
DIMENSIONS |
||||
|
E |
F |
D1 |
A |
B |
S1 |
L |
|
|
1CJ-12-04 |
M12x1.5 |
U7/16"X20 |
6 |
10 |
14 |
14 |
30 |
|
1CJ-14-04 |
M14x1.5 |
U7/16"X20 |
8 |
11 |
14 |
14 |
31 |
|
1CJ-14-06 |
M14x1.5 |
U9/16"X18 |
8 |
11 |
14 |
17 |
31 |
|
1CJ-16-06 |
M16x1.5 |
U9/16"X18 |
10 |
11 |
14 |
17 |
31 |
|
1CJ-18-06 |
M18x1.5 |
U9/16"X18 |
12 |
11.5 |
14 |
19 |
31.5 |
|
1CJ-18-08 |
M18x1.5 |
U3/4"X16 |
12 |
11.5 |
16.7 |
22 |
35 |
|
1CJ-22-08 |
M22x1.5 |
U3/4"X16 |
15 |
12.5 |
16.7 |
24 |
37 |
|
1CJ-22-10 |
M22x1.5 |
U7/8"X14 |
15 |
12.5 |
19.5 |
24 |
40 |
|
1CJ-26-10 |
M26x1.5 |
U7/8"X14 |
18 |
12 |
19.5 |
27 |
40 |
|
1CJ-26-12 |
M26x1.5 |
U1.1/16"X12 |
18 |
12 |
19.5 |
30 |
41.5 |
|
1CJ-30-12 |
M30x2 |
U1.1/16"X12 |
22 |
14 |
22 |
32 |
46 |
|
1CJ-36-16 |
M36x2 |
U1.5/16"X12 |
28 |
16 |
23 |
36 |
50 |
|
1CJ-45-20 |
M45x2 |
U1.5/8"X12 |
35 |
18 |
24.5 |
46 |
55.5 |
|
1CJ-52-20 |
M52x2 |
U1.5/8"X12 |
42 |
19 |
24.5 |
55 |
60.5 |
|
1CJ-52-24 |
M52x2 |
U1.7/8"X12 |
42 |
19 |
27.5 |
55 |
63.5 |
|
Note: If you require a complete set including the ferrule and ferrule nut, please add "RN" after the code, such as "1CJ-22-08RN". Remark:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN" arter our part NO.,for example 1CJ-22-08RN. |
|||||||
1DJ METRIC MALE 24°H.T./ JIC 74°CONE SEAL
|
PART NO. |
THREADE |
TUBE O.D. |
DIMENSIONS |
|||||
|
E |
F |
D1 |
A |
B |
S1 |
L |
||
|
1DJ-14-04 |
M14x1.5 |
U7/16"X20 |
6 |
12 |
14 |
14 |
32 |
|
|
1DJ-16-04 |
M16x1.5 |
U7/16"X20 |
8 |
12 |
14 |
17 |
32 |
|
|
1DJ-16-06 |
M16x1.5 |
U9/16"X18 |
8 |
12 |
14 |
17 |
32 |
|
|
1DJ-18-04 |
M18x1.5 |
U7/16"X20 |
10 |
12 |
14 |
19 |
32 |
|
|
1DJ-18-06 |
M18x1.5 |
U9/16"X18 |
10 |
12 |
14 |
19 |
32 |
|
|
1DJ-20-06 |
M20x1.5 |
U9/16"X18 |
12 |
12 |
14 |
22 |
33 |
|
|
1DJ-20-08 |
M20x1.5 |
U3/4"X16 |
12 |
12 |
16.7 |
22 |
36 |
|
|
1DJ-22-08 |
M22x1.5 |
U3/4"X16 |
14 |
14 |
16.7 |
24 |
38 |
|
|
1DJ-24-08 |
M24x1.5 |
U3/4"X16 |
16 |
14 |
16.7 |
27 |
39 |
|
|
1DJ-24-10 |
M24x1.5 |
U7/8"X14 |
16 |
14 |
19.5 |
30 |
42.5 |
|
|
1DJ-30-12 |
M30x2 |
U1.1/16"X12 |
20 |
16 |
22 |
32 |
48 |
|
|
1DJ-36-16 |
M36x2 |
U1.5/16"X12 |
25 |
18 |
23 |
32 |
52 |
|
|
1DJ-42-20 |
M42x2 |
U1.5/8"X12 |
30 |
20 |
24.5 |
46 |
57.5 |
|
|
1DJ-52-24 |
M52x2 |
U1.7/8"X12 |
38 |
22 |
27.5 |
55 |
66.5 |
|
|
Note: If you require a complete set including the ferrule and ferrule nut, please add "RN" after the code, such as "1DJ-22-08RN". Remark:In case if you are interested to order the adapter in complete set with cutting ring and nut,it is necessary to insert suffix"RN" arter our part NO.,for example 1DJ-22-08RN. |
||||||||
