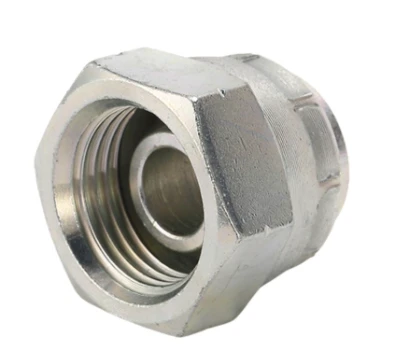

7B BSP Female

Description:  Female BSPP x Female BSPP



Part No.: 7B



7B BSP Female

代号 PART NO.	螺纹 THREADE		尺寸DIMENSIONS
	E	F	L	S1
7B-02	G1/8"X28	G1/8"X28	22	14
7B-04	G1/4"X19	G1/4"X19	24	19
7B-06	G3/8"X19	G3/8"X19	26	22
7B-08	G1/2"X14	G1/2"X14	32	27
7B-10	G5/8"X14	G5/8"X14	36	30
7B-12	G3/4"X14	G3/4"X14	36	32
7B-16	G1"X11	G1"X11	40	41
7B-20	G1.1/4"X11	G1.1/4"X11	44	50
7B-24	G1.1/2"X11	G1.1/2"X11	45	55
7B-32	G2"X11	G2"X11	54	70





Our Products:

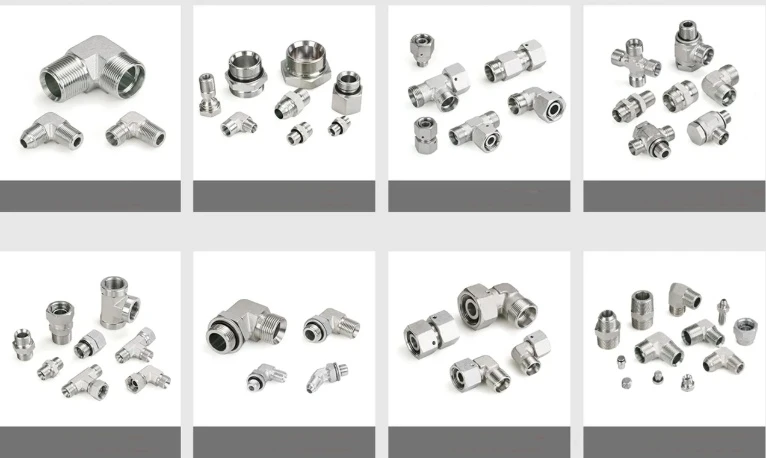

Adapters
