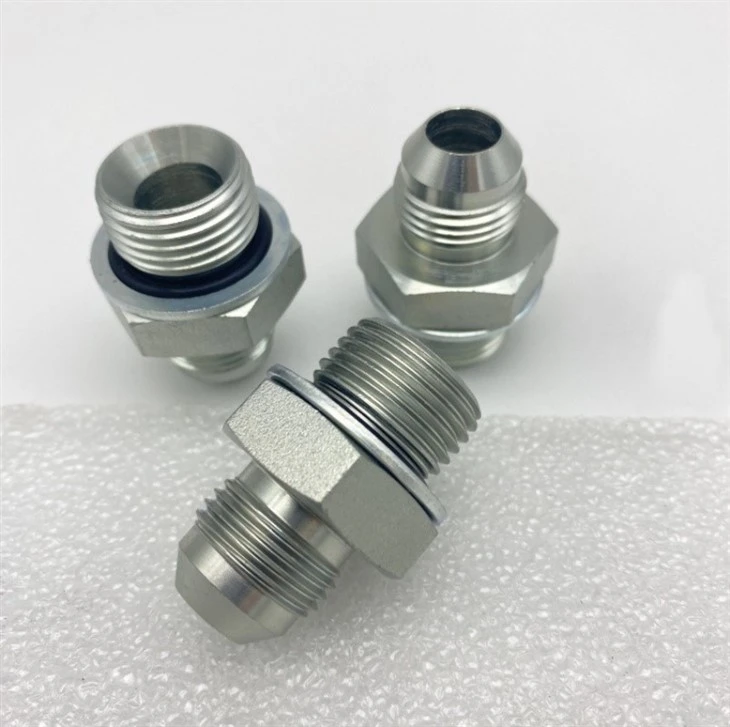

Description: Hydraulic Adapter JIC Male 74° Cone / BSP Male With Washer
Part No.: 1JG
|
Product Name |
JIC MALE 74 DEGREE CONE/BSP MALE O-RING |
||
|
Model Number |
1JG |
||
|
Material |
Carboon Steel |
||
|
Sample Fee |
Free samples are available for evalutaion. |
||
|
ODM/OEM |
Accept |
||
|
代号 PART NO. |
螺纹 THREADE |
尺 寸 DIMENSIONS |
||||
|
E |
F |
A |
B |
S1 |
L |
|
|
1JG-04-02 |
U7/16"X20 |
G1/8"X28 |
14 |
9 |
14 |
29 |
|
1JG-04 |
U7/16"X20 |
G1/4"X19 |
14 |
12 |
19 |
33 |
|
1JG-04-06 |
U7/16"X20 |
G3/8"X19 |
14 |
13.5 |
22 |
35 |
|
1JG-04-08 |
U7/16"X20 |
G1/2"X14 |
14 |
16 |
27 |
39 |
|
1JG-05-04 |
U1/2"X20 |
G1/4"X19 |
14 |
12 |
19 |
33 |
|
1JG-05-06 |
U1/2"X20 |
G3/8"X19 |
14 |
13.5 |
22 |
35 |
|
1JG-05-08 |
U1/2"X20 |
G1/2"X14 |
14 |
16 |
27 |
39 |
|
1JG-06-04 |
U9/16"X18 |
G1/4"X19 |
14 |
12 |
19 |
32 |
|
1JG-06 |
U9/16"X18 |
G3/8"X19 |
14 |
13.5 |
22 |
35 |
|
1JG-06-08 |
U9/16"X18 |
G1/2"X14 |
14 |
16 |
27 |
39 |
|
1JG-08-04 |
U3/4"X16 |
G1/4"X19 |
16.7 |
12 |
22 |
37 |
|
1JG-08-06 |
U3/4"X16 |
G3/8"X19 |
16.7 |
13.5 |
22 |
38.5 |
|
1JG-08 |
U3/4"X16 |
G1/2"X14 |
16.7 |
16 |
27 |
41 |
|
1JG-08-12 |
U3/4"X16 |
G3/4"X14 |
16.7 |
18.5 |
32 |
46 |
|
1JG-10-06 |
U7/8"X14 |
G3/8"X19 |
19.5 |
13.5 |
24 |
42 |
|
1JG-10-08 |
U7/8"X14 |
G1/2"X14 |
19.5 |
16 |
27 |
45 |
|
1JG-10-12 |
U7/8"X14 |
G3/4"X14 |
19.5 |
18.5 |
32 |
49 |
|
1JG-12-08 |
U1.1/16"X12 |
G1/2"X14 |
22 |
16 |
30 |
47 |
|
1JG-12 |
U1.1/16"X12 |
G3/4"X14 |
22 |
18.5 |
32 |
51 |
|
1JG-12-16 |
U1.1/16"X12 |
G1"X11 |
22 |
20.5 |
19 |
54 |
|
1JG-12-20 |
U1.1/16"X12 |
G1.1/4"X11 |
22 |
20.5 |
50 |
56 |
|
1JG-16-12 |
U1.5/16"X12 |
G3/4"X14 |
23 |
18.5 |
36 |
52 |
|
1JG-16 |
U1.5/16"X12 |
G1"X11 |
23 |
20.5 |
41 |
55 |
|
1JG-16-20 |
U1.5/16"X12 |
G1.1/4"X11 |
23 |
20.5 |
50 |
57 |
|
1JG-20-16 |
U1.5/8"X12 |
G1"X11 |
24.5 |
20.5 |
46 |
58 |
|
1JG-20 |
U1.5/8"X12 |
G1.1/4"X11 |
24.5 |
20.5 |
50 |
58 |
|
1JG-24-16 |
U1.7/8"X12 |
G1"X11 |
27.5 |
20.5 |
50 |
61 |
|
1JG-24-20 |
U1.7/8"X12 |
G1.1/4"X11 |
27.5 |
20.5 |
50 |
61 |
|
1JG-24 |
U1.7/8"X12 |
G1.1/2"X11 |
27.5 |
23 |
55 |
67 |
| PART NO. | THREAD | O-RING | DIMENSIONS | ||||||
| E | F | F | A | B | S1 | S2 | |||
| 1JG9-04OG | 7/16"X20 | G1/4"X19 | 10.77X2.62 | 26.6 | 31.5 | 14 | 19 | ||
| 1JG9-04-02OG | 7/16"X20 | G1/8"X28 | 7.65X1.78 | 24.5 | 26.2 | 11 | 14 | ||
| 1JG9-04-06OG | 7/16"X20 | G3/8"X19 | 13.94X2.62 | 27.5 | 36.8 | 16 | 22 | ||
| 1JG9-05-04OG | 1/2"X20 | G1/4"X19 | 10.77X2.62 | 26.5 | 31.8 | 14 | 19 | ||
| 1JG9-05-06OG | 1/2"X20 | G3/8"X19 | 13.94X2.62 | 27.5 | 35.8 | 16 | 22 | ||
| 1JG9-05-08OG | 1/2"X20 | G1/2"X14 | 17.12X2.62 | 31.5 | 43.2 | 22 | 27 | ||
| 1JG9-06OG | 9/16"X18 | G3/8"X19 | 13.94X2.62 | 28.5 | 35.8 | 16 | 22 | ||
| 1JG9-06-04OG | 9/16"X18 | G1/4"X19 | 10.77X2.62 | 26.9 | 31.3 | 14 | 19 | ||
| 1JG9-06-08OG | 9/16"X18 | G1/2"X14 | 17.12X2.62 | 32.5 | 43.2 | 22 | 27 | ||
| 1JG9-08OG | 3/4"X16 | G1/2"X14 | 17.12X2.62 | 34.8 | 43.2 | 22 | 27 | ||
| 1JG9-08-04OG | 3/4"X16 | G1/4"X19 | 10.77X2.62 | 32 | 33.5 | 19 | 19 | ||
| 1JG9-08-06OG | 3/4"X16 | G3/8"X19 | 13.94X2.62 | 32 | 36.8 | 19 | 22 | ||
| 1JG9-08-12OG | 3/4"X16 | G3/4"X14 | 23.47X2.62 | 37.9 | 49.3 | 27 | 32 | ||
| 1JG9-10OG | 7/8"X14 | G5/8"X14 | 19.18X2.62 | 36.8 | 44.5 | 22 | 30 | ||
| 1JG9-10-04OG | 7/8"X14 | G1/4"X19 | 10.77X2.62 | 36.8 | 36 | 22 | 19 | ||
| 1JG9-10-06OG | 7/8"X14 | G3/8"X19 | 13.94X2.62 | 37.8 | 39.2 | 22 | 22 | ||
| 1JG9-10-08OG | 7/8"X14 | G1/2"X14 | 17.12X2.62 | 37.8 | 43.2 | 22 | 27 | ||
| 1JG9-10-12OG | 7/8"X14 | G3/4"X14 | 23.47X2.62 | 41 | 49.3 | 27 | 32 | ||
| 1JG9-12OG | 1.1/16"X12 | G3/4"X14 | 23.47X2.62 | 44.2 | 49.3 | 27 | 32 | ||
| 1JG9-12-08OG | 1.1/16"X12 | G1/2"X14 | 17.12X2.62 | 44.2 | 46.5 | 27 | 27 | ||
| 1JG9-12-16OG | 1.1/16"X12 | G1"X11 | 29.74X3.53 | 48 | 53 | 33 | 41 | ||
| 1JG9-16OG | 1.5/16"X12 | G1"X11 | 29.74X3.53 | 49 | 53 | 33 | 41 | ||
| 1JG9-16-12OG | 1.5/16"X12 | G3/4"X14 | 23.47X2.62 | 49 | 53 | 33 | 32 | ||
| 1JG9-16-20OG | 1.5/16"X12 | G1.1/4"X11 | 37.69X3.53 | 53.8 | 58 | 41 | 50 | ||
| 1JG9-20OG | 1.5/8"X12 | G1.1/4"X11 | 37.69X3.53 | 55.5 | 58 | 41 | 50 | ||
| 1JG9-20-16OG | 1.5/8"X12 | G1"X11 | 29.74X3.53 | 55.5 | 58 | 41 | 41 | ||
| 1JG9-24-16OG | 1.7/8"X12 | G1"X11 | 29.74X3.53 | 62.5 | 63 | 48 | 41 | ||
| 1JG9-24-20OG | 1.7/8"X12 | G1.1/4"X11 | 37.69X3.53 | 62.5 | 63 | 48 | 50 | ||
| 1JG9-24OG | 1.7/8"X12 | G1.1/2"X11 | 44.04X3.53 | 62.5 | 63 | 48 | 55 | ||
