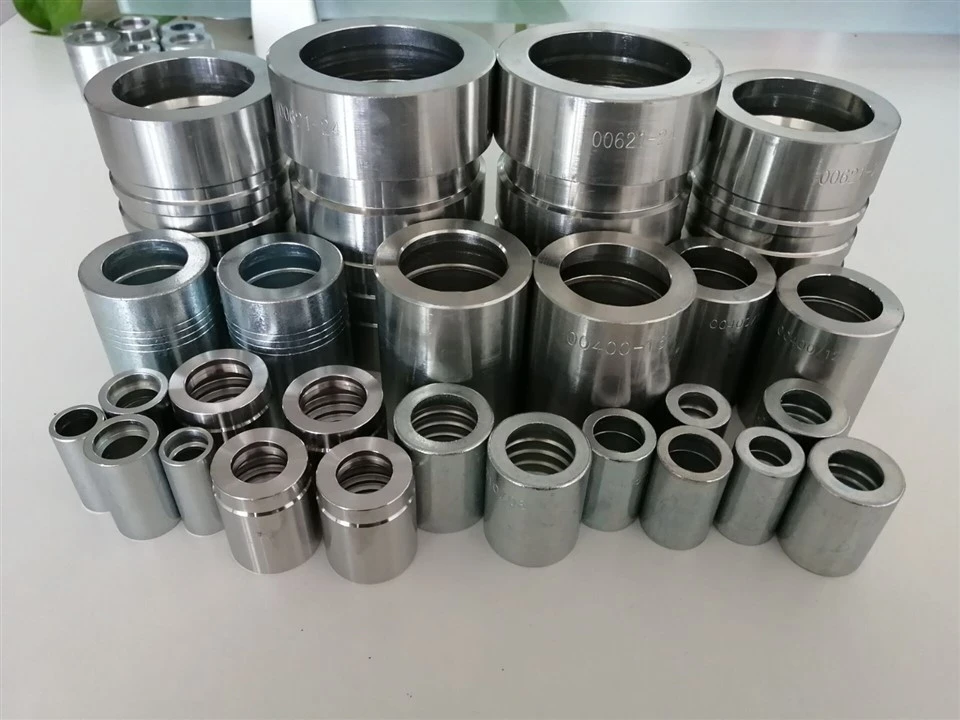

Hose Ferrule



Part No.	DESCRIPTION
00100	SKIVE FERRULE FOR SAE 100R1A/EN 853 1ST HOSE
00110-A	NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
00110	NO-SKIVE FERRULE FOR SAE 100R1AT/EN 853 1SN HOSE
00200	SKIVE FERRULE FOR SAE 100R2A/EN 853 2ST HOSE
00210	NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
03310	NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
00110	SKIVE FERRULE FOR CHINA 1-WIRE HOSE
01200	SKIVE FERRULE FOR CHINA 2-WIRE HOSE
01300	SKIVE FERRULE FOR CHINA 3-WIRE HOSE
01400	SKIVE FERRULE FOR R12/20-24 HOSE
00400	SKIVE FERRULE FOR 4SP,4SH/10-16,R12/06-16 HOSE
00401	SKIVE FERRULE FOR 4SH,R12/32 HOSE
00402	FERRULE FOR SAE 100 R9AT-R12,EN 856 4SP/04-16 HOSE
00403	FERRULE FOR EN 856 4SP/21-16-32 HOSE
00018	NO-SKIVE FERRULE FOR SAE 100R7 HOSE
00TF0	NO-SKIVE FERRULE FOR TEFLON HOSE
00500	FERRULE FOR SAE 100 R5
00621	INTERLOCK FERRULE FOR SAE 100 R13/R15 HOSE



Our sleeves offer exceptional performance, longevity, and compatibility with a wide range of hydraulic systems. Whether for industrial machinery, automotive applications, or heavy equipment, our sleeves deliver the strength and reliability needed for optimal hydraulic system operation.



Basic Info
Material: Carbon Steel, Stainless Steel
Surface Treatment: Zinc-Plated
Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
Export Markets: Global
Additional Info.
Packing:Box Inside & Wooden pallets
Origin: Qingdao, China
Production Capacity: 1000000







Hot Tags: hose ferrule, China hose ferrule manufacturers, suppliers, factory

Specifications:



PART NO. : 00110



FERRULE FOR SAE 100R1A/EN 853 1ST



PART NO.	HOSE BORE		DIMENSIONS
	DN	DASH	D	L
00110-03	5	3	17.5	27
00110-04	6	4	20.6	30
00110-05	8	5	20.8	31
00110-06	10	6	23.3	32
00110-08	12	8	27	34
00110-10	16	10	30	37
00110-12	20	12	34	43
00110-16	25	16	42.6	50
00110-20	32	20	52	59
00110-24	38	24	58	74
00110-32	51	32	72	78



PART NO. : 00210



FERRULE FOR SAE 100R2AT/EN 853 2SN

PART NO.	HOSE BORE		DIMENSIONS
	DN	DASH	D	L
00210-03	5	3	20.6	27
00210-04	6	4	22.2	30
00210-05	8	5	23	31
00210-06	10	6	25	32
00210-08	12	8	28.3	34
00210-10	16	10	31.5	37
00210-12	20	12	35.5	43
00210-16	25	16	45	50
00210-20	32	20	55	59
00210-24	38	24	62.5	74
00210-32	51	32	75.5	78

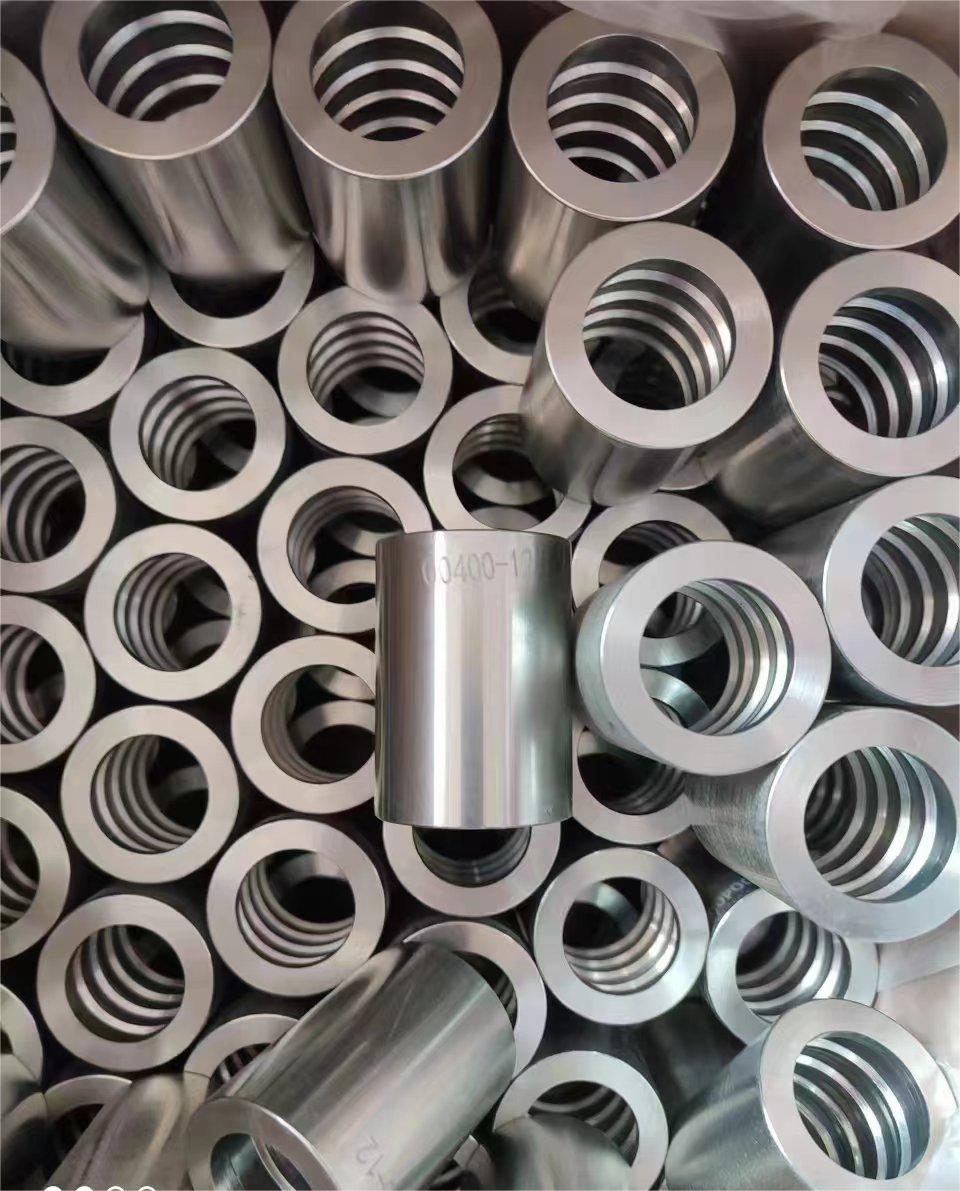

PART NO. : 00400



SKIVE FERRULE FOR 4SP,4SH/10-16,R12/06-16 HOSE



PART NO.	HOSE BORE		DIMENSIONS
	DN	DASH	D	L
00400-04	6	4	22	37.5
00400-06	10	6	25.5	39
00400-08	12	8	29	41
00400-10	16	10	32.5	43
00400-12	20	12	37	51
00400-16	25	16	46.5	64.5

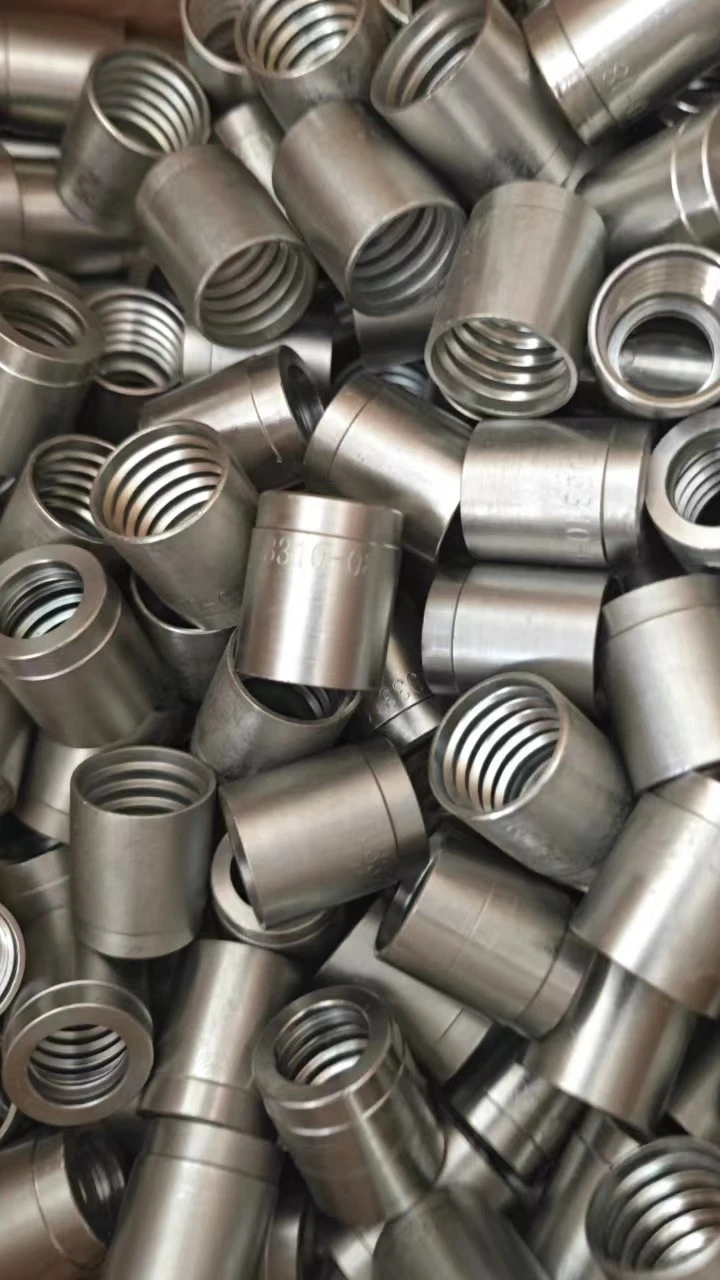

PART NO. : 00310



NO-SKIVE FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE



PART NO.	HOSE BORE		DIMENSIONS
	DN	DASH	D	L
03310-03	5	3	21	23
03310-04	6	4	23	30.5
03310-05	8	5	24	30
03310-06	10	6	26	32
03310-08	13	8	29	34
03310-10	16	10	33	37
03310-12	19	12	37	42
03310-16	25	16	46	51
03310-20	32	20	59	59



PART NO. : 00TF0



NO-SKIVE FERRULE FOR TEFLON HOSE

PART NO.	HOSE BORE		DIMENSIONS
	DN	DASH	D	L
00TF0-02	4	2	9.5	14.3
00TF0-03	5	3	11.9	27.5
00TF0-04	6	4	14.2	30.7
00TF0-05	8	5	16	30.6
00TF0-06	10	6	19	32.1
00TF0-08	12	8	23.8	34.3
00TF0-10	16	10	27	37
00TF0-12	20	12	30.2	42.8
00TF0-14	22	14	33.4	42.7
00TF0-16	25	16	36.5	50.8



PART NO. : 00621



INTERLOCK FERRULE FOR SAE 100 R13/R15 HOSE

INTERLOCK FERRULE FOR R13 HOSE
PART NO.	HOSE BORE		DIMENSIONS
	DN	DASH		L
00621-12	20	12		53
00621-16	25	16		66
00621-20	32	20		88.5
00621-24	38	24		102
00621-32	51	32		108

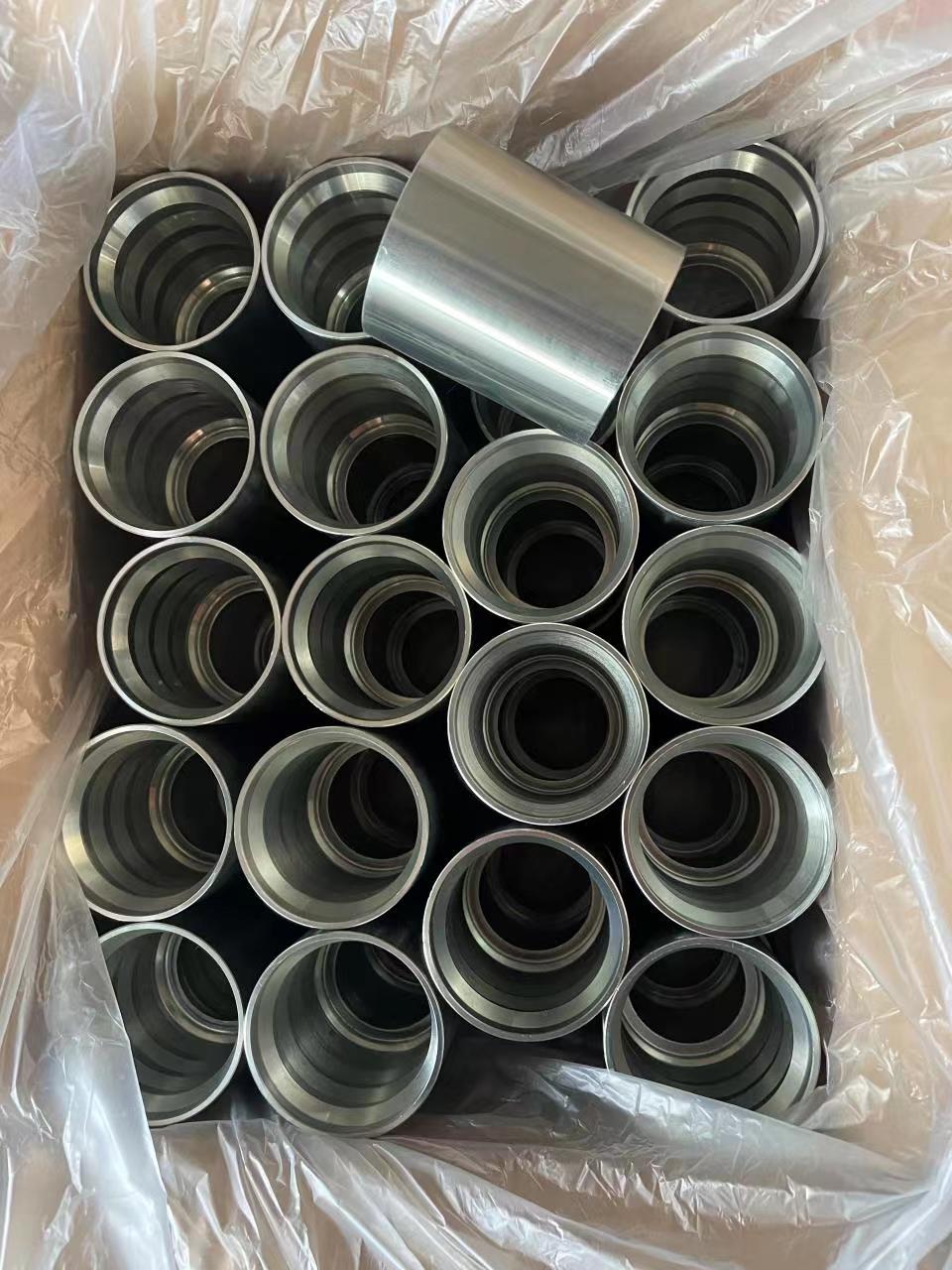

Product Show



Our Certificates Show
