Description

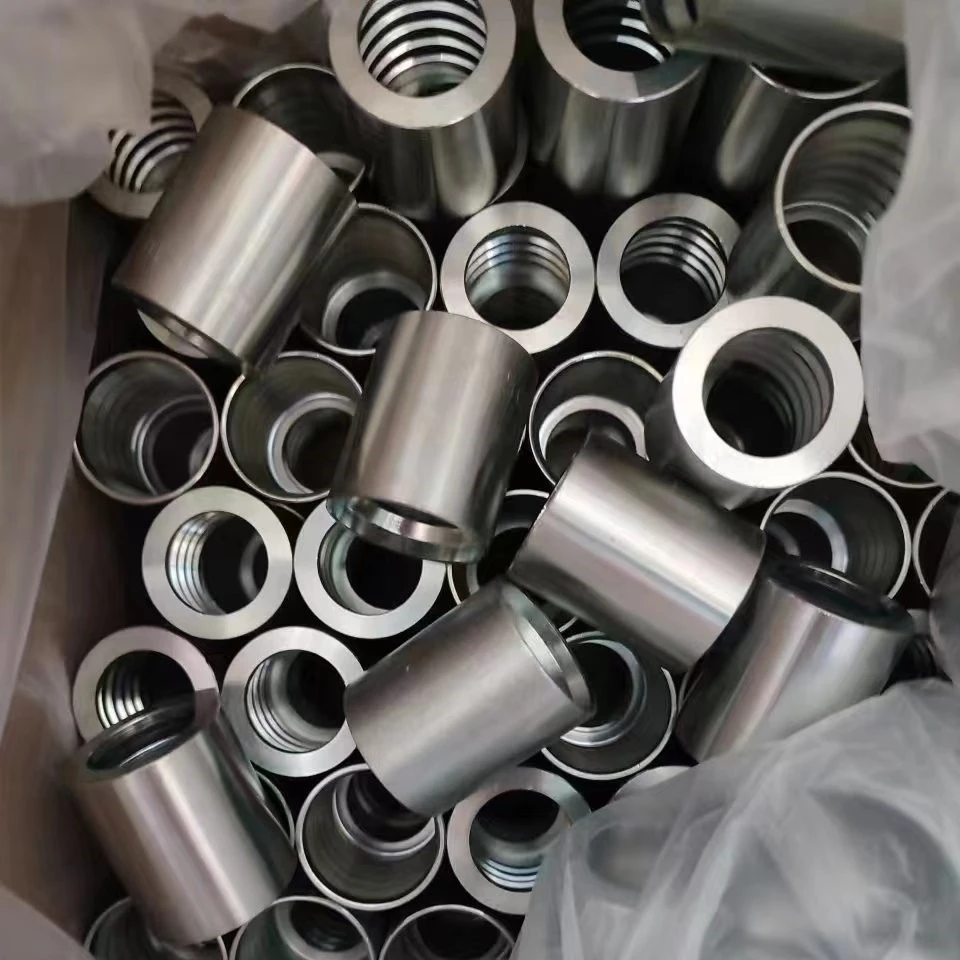

00110 NON SKIVE FERRULE FOR 1-WIRE HOSE
Features:
* Material: Carbon Steel; Stainless Steel
* Surface Treatment: Yellow Zinc-Plated
* Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
* Export Markets: Global
Specifications:
00110 FERRULE FOR SAE 100R1A/EN 853 1ST/1SN HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00110-03 | 5 | 3 | 17.5 | 27 |
| 00110-04 | 6 | 4 | 20.6 | 30 |
| 00110-05 | 8 | 5 | 20.8 | 31 |
| 00110-06 | 10 | 6 | 23.3 | 32 |
| 00110-08 | 12 | 8 | 27 | 34 |
| 00110-10 | 16 | 10 | 30 | 37 |
| 00110-12 | 20 | 12 | 34 | 43 |
| 00110-16 | 25 | 16 | 42.6 | 50 |
| 00110-20 | 32 | 20 | 52 | 59 |
| 00110-24 | 38 | 24 | 58 | 74 |
| 00110-32 | 51 | 32 | 72 | 78 |
00110-A FERRULE FOR SAE 100 R1AT/ EN853 1SN HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00110-03A | 5 | 3 | 12.5 | 23 |
| 00110-04A | 6 | 4 | 14.1 | 30.5 |
| 00110-05A | 8 | 5 | 15.7 | 30 |
| 00110-06A | 10 | 6 | 18.1 | 32 |
| 00110-08A | 12 | 8 | 21.5 | 34 |
| 00110-10A | 16 | 10 | 24.7 | 37 |
| 00110-12A | 20 | 12 | 28.6 | 42 |
| 00110-16A | 25 | 16 | 36.6 | 51 |
Additional Info.
Trademark: Accept customization
Packing: Box Inside & Wooden pallets
Origin: Qingdao, China
Production Capacity: 1000000

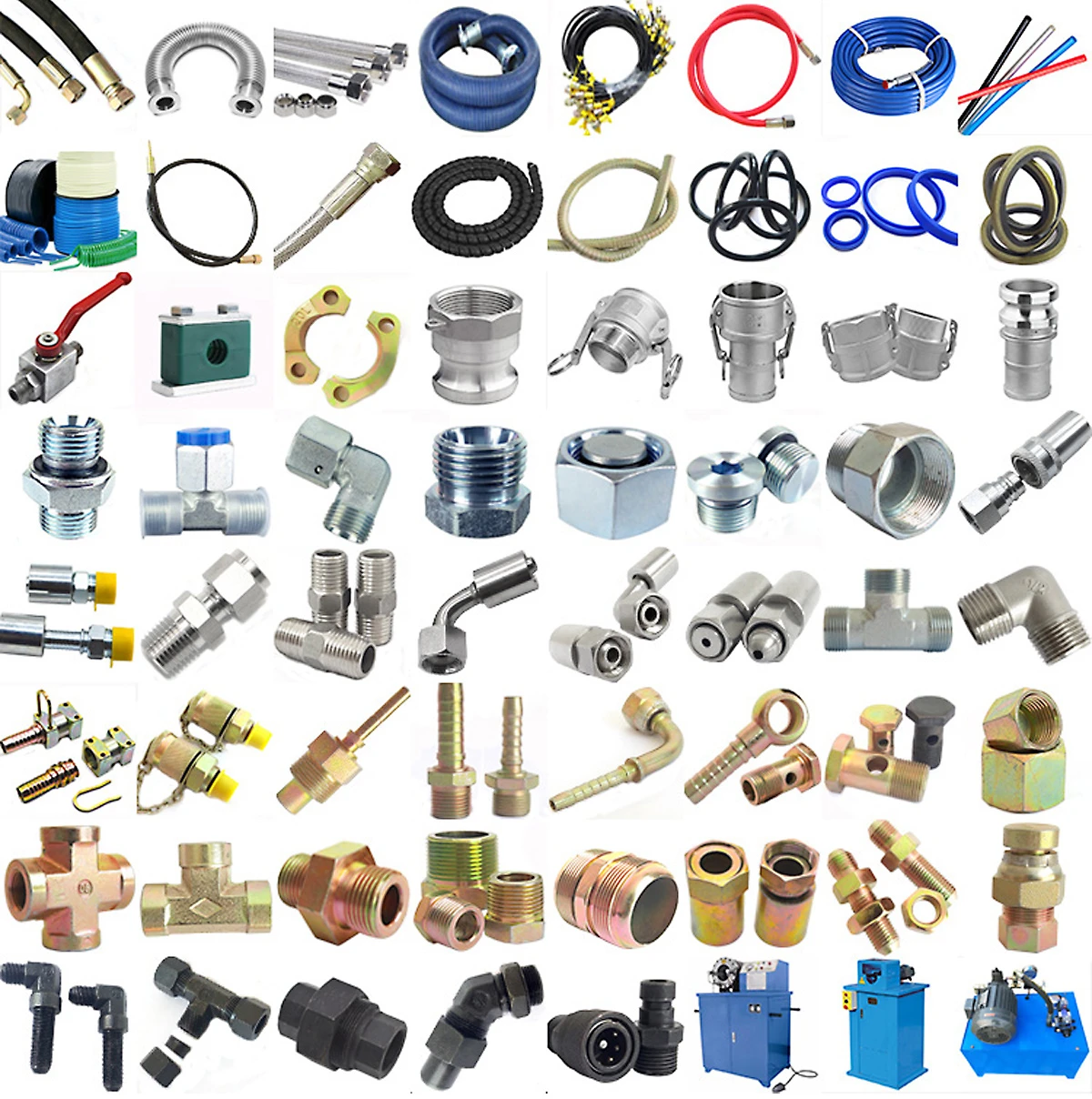

We are capable of manufacturing all kinds of Hose fittings, Coupling, Hydraulic adapter, Elbow, Tee and Flang Fittings etc, all the products are available in many different standards, such as DIN, SAE, ISO, BS, GB etc. We can also produce them according to customer's drawings and samples.
