Description

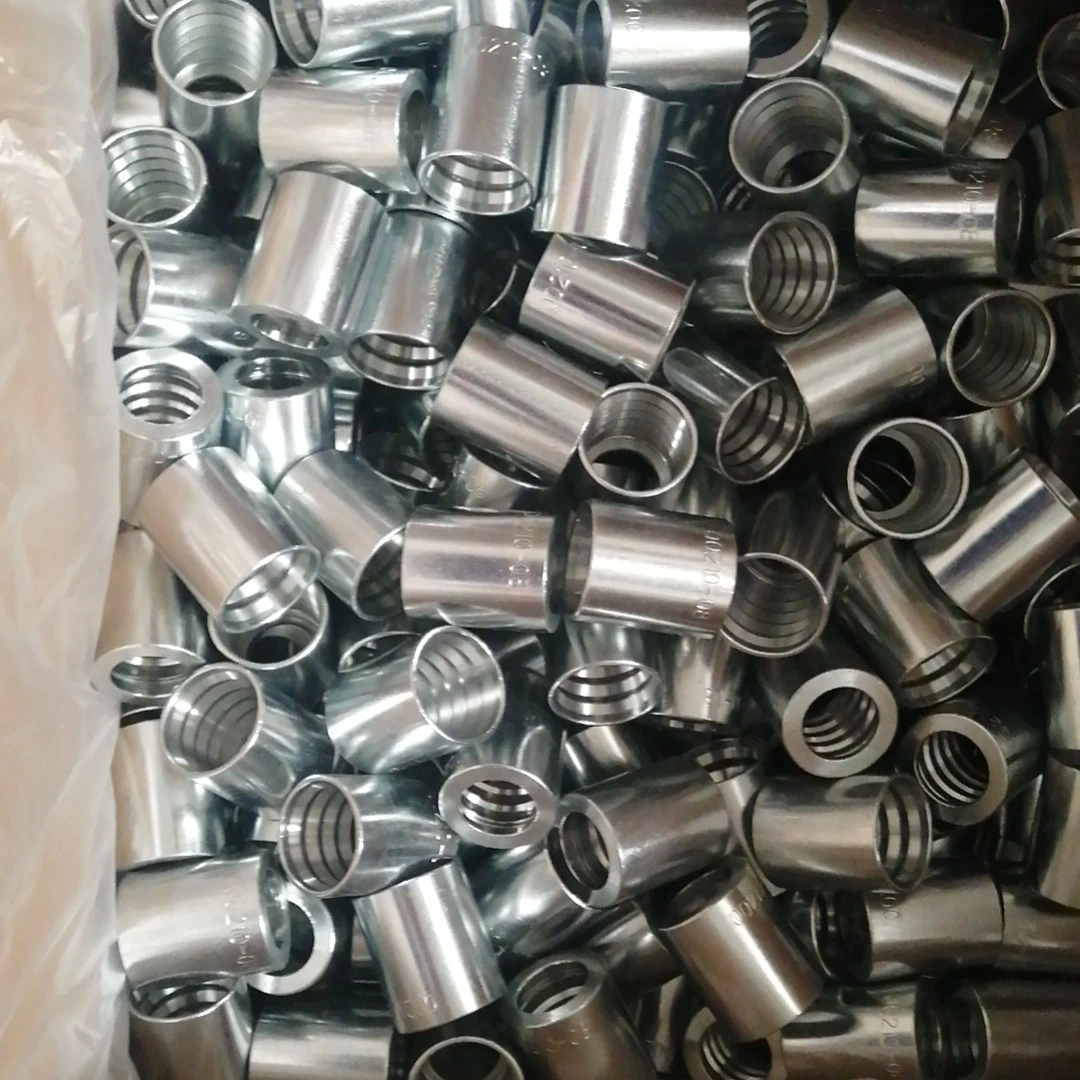

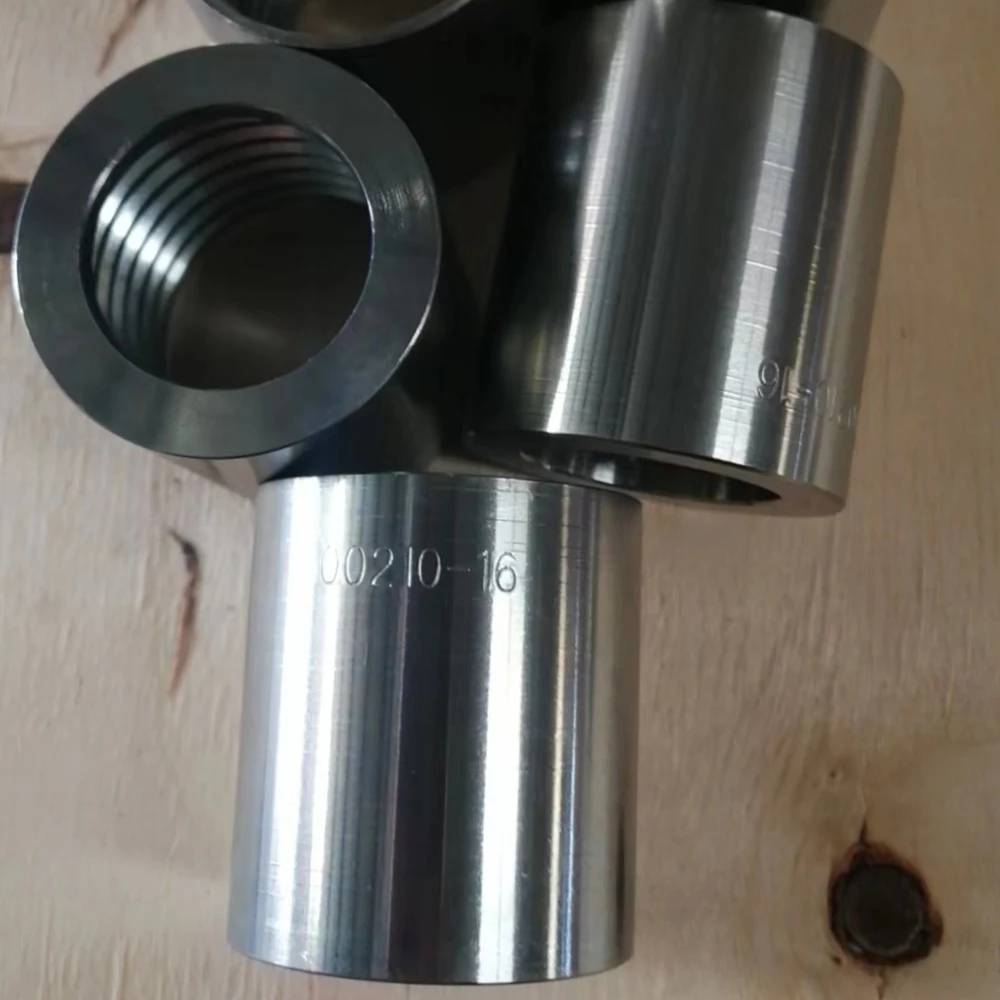

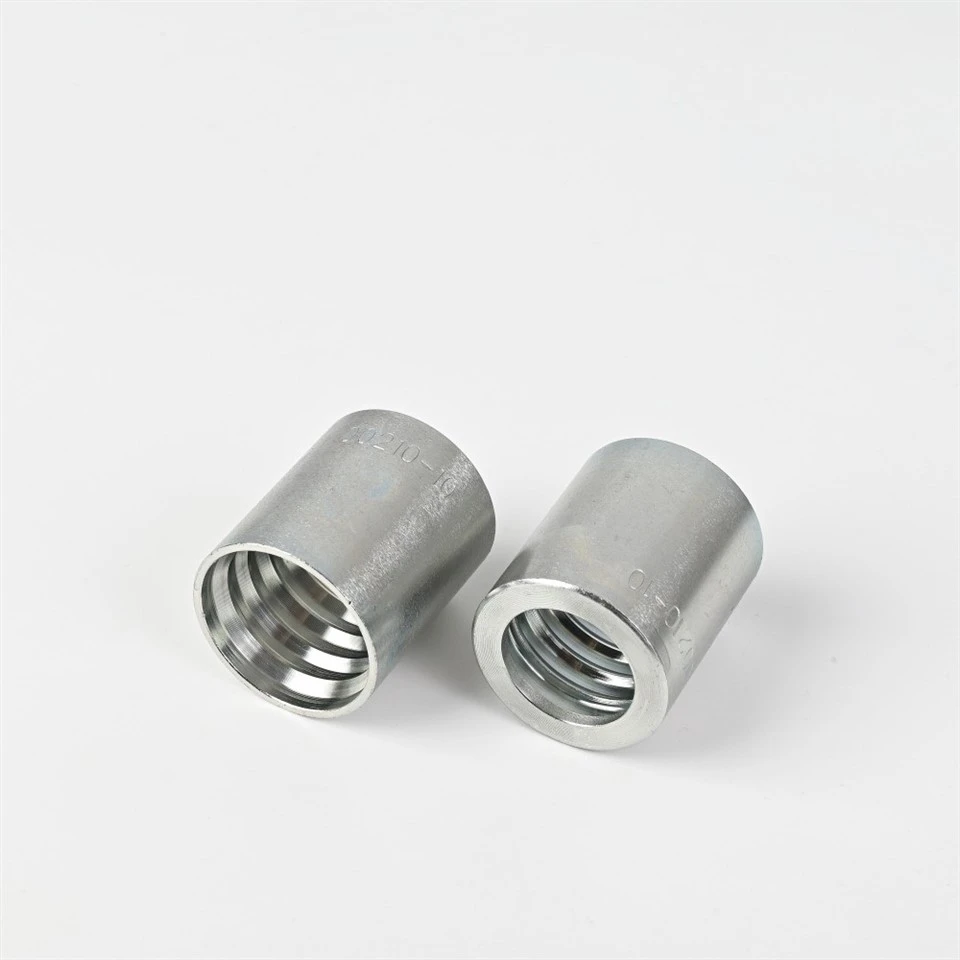

00210 FERRULE FOR SAE 100R2AT/EN 853 2SN HOSE
Part No.: 00210
Features:
* Material: Carbon Steel; Stainless Steel
* Surface Treatment: Yellow Zinc-Plated
* Salt Spray Test: 96h
* Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
* Export Markets: Global
Specifications:
00210 NON SKIVE FERRULE FOR 2- WIRE HOSE
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 00210-03 | 5 | 3 | 20.6 | 27 |
| 00210-04 | 6 | 4 | 22.2 | 30 |
| 00210-05 | 8 | 5 | 23 | 31 |
| 00210-06 | 10 | 6 | 25 | 32 |
| 00210-08 | 12 | 8 | 28.3 | 34 |
| 00210-10 | 16 | 10 | 31.5 | 37 |
| 00210-12 | 20 | 12 | 35.5 | 43 |
| 00210-16 | 25 | 16 | 45 | 50 |
| 00210-20 | 32 | 20 | 55 | 59 |
| 00210-24 | 38 | 24 | 62.5 | 74 |
| 00210-32 | 51 | 32 | 75.5 | 78 |
Additional Info.
Trademark: Accept customization
Packing: Box Inside & Wooden pallets
Origin: Qingdao, China
Production Capacity: 1000000
Trade Terms: FOB, CFR, CIF
Product Show:
Hot Tags: 00210 no-skive ferrule, China 00210 no-skive ferrule manufacturers, suppliers, factory
