Description

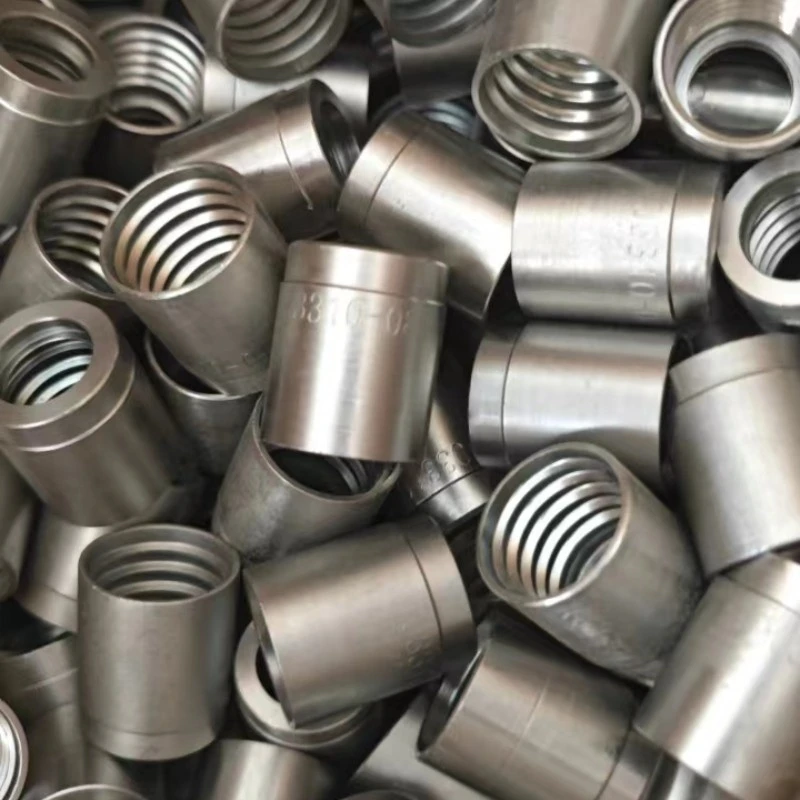

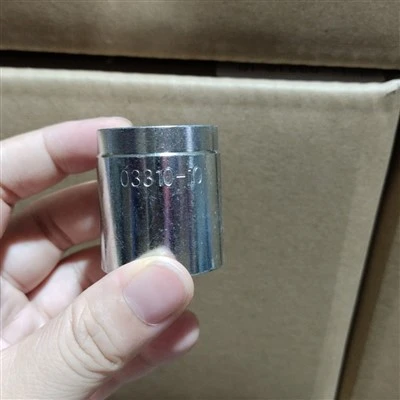

Part No.: 00310
Description: NON SKIVE FERRULE FOR HOSE R1AT/ 1SN/ R2AT/ 2SN
Features:
* Material: Carbon Steel; Stainless Steel
* Surface Treatment: Cr3+
* Salt Spray Test: 96h
Specifications:
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | D | L | |
| 03310-03 | 5 | 3 | 21 | 23 |
| 03310-04 | 6 | 4 | 23 | 30.5 |
| 03310-05 | 8 | 5 | 24 | 30 |
| 03310-06 | 10 | 6 | 26 | 32 |
| 03310-08 | 13 | 8 | 29 | 34 |
| 03310-10 | 16 | 10 | 33 | 37 |
| 03310-12 | 19 | 12 | 37 | 42 |
| 03310-16 | 25 | 16 | 46 | 51 |
| 03310-20 | 32 | 20 | 59 | 59 |
Performance:
Ferrules play a critical role in maintaining the integrity of hydraulic connections. During crimping, they compress uniformly around the hose and fitting, creating a leak-proof, high-pressure seal capable of withstanding extreme operating pressures (up to 6,000 PSI or higher, depending on specifications). Their robust construction ensures resistance to vibration, abrasion, and temperature fluctuations (-40°F to +250°F). Properly crimped ferrules prevent hose blowouts and fluid leakage, ensuring long-term reliability in dynamic applications.
About Our Company:
Hot Tags: 00310 hydraulic ferrule, China 00310 hydraulic ferrule manufacturers, suppliers, factory
