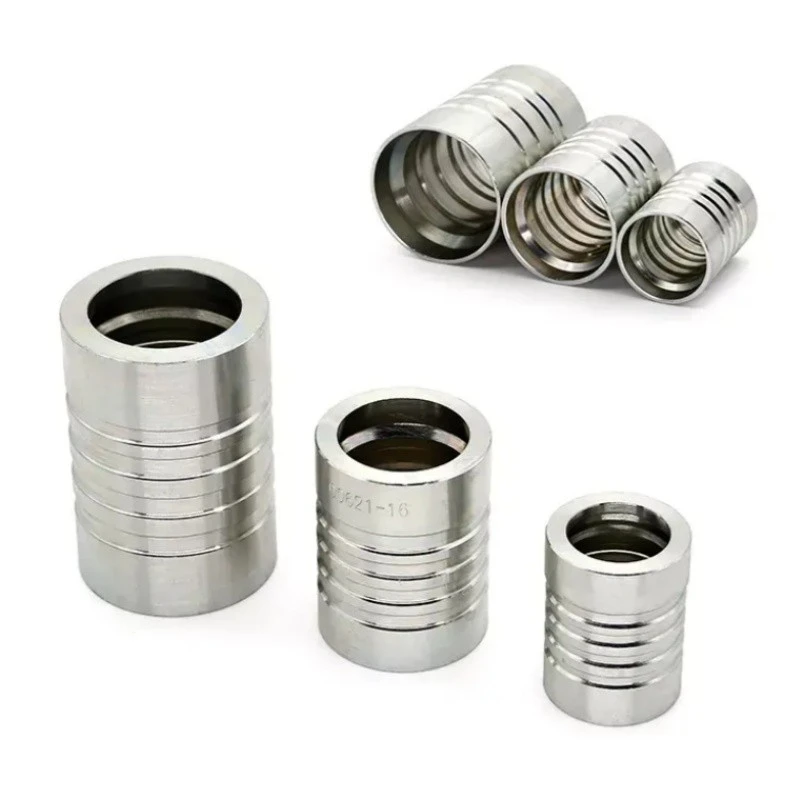

00621 Interlock Ferrule For SAE 100 R13/R15 HOSE
INTERLOCK FERRULE FOR GB/T 10544 R13/ SAE 100 R13/ EN856 R13 HOSE
Description
INTERLOCK FERRULE FOR SAE 100 R13/R15 HOSE
Part No.: 00621
Features:
* Material: Carbon Steel; Stainless Steel
* Surface Treatment: Cr3+; Yellow Zinc-Plated
* Standards: Eaton, DIN, ISO, SAE, JIC or As customers' drawing
* Salt Spray Test: 96h
Specifications:
INTERLOCK FERRULE FOR R13/R15 HOSE
| INTERLOCK FERRULE FOR R13 HOSE | ||||
| PART NO. | HOSE BORE | DIMENSIONS | ||
| DN | DASH | L | ||
| 00621-12 | 20 | 12 | 53 | |
| 00621-16 | 25 | 16 | 66 | |
| 00621-20 | 32 | 20 | 88.5 | |
| 00621-24 | 38 | 24 | 102 | |
| 00621-32 | 51 | 32 | 108 | |
| INTERLOCK FERRULE FOR R15 HOSE | ||||
| 00621-06 | 10 | 06 | 40 | |
| 00621-08 | 12 | 08 | 42 | |
| 00621-12 | 20 | 12 | 53 | |
| 00621-16 | 25 | 16 | 66 | |
| 00621-20 | 32 | 20 | 88.8 | |
| 00621-24 | 38 | 24 | 102 | |
